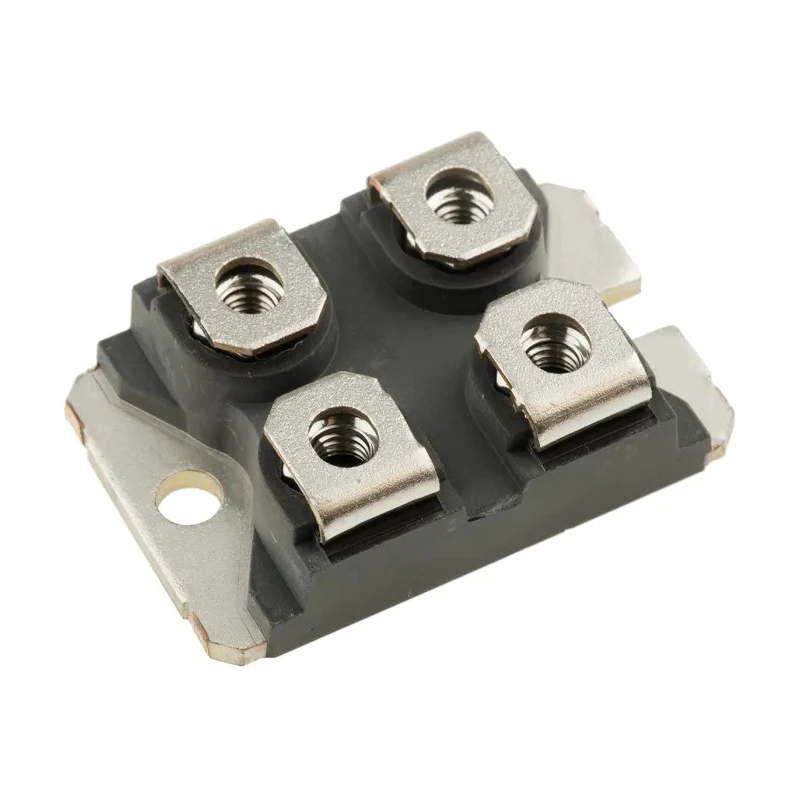

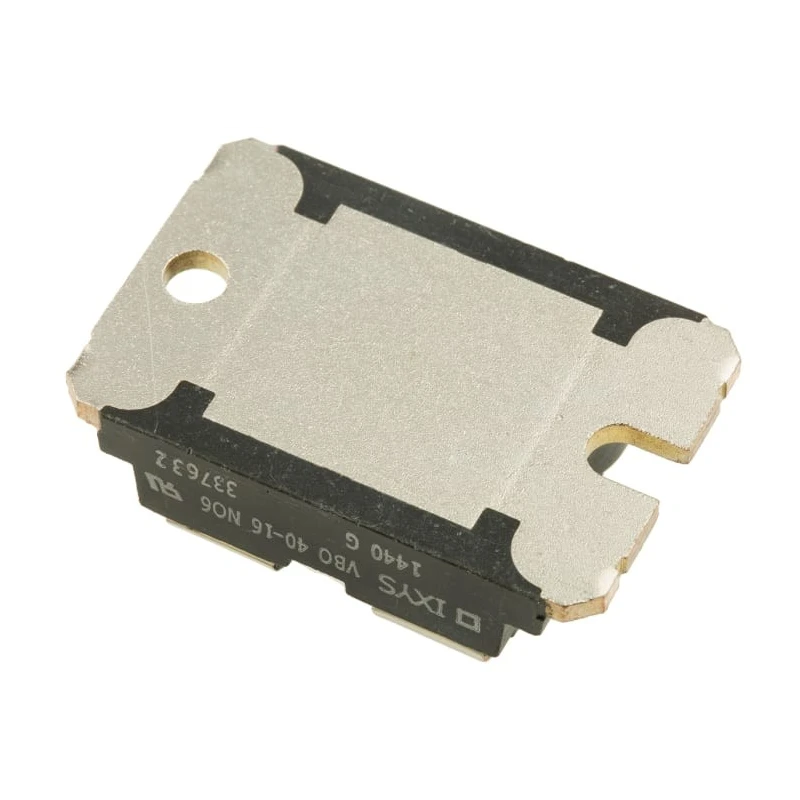

IXYS Bridge Rectifier Module Panel Mount SOT-227 Package Single Phase 4-Pin 1600 V 40 A Forward Current 320 A VBO40-16NO6

IXYS VBO40-16NO6 bridge rectifier module is a high-performance semiconductor device intended for use in power electronics. This single-phase Bridge Rectifier Module uses a panel mount design and is housed in a SOT-227 package, providing dependable operation in converting alternating current (AC) to direct current (DC).

With a peak reverse repetitive voltage of 1600 V and a forward current of 40 A, the module supports surge currents up to 320 A, accommodating demanding power requirements. The device benefits from direct copper bonding (DCB) technology which enhances thermal performance and reliability, ensuring it operates efficiently at temperatures up to 150°C and as low as -40°C.

This bridge rectifier exhibits a very low forward voltage drop of 1.15 V along with a minimal leakage current, reducing power dissipation and improving energy efficiency. It features four pins and screw terminals for robust electrical and mechanical connections, with compact physical dimensions of 38.3 mm length, 25.07 mm width, and 9.6 mm height, making it suitable for integration into various industrial equipment.

Direct copper bonding construction improves thermal management. Very low forward voltage drop and leakage current enhance efficiency. Wide operating temperature range from -40°C to 150°C supports harsh environments. 4-pin configuration with screw terminals ensures strong mounting and connectivity.

Compact size allows easy integration into power modules and systems. Designed to convert AC input voltage to a stable DC output voltage. Reliable peak surge current rating of 320 A for transient conditions. Ideal for power supplies, motor drives, industrial machinery, and HVAC applications.

Complies with industrial standards although no specific certifications are listed. Low peak reverse current of 300 µA reduces energy losses and improves module lifespan.

This module is a valuable component for industrial, manufacturing, HVAC, and power electronics sectors requiring robust and efficient rectification of AC to DC power. It is recommended for system designers looking for dependable, high-current bridge rectifiers with improved thermal performance. Browse EnvMart's offerings for IXYS semiconductor modules and related components.
