IXYS Thyristor SCR 1600 V 48 A Rated Current 100 mA Gate Trigger Current 560 A Surge Current CS45-16IO1

IXYS CS45-16IO1 is a high-performance silicon-controlled rectifier (SCR) thyristor tailored for industrial power control applications. Rated with a repetitive peak reverse voltage of 1600 V and capable of conducting an average on-state current of 48 A, this device is well suited for use in environments requiring robust switching capabilities.

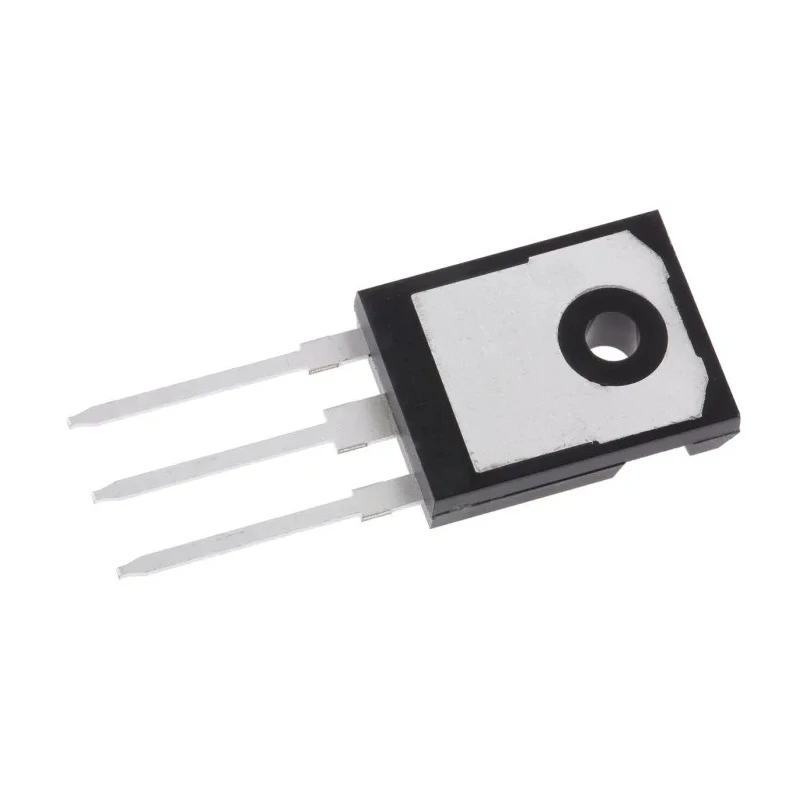

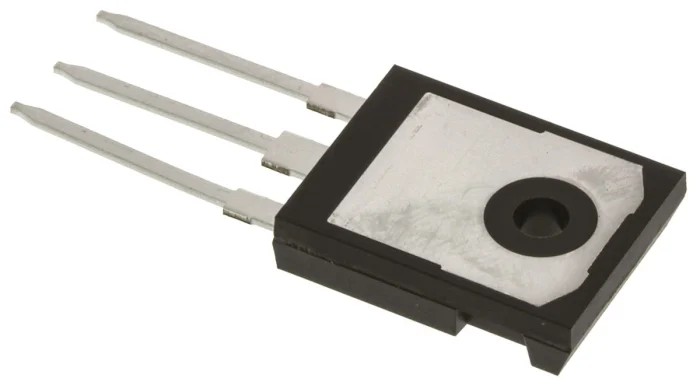

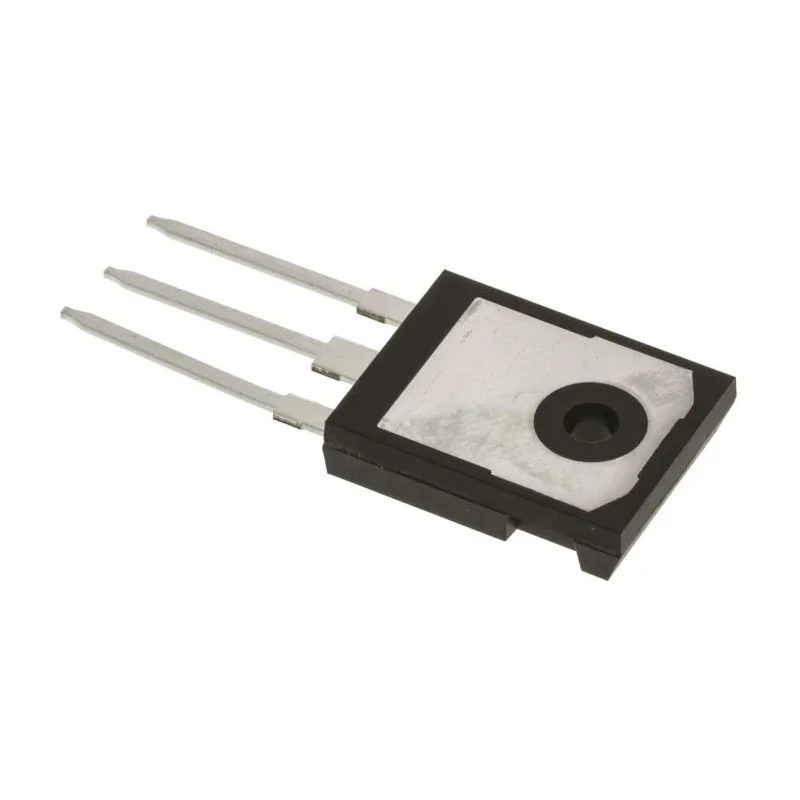

Encapsulated in a TO-247 package designed for through-hole mounting, the thyristor provides excellent thermal performance and mechanical stability. It operates safely within a temperature range of -40°C to 140°C, making it reliable for demanding industrial conditions.

The device features a maximum gate trigger current of 100 mA and gate trigger voltage of 1.5 V, allowing precise activation control. Its surge current rating of 560 A enables it to handle transient current spikes effectively.

With three pins, standard for SCRs, the CS45-16IO1 facilitates easy integration into power electronic circuits such as battery chargers, welders, plating equipment, regulated power supplies, and speed control circuits. The peak on-state voltage of 1.64 V ensures efficient conduction with minimized losses.

Repetitive peak reverse voltage: 1600 V. Rated average on-state current: 48 A. Surge current rating: 560 A. Gate triggering current: 100 mA. Maximum operating temperature: 140°C. Package: TO-247, through hole mount. Pin count: 3.

Peak on-state voltage: 1.64 V. Minimum operating temperature: -40°C. Maximum holding current: 100 mA.

This device is ideal for use in industrial, manufacturing, HVAC, and power supply applications requiring reliable phase control and switching. Its robust construction and electrical characteristics ensure longevity and consistent performance in harsh operating conditions.
