Vishay Phase Control SCR 1600 V, 55 A, 150 mA, 600 A Surge Current, TO-247AC Package VS-40TPS16-M3

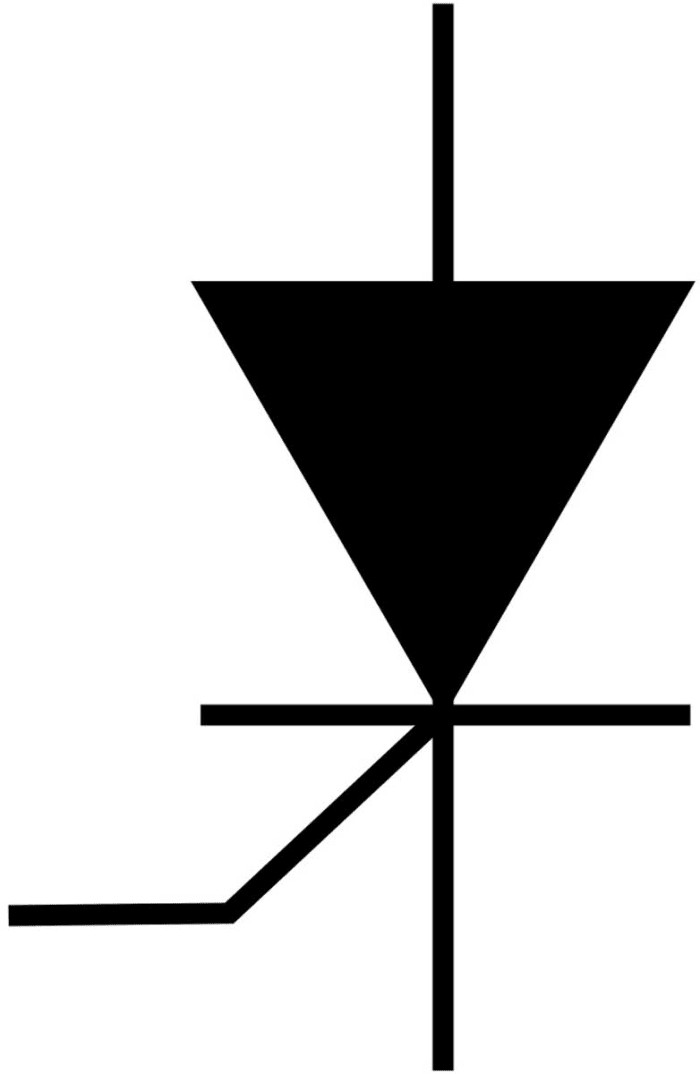

Vishay VS-40TPS16-M3 is a high-performance Phase Control Silicon Controlled Rectifier (SCR) designed for industrial and electronic applications requiring precise power switching and control. With a rated average on-state current of 55 A and a repetitive peak reverse voltage of 1600 V, this device supports demanding electrical environments including battery chargers, welders, plating equipment, regulated power supplies, and motor speed controllers.

The device is packaged in the popular TO-247AC form factor with through-hole mounting for easy integration into existing systems. The SCR features a maximum gate trigger current of 150 mA and a maximum holding current of 200 mA, enabling reliable switching and bistable control function in circuits. Its wide operating temperature range from -40°C to 125°C ensures performance stability under harsh industrial conditions.

Designed with a peak on-state voltage of 1.85 V and a surge current rating of 600 A, the VS-40TPS16-M3 provides robust handling of transient overload surges and efficient power conduction during switching. The encapsulated module includes an electrically isolated base plate, improving thermal management and electrical safety during operation.

This Vishay SCR complies with JEDEC JESD47 standards for quality and performance and is manufactured to exacting semiconductor standards. It is particularly suited for applications such as power control in battery chargers, welding machines, temperature regulation circuits, and speed control systems in industrial, laboratory, and manufacturing environments.

Rated average on-state current 55 A for continuous operation. Repetitive peak reverse voltage up to 1600 V for voltage withstand. Surge current rating of 600 A for transient conditions. TO-247AC package enabling secure through-hole mounting.

Low maximum gate trigger current of 150 mA for precise activation. Wide operating temperature range from -40°C to 125°C for reliability. Peak on-state voltage of 1.85 V offering efficient conduction. Electrically isolated base plate for safety and enhanced thermal dissipation.

Compliant with JEDEC JESD47 standard for semiconductor devices. Ideal for industrial power control, battery charging, welding, and speed control.

This Vishay VS-40TPS16-M3 Phase Control SCR is a vital component for industrial power electronics where controlled rectification and robust switching capability with high current and voltage ratings are required. Explore more power semiconductor devices and components in the Electronics & Electricals category on EnvMart for your electronic design and manufacturing needs.
