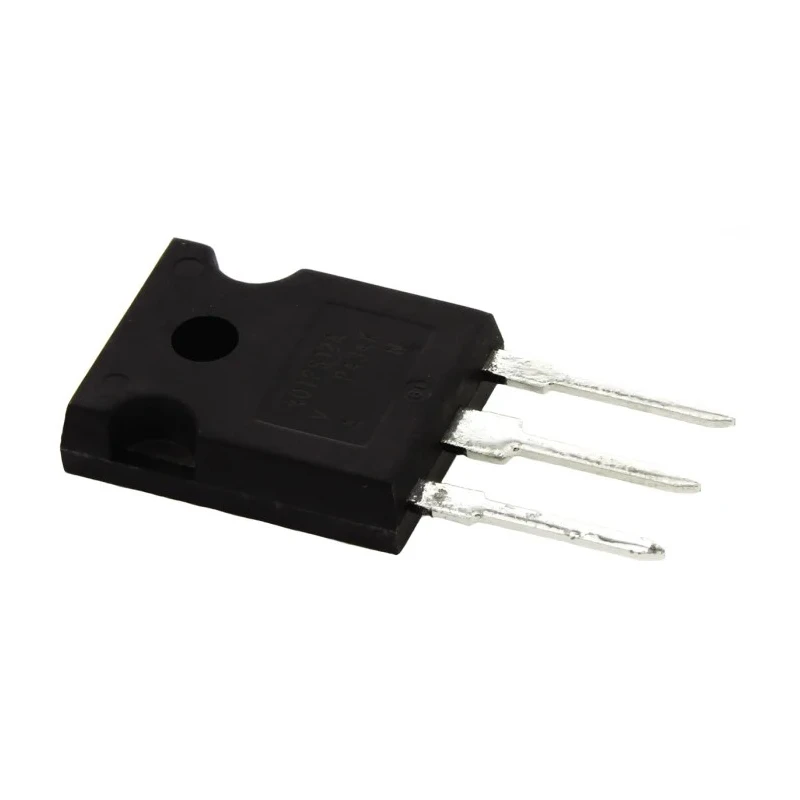

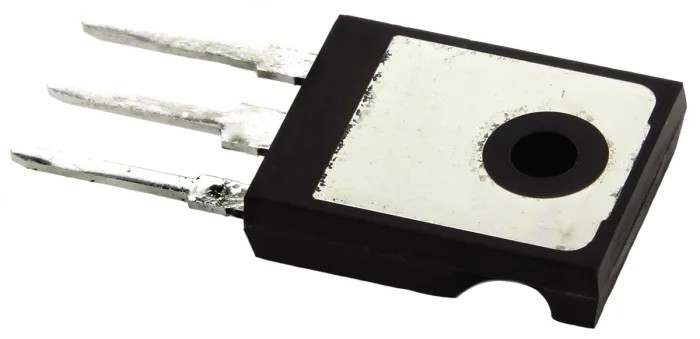

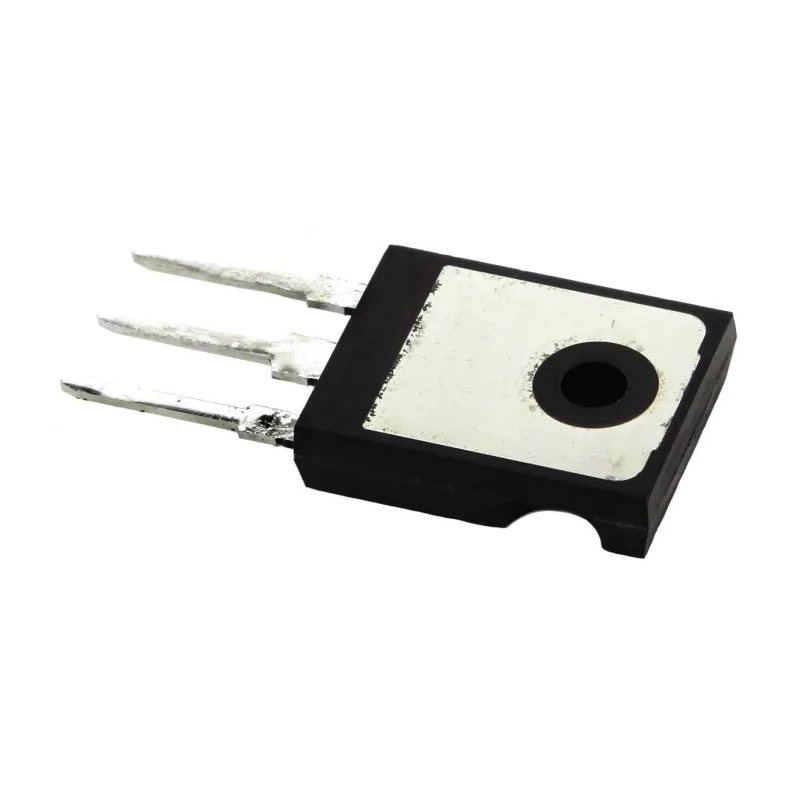

Vishay Thyristor SCR TO-247 Package 1200 V Voltage 35 A Rated Average On-State Current VS-40TPS12A-M3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-40TPS12A-M3 |
| Mount Type | Through Hole |
| Series | VS-40TPS-M3 |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 35A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 1200V |
| Surge Current Rating | 600A |
| Maximum Gate Trigger Current Igt | 40mA |
| Maximum Holding Current Ih | 150mA |
| Maximum Gate Trigger Voltage Vgt | 2.5V |
| Peak On-State Voltage | 1.85V |
| Repetitive Peak Off-State Current | 0.5mA |
Key Features
- Rated average on-state current is 35 A for robust conduction.
- Repetitive peak reverse voltage of 1200 V ensures high voltage tolerance.
- Surge current rating is 600 A for transient load handling.
- Package type is TO-247 with through-hole mount suitable for assembly.
- Maximum gate trigger current is 40 mA for efficient triggering.
- Maximum gate trigger voltage is 2.5 V to ensure safe gate drive.
- Maximum operating temperature rated at 125°C for reliability in harsh environments.
- Minimum operating temperature is -40°C enabling wide temperature range usage.
Product Description

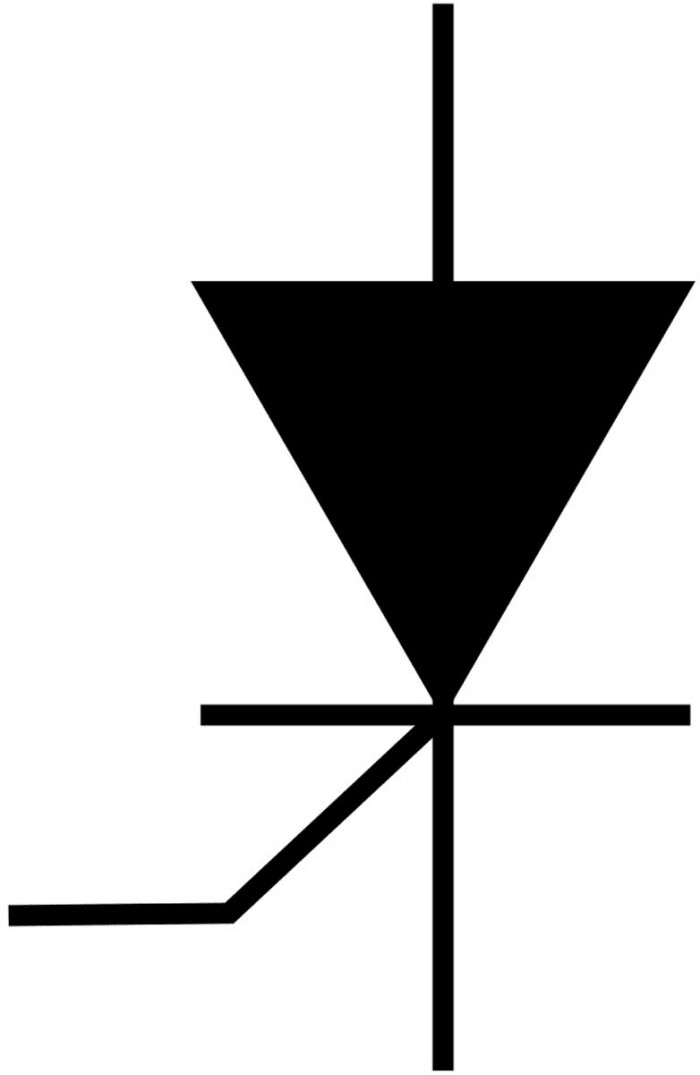

Vishay VS-40TPS12A-M3 is a silicon-controlled rectifier (SCR) thyristor designed to handle high voltage and current in power electronics applications. This device features a TO-247 package with a through-hole mount, facilitating easy integration on printed circuit boards. It is specifically engineered for phase control applications such as battery chargers, welders, plating equipment, regulated power supplies, and temperature or speed control circuits.
The thyristor's rated average on-state current of 35 A and repetitive peak reverse voltage of 1200 V make it ideal for controlling large electrical loads with reliability. With a surge current rating of 600 A, it can withstand transient high current conditions without damage. The device operates over an ambient temperature range from -40°C to 125°C, ensuring stable performance in demanding environments.
Its gate characteristics include a maximum gate trigger current of 40 mA and a maximum gate trigger voltage of 2.5 V, allowing precise control and triggering. The peak on-state voltage of 1.85 V helps in maintaining efficiency while conducting currents. The 3-pin configuration corresponds to standard SCR pinout conventions.
Built without recognized standards or automotive certifications, this model belongs to Vishay's VS-40TPS-M3 series. The device is suitable for industrial, manufacturing, laboratory, and HVAC power control applications.
Rated average on-state current is 35 A for robust conduction. Repetitive peak reverse voltage of 1200 V ensures high voltage tolerance. Surge current rating is 600 A for transient load handling. Package type is TO-247 with through-hole mount suitable for assembly.
Maximum gate trigger current is 40 mA for efficient triggering. Maximum gate trigger voltage is 2.5 V to ensure safe gate drive. Maximum operating temperature rated at 125°C for reliability in harsh environments. Minimum operating temperature is -40°C enabling wide temperature range usage.
Pin count is 3, standard for SCR devices. Peak on-state voltage is low at 1.85 V improving efficiency. Explore more Vishay semiconductor products and power electronics components at EnvMart for robust industrial solutions.
Explore more products in our Thyristors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current for this model is 35 A, allowing it to handle robust conduction.
It has a surge current rating of 600 A, which enables it to handle transient load conditions effectively.
This model uses a TO-247 package type, designed for through-hole mounting, suitable for easy assembly.
The maximum gate trigger current is 40 mA, facilitating efficient triggering for operation.
This unit features a 3-pin configuration, which corresponds to standard SCR pinout conventions.
The peak on-state voltage is 1.85 V, which helps maintain efficiency during operation.
The maximum holding current is 150 mA, which is relevant for maintaining conduction in specific applications.
The minimum operating temperature is -40°C, enabling usage in a wide range of environments.
This model is built without recognized standards or automotive certifications, indicating it may be intended for specific industrial applications.
