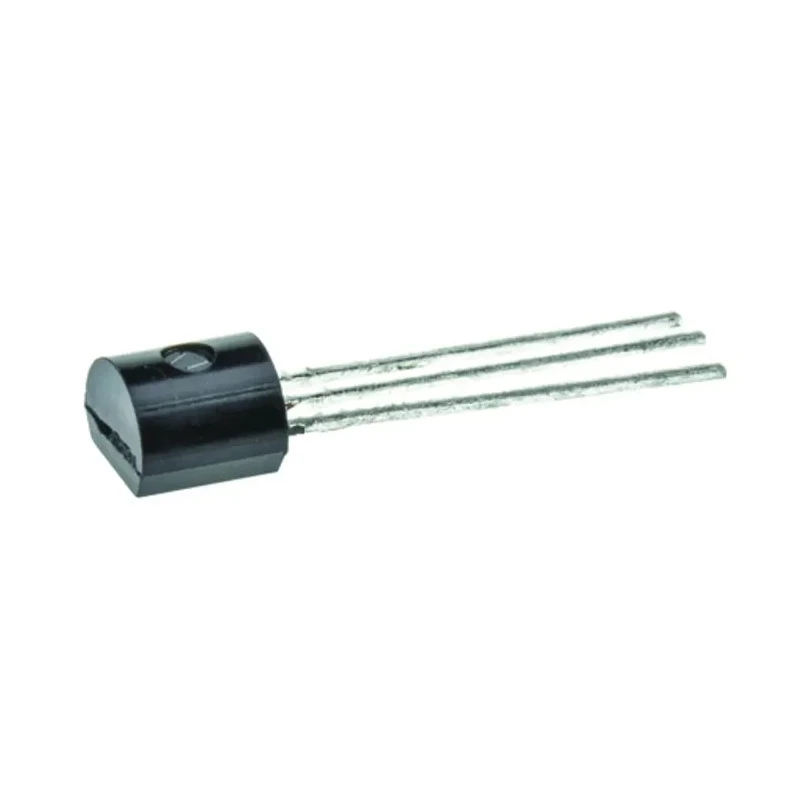

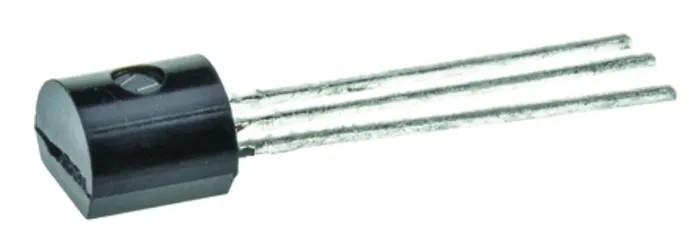

STMicroelectronics Thyristor 600 V 8 A TO-92 3-Pin Sensitive Gate P0118MA 2AL3
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | P0118MA 2AL3 |
| Mount Type | Through Hole |
| Series | P011xx SCR |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 0.5A |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 8A |
| Maximum Gate Trigger Current Igt | 5μA |
| Maximum Holding Current Ih | 5mA |
| Maximum Gate Trigger Voltage Vgt | 0.8V |
| Peak On-State Voltage | 1.95V |
| Repetitive Peak Off-State Current | 100μA |
Key Features
- Rated average on-state current of 0.5 amperes ensures reliable switching performance.
- Designed for through-hole mounting with a TO-92 package type for easy PCB integration.
- Repetitive peak reverse voltage rating of 600 volts supports robust power control applications.
- Maximum gate trigger current of 5 microamperes offers sensitive gate triggering capabilities.
- Maximum operating temperature of 125 degrees Celsius allows use in high-temperature environments.
- Suitable for applications such as ground fault circuit interrupters and residual current circuit breakers.
- Features low maximum gate trigger voltage of 0.8 volts for efficient triggering.
- Offers a surge current rating of 8 amperes to handle transient current pulses.
Product Description
STMicroelectronics P0118MA 2AL3 is a sensitive gate thyristor designed for reliable power switching and control applications. This silicon controlled rectifier (SCR) is housed in a TO-92 3-pin through-hole package, making it suitable for a variety of electronic circuitry requiring low to medium power control.
The device features a rated average on-state current (Irms) of 0.5 amperes and a repetitive peak reverse voltage (VDRM) of 600 volts, enabling it to switch moderately high voltages with precision. Its maximum gate trigger current is a low 5 microamperes, allowing sensitive gate triggering even when limited gate current is available.
This thyristor is designed to operate safely at temperatures up to 125 degrees Celsius, ensuring stable performance under demanding environmental conditions. Its maximum gate trigger voltage of 0.8 volts and peak on-state voltage of 1.95 volts contribute to efficient operation with minimal power loss.
Typical applications for the P0118MA 2AL3 include ground fault circuit interrupters (GFCIs) and residual current circuit breakers (RCCBs), where highly sensitive and reliable gate triggering is essential for protective circuitry.
The surge current rating of 8 amperes safeguards the device against transient current peaks, enhancing durability and longevity in industrial and commercial electronic systems. Rated average on-state current of 0.5 amperes.
Repetitive peak reverse voltage of 600 volts. Low maximum gate trigger current of 5 microamperes. Operating temperature range up to 125 degrees Celsius. TO-92 3-pin package for through-hole mounting. Surge current rating of 8 amperes for transient tolerance.
Typical use in ground fault detection and circuit protection.
STMicroelectronics supplies a wide range of sensitive gate Thyristors suitable for power switching and control in industrial, electrical, HVAC, and automation applications. Explore more semiconductor devices and power components in the EnvMart catalog for reliable and high-performance electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current for this thyristor is 0.5 amperes.
This model can operate safely at a maximum temperature of 125 degrees Celsius.
It is housed in a TO-92 3-pin package, designed for through-hole mounting.
The surge current rating is 8 amperes, which helps it manage transient current pulses effectively.
The maximum gate trigger current is 5 microamperes, allowing for sensitive gate triggering.
The maximum gate trigger voltage for this model is 0.8 volts, contributing to efficient triggering.
The peak on-state voltage is 1.95 volts, which aids in minimizing power loss during operation.
The maximum holding current is 5 milliamperes.
The TO-92 package has a pin count of 3.
The repetitive peak off-state current rating is 100 microamperes.
