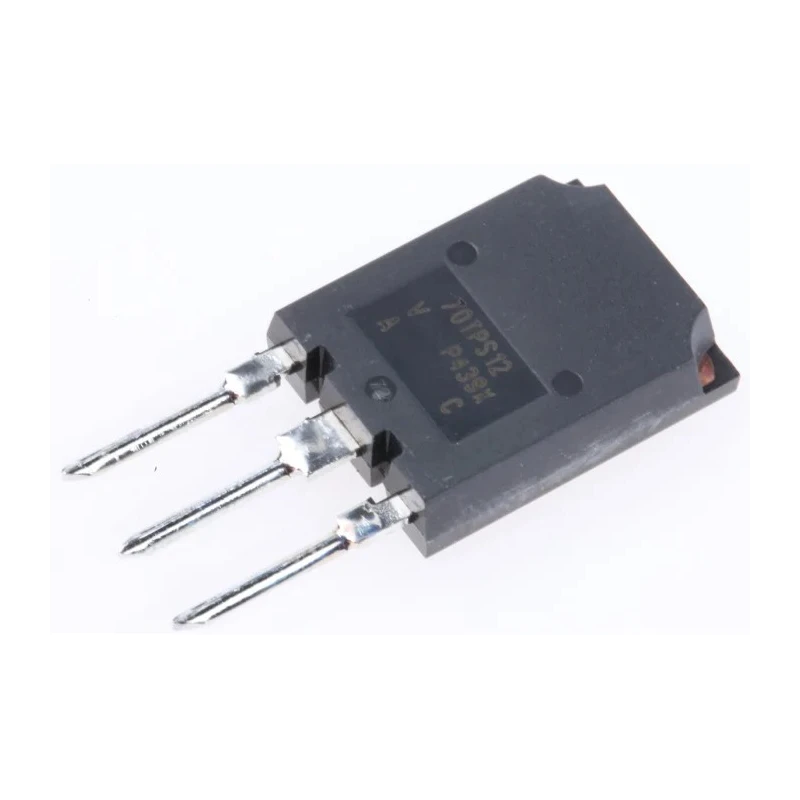

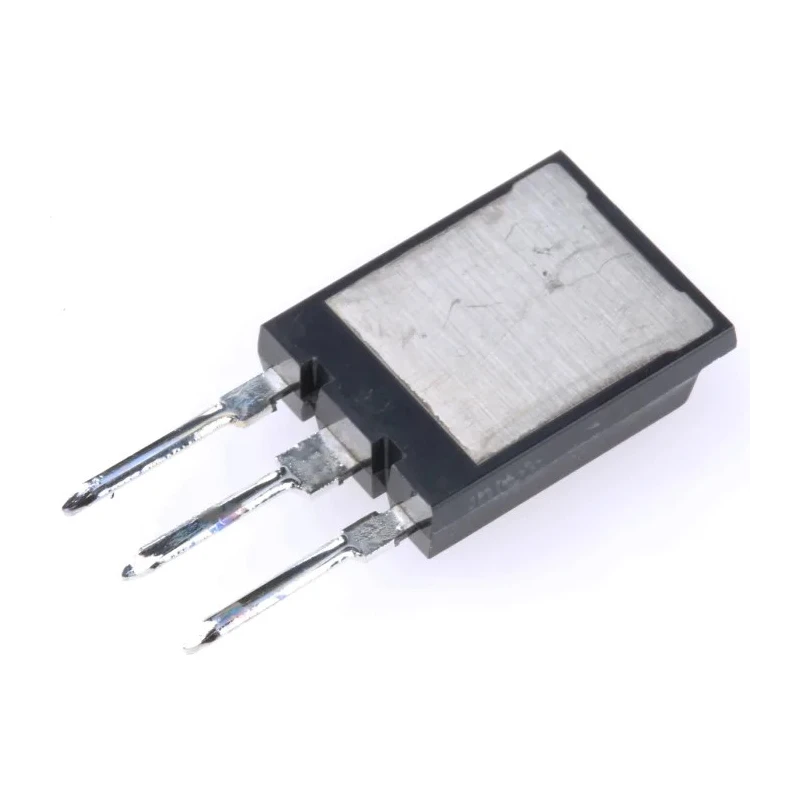

Vishay Phase Control SCR Thyristor 1600 V 75 A 100 mA Gate Trigger Current VS-70TPS12PBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-70TPS12PBF |
| Mount Type | Through Hole |
| Series | VS-70TPS..PbF High Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | Super-247 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | JEDEC-JESD47 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 700-5591Brand: VishayManufacturers Part No.: VS-70TPS12PBF |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 75A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 1600V |
| Surge Current Rating | 1.4kA |
| Maximum Gate Trigger Current Igt | 100mA |
| Maximum Holding Current Ih | 200mA |
| Maximum Gate Trigger Voltage Vgt | 1.5V |
| Peak On-State Voltage | 1.4V |
| Repetitive Peak Off-State Current | 1mA |
Key Features
- Rated average on-state current Irms is 75 A for high power applications.
- Repetitive peak reverse voltage (VDRM) reaches up to 1600 V ensuring voltage endurance.
- Surge current rating is 1.4 kA for handling transient loads.
- Maximum gate trigger current of 100 mA facilitates sensitive gate triggering.
- Package type is Super-247, suitable for through-hole mounting.
- Maximum gate trigger voltage of 1.5 V enables stable triggering behavior.
- Operates reliably between -40°C and 125°C for diverse environments.
- Pin count is 3, compatible with standard thyristor circuits.
Product Description
Vishay VS-70TPS12PBF is a Phase Control Silicon Controlled Rectifier (SCR) Thyristor designed for industrial power control applications. This SCR features a high repetitive peak reverse voltage of 1600 V and a rated average on-state current of 75 A, making it suitable for demanding environments requiring robust switching performance.
The device is packaged in a Super-247 form factor and supports through-hole mounting, facilitating easy integration into existing power electronic assemblies. Its maximum surge current rating of 1.4 kA enables it to withstand transient overloads commonly found in welding equipment, battery chargers, and regulated power supplies.
This SCR assures sensitive and reliable triggering with a maximum gate trigger current of 100 mA and a low gate trigger voltage of 1.5 V. The maximum holding current is 200 mA, providing stable conduction once triggered. Operational temperature range spans -40°C to 125°C, ensuring dependable performance in harsh industrial or laboratory environments.
The device features 3 pins and meets JEDEC-JESD47 standards, reflecting its quality and reliability for critical applications. The repetitive peak off-state current is minimal at 1 mA, and the peak on-state voltage is 1.4 V, supporting efficient power management.
Rated average on-state current Irms: 75 A. Repetitive peak reverse voltage VDRM: 1600 V. Surge current rating: 1.4 kA. Maximum gate trigger current Igt: 100 mA. Package type: Super-247, through-hole mount. Operating temperature range: -40°C to 125°C.
Pin count: 3. Standards: JEDEC-JESD47. Maximum gate trigger voltage Vgt: 1.5 V. Maximum holding current Ih: 200 mA.
This SCR is ideal for industrial, laboratory, manufacturing, and HVAC applications demanding high reliability power control components such as battery chargers and welding machines.
Explore more advanced power electronic components and Thyristors at EnvMart for your critical industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum repetitive peak reverse voltage (VDRM) for this thyristor is 1600 V, ensuring it can handle high voltage applications effectively.
The rated average on-state current (Irms) for this model is 75 A, making it suitable for high power applications.
The surge current rating for the VS-70TPS12PBF is 1.4 kA, allowing it to manage transient loads effectively.
The maximum gate trigger current (Igt) for this thyristor is 100 mA, which facilitates sensitive gate triggering.
This model operates reliably within a temperature range of -40°C to 125°C, suitable for various environments.
The VS-70TPS12PBF is packaged in a Super-247 form factor and supports through-hole mounting for easy integration.
This thyristor features a pin count of 3, which is compatible with standard thyristor circuits.
The maximum holding current (Ih) for this SCR is 200 mA, ensuring stable conduction once triggered.
The peak on-state voltage for this thyristor is 1.4 V, supporting efficient power management.
The VS-70TPS12PBF meets JEDEC-JESD47 standards, reflecting its quality and reliability for critical applications.
This SCR is ideal for industrial power control applications, including battery chargers and welding machines.
The repetitive peak off-state current for this thyristor is minimal at 1 mA, which contributes to its efficiency.
