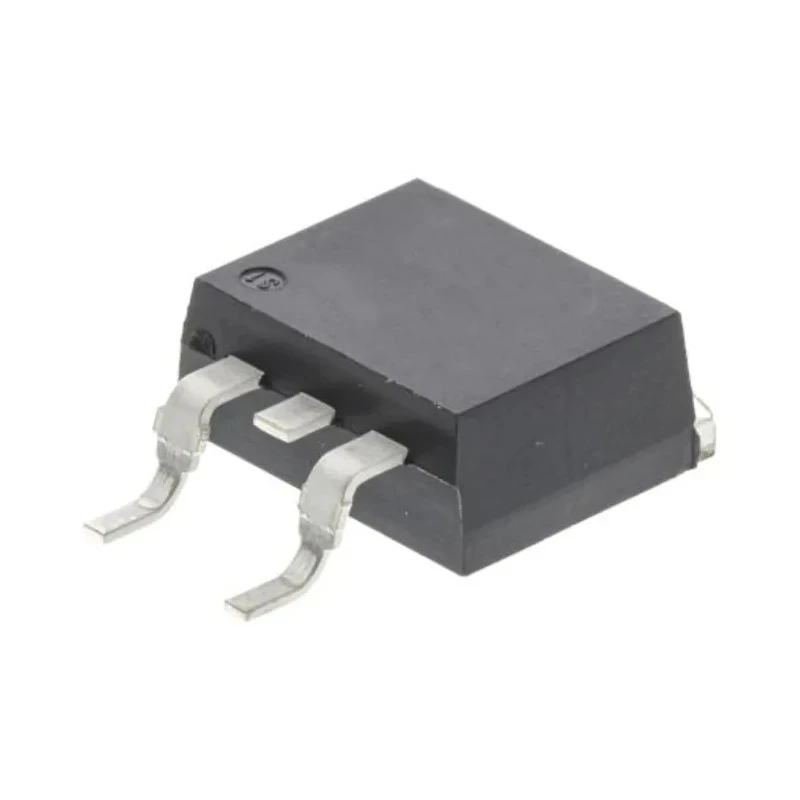

STMicroelectronics Thyristor SCR TO-263 Package 600 V Voltage 25 A Rated Current TN2540-600G-TR

STMicroelectronics TN2540-600G-TR is a thyristor (silicon controlled rectifier - SCR) designed for general purpose applications requiring controlled rectification at voltages up to 600 V and RMS on-state currents up to 25 A. This device is housed in a TO-263 surface mount package that facilitates efficient heat dissipation and mechanical mounting on printed circuit boards.

The SCR features a repetitive peak reverse voltage of 600 V and is capable of withstanding surge currents up to 314 A, providing reliable performance under transient conditions common in power control and switching scenarios.

The gate trigger parameters include a maximum trigger current of 40 mA and a maximum trigger voltage of 1.3 V, allowing precise gating control with minimal power. The device can operate reliably across a broad temperature range from -40°C to 125°C, suitable for various industrial, commercial, and automotive applications.

This component is designed as a 3-pin device with a maximum holding current of 50 mA, ensuring stable operation once the device is fired. The repetitive peak off-state current is low, about 5 µA, which helps to reduce leakage and improve efficiency.

STMicroelectronics TN2540-600G-TR thyristors are commonly used in power electronics, motor control circuits, lighting systems, and AC/DC power conversion. The TO-263 package supports surface mount technology (SMT), making it suitable for automated assembly lines and compact circuit designs.

This item is new and ready for deployment in various electronic and power control systems requiring high surge tolerance and stable switching characteristics. This thyristor features a repetitive peak reverse voltage of 600 V ensuring reliable blocking capability.

It supports a high surge current rating of 314 A providing robust transient performance. The maximum gate trigger current is 40 mA for precise control. Designed for a maximum operating temperature of 125°C and a minimum operating temperature of -40°C.

This device has a low repetitive peak off-state current of 5 µA to minimize leakage losses. The package type is TO-263, suitable for surface mounting on PCBs. This Standard SCR has a maximum gate trigger voltage of 1.3 V and maximum holding current of 50 mA.

Pin count is 3, which is typical for thyristors in this class. The product is new and intended for electronic component, power, and connector applications. Explore more high-quality Thyristors and semiconductor solutions at EnvMart for your industrial, laboratory, power management, and electronic design needs.
