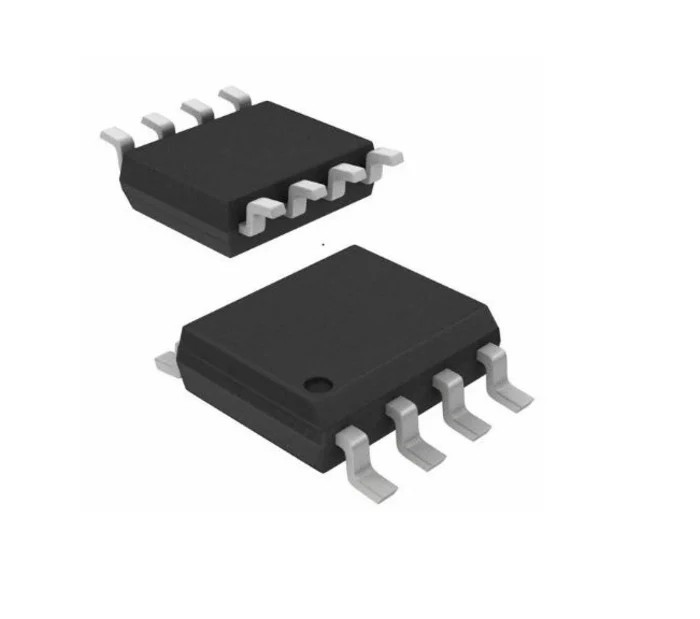

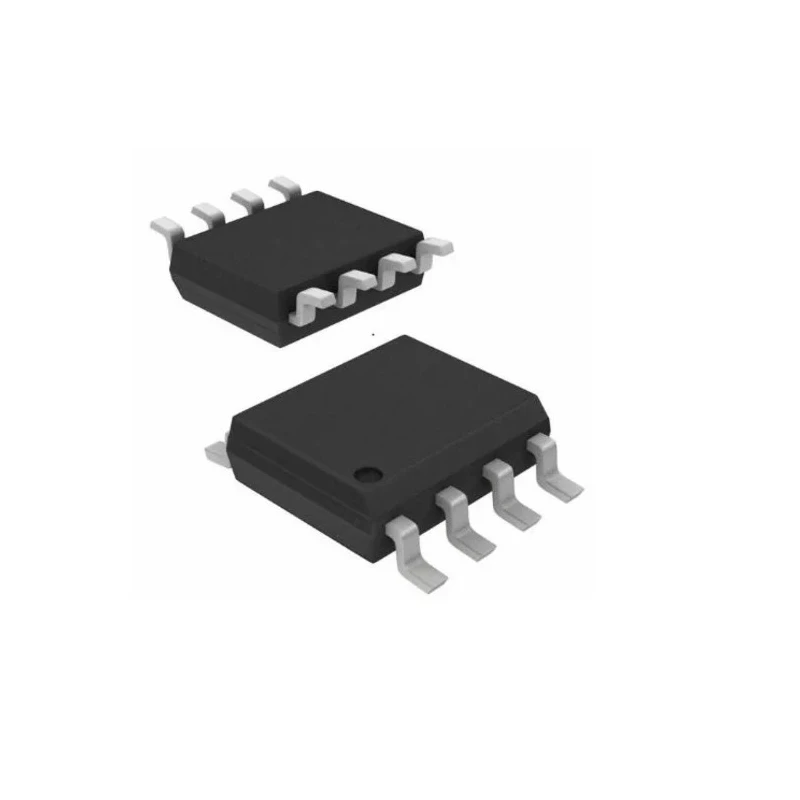

Renesas Electronics Clock Buffer 8-Pin SOIC, Surface Mount, Supply Voltage 2.3-5.2V, Max Output Frequency 200MHz 524MILF

Renesas Electronics 524MILF Clock Buffer is a high-performance clock distribution integrated circuit housed in an 8-pin SOIC surface mount package. It operates efficiently within a supply voltage range of 2.3V to 5.2V and supports maximum output frequencies up to 200MHz, making it well-suited for demanding timing and clocking applications.

This clock buffer allows a clock input frequency of up to 156MHz at 3.3V and provides multiple output signals, including a low-skew divide-by-two output. The device features low propagation delay and minimal output skew of approximately 500 ps, ensuring accurate and reliable timing signals critical in synchronous electronic circuits.

Its wide operating temperature range from -40°C to 85°C enables it to perform consistently in various industrial and commercial environments. The compact SOIC package with 4.9mm length and 1.5mm height supports efficient PCB layout and space optimization.

This clock buffer is RoHS compliant and lead-free, aligning with environmental standards for electronic manufacturing. Its low-cost design provides an economical solution without sacrificing performance, ideal for applications requiring clock signal generation, buffering, and distribution.

Typical applications include semiconductor devices, electronic circuit boards, industrial controls, telecommunications equipment, and other electronic systems requiring stable and precise clock distribution.

Operates with a supply voltage range from 2.3V to 5.2V for versatile powering options. Supports clock input frequencies up to 156MHz at 3.3V supply voltage. Delivers low skew and low propagation delay outputs for timing precision.

Compact 8-pin SOIC package dimensions 4.9mm by 1.5mm enable space-saving designs. Wide operational temperature range from -40°C to 85°C ensures durability in challenging environments. RoHS compliant, lead-free package suitable for environmentally conscious manufacturing.

Cost-effective solution for clock buffering and distribution in industrial and electronic applications. Explore the Electronics & Electricals category at EnvMart for more clock drivers and buffer ICs from trusted brands including Renesas Electronics.
