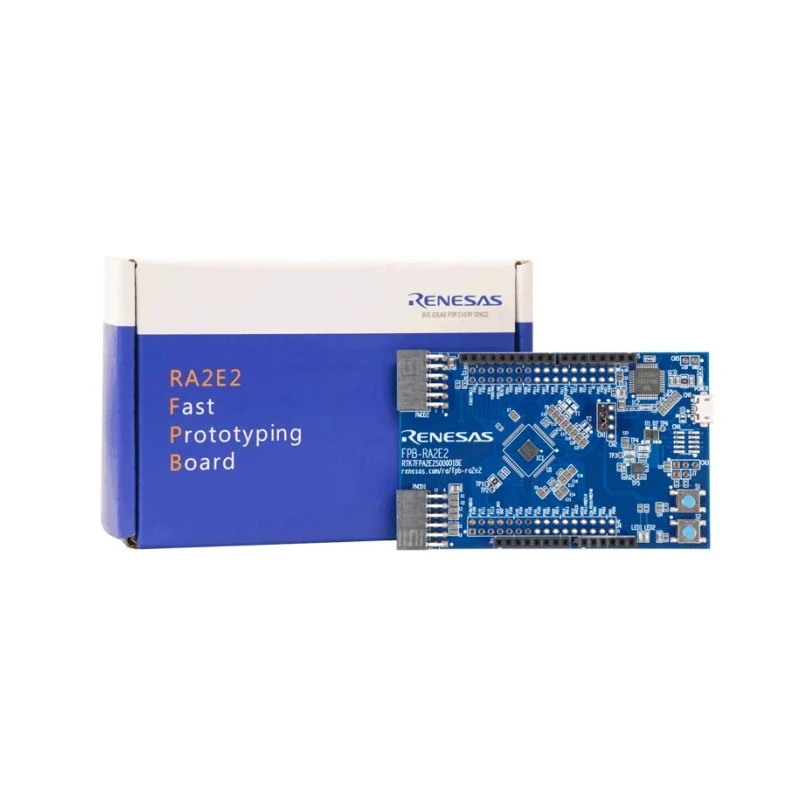

Renesas Electronics FPB-RA2E2 Prototyping Development Board 32 Bit MCU RA2E2 R7FA2E2A74CNK USB Micro USB RTK7FPA2E2S00001BE

Renesas Electronics RTK7FPA2E2S00001BE prototyping development board is designed for evaluating, prototyping, and developing applications based on the RA2E2 family 32 Bit microcontroller unit (MCU). This board integrates an emulator circuit, facilitating debugging and development processes on a single platform.

The board's layout includes through-holes for pin headers, granting direct access to all MCU signal pins to enable straightforward breadboard prototyping and flexible hardware integration. The compact size of 53 mm x 85 mm and a thickness of 11.5 mm makes it convenient for embedding in various designs and experimental setups.

It operates with a power-supply voltage (VCC) from 3.3 V to 5.5 V, while the MCU can function optimally within a voltage range of 1.6 V to 5.5 V. The inclusion of a reset push switch and a user-configurable push switch supports basic user input and control during testing and development. Connectivity is provided through a Micro USB Type-B connector, offering a standard interface for power and data transfer.

This prototyping board is an essential tool for embedded developers working in industrial, laboratory, and educational environments. It enables rapid hardware validation and software development for products incorporating the RA2E2 microcontroller family.

This board includes an emulator circuit enabling efficient evaluation and prototyping. Provides through-holes for pin headers, allowing easy access to all MCU signal pins for breadboard prototyping. Compact physical dimensions of 53 mm x 85 mm with a thickness of 11.5 mm facilitate integration into prototypes.

Operates at a power supply voltage range of 3.3 V to 5.5 V with MCU operating from 1.6 V to 5.5 V. Equipped with one reset push switch and one user push switch for manual input. Includes a Micro USB Type-B connector for connectivity and power supply.

Ideal for embedded system development, industrial automation, and educational projects. Supports rapid hardware testing and software development for RA2E2 microcontroller-based designs. Explore more electronic prototyping and Development Boards at EnvMart to find the best tools suited for your embedded system projects.
