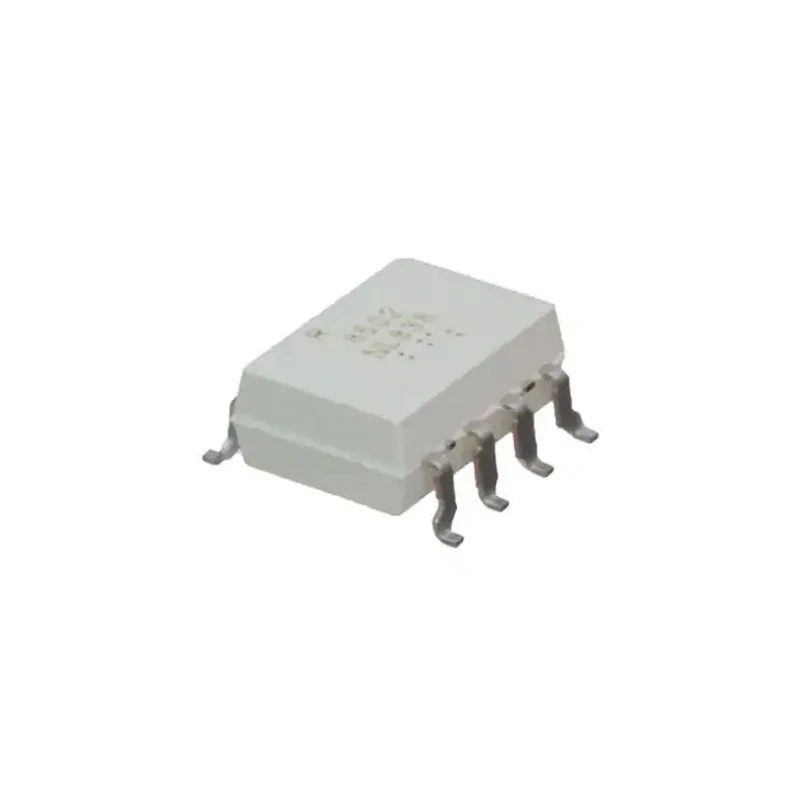

Renesas Electronics DC Input Photocoupler Surface Mount 8-Pin Gull Wing PS8502L3-AX

Renesas Electronics PS8502L3-AX is a DC input photocoupler designed for surface mount applications featuring an 8-pin gull wing package. This device integrates a GaAIAs LED input with a PN photodiode and a high-speed amplifier transistor on a single chip, providing efficient and reliable signal isolation.

The photocoupler supports a maximum forward voltage of 2.2 V and a maximum input current of 400 mA, operating safely across a temperature range of -55°C to 100°C. It delivers a minimum current transfer ratio of 15%, ensuring signal fidelity. The device has a high isolation voltage rating of 5000 Vrms and high common mode transient immunity, making it suitable for industrial, laboratory, and communication equipment requiring electrical isolation and signal integrity.

The 8-pin gull wing surface mount package provides convenient assembly and excellent electrical characteristics. Its compliance with UL and CSA standards guarantees robust performance and safety in critical applications.

This photocoupler is ideal for applications in power management circuits, signal isolation, and switching within electronic control systems in various industrial and consumer electronics.

The device has a single channel designed for DC input signals. Packaging in magazine style supports streamlined manufacturing processes. Construction includes high-speed amplifier transistor output for fast response times.

Suitable for systems requiring stringent electrical isolation with 5000 Vrms voltage rating. Meets recognized industry standards such as UL and CSA to ensure reliability. The device’s gull wing package enhances automated surface mounting.
