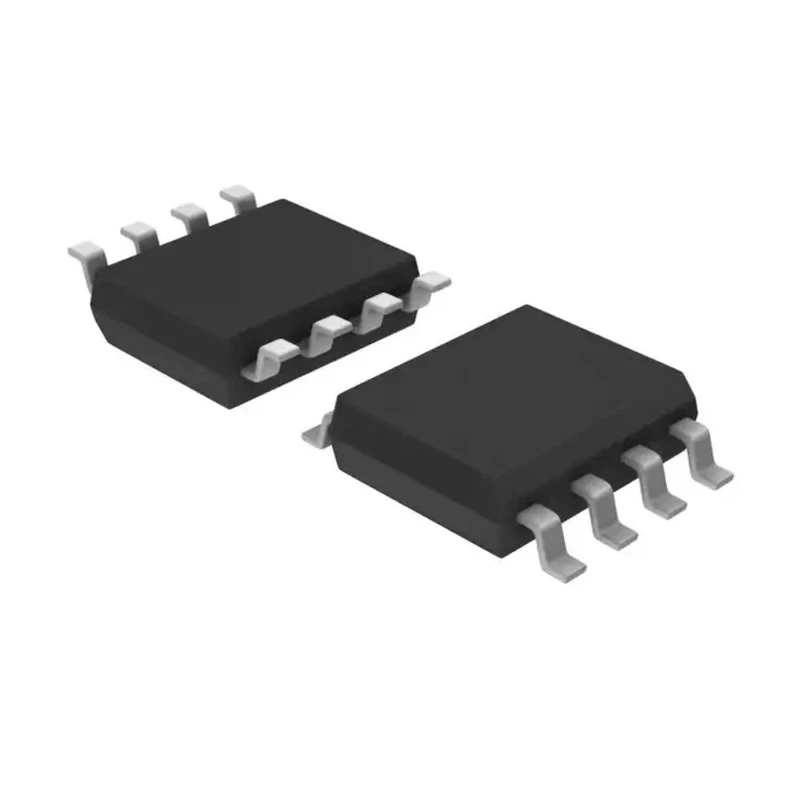

Renesas Electronics High-Speed DC Input Photocoupler Surface Mount 8-Pin SO PS9821-1-F3-AX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Model | PS9821-1-F3-AX |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | PS |
| Maximum Operating Temperature | 85°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 12.5mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 20μs |
| Typical Fall Time | 5μs |
| Isolation Voltage | 566V |
Key Features
- Utilizes GaAlAs LED input and photodiode with signal processor IC output on a single chip.
- Designed for high common mode transient immunity and low pulse width distortion.
- Offers maximum forward voltage of 1.8V and maximum input current of 12.5mA DC.
- Typical rise and fall times are 20μs and 5μs respectively, supporting high-speed switching.
- Isolation voltage rated at 566V ensuring robust electrical isolation.
- Operating temperature range from -40°C to 85°C suitable for diverse industrial environments.
- Packaged in tape and reel for automated machinery insertion and production efficiency.
- UL standards approved and suitable for high density applications requiring low power consumption.
Product Description
Renesas Electronics PS9821-1-F3-AX is a high-speed DC input photocoupler designed as an active-low type with superior electrical characteristics. It incorporates a gallium aluminum arsenide (GaAlAs) light-emitting diode on the input side and a photodetector IC combining a photodiode and signal processor on the output side in a single 8-pin small outline (SO) surface mount package. This integration reduces mounting area by 40%, enabling compact high density circuit designs.
The device delivers high common mode transient immunity of up to 566V isolation voltage and low pulse width distortion, making it ideal for industrial, construction, laboratory, HVAC, manufacturing, and automation applications requiring robust electrical isolation and signal integrity. Its maximum forward voltage is 1.8V with a maximum DC input current of 12.5mA. The typical signal rise time is 20μs, and fall time is 5μs, ensuring high-speed operation.
The operational temperature range from -40°C to 85°C provides reliability in harsh environments. This photocoupler is UL approved, meets the PS series standards, and is not designed for automotive standard compliance. Packaged in tape and reel, it supports automated assembly and improved production throughput.
Key benefits include low power consumption and an open collector output, suitable for interfacing in a variety of electronic control systems. Its compact surface mount format optimizes board space and contributes to enhanced overall device performance.
GaAlAs LED input and photodiode signal processor IC output on one chip. 40% mounting area reduction for space-saving designs. High common mode transient immunity with 566V isolation voltage. Low pulse width distortion for high signal fidelity.
High-speed typical rise time of 20 microseconds and fall time of 5 microseconds. Wide operating temperature range from -40°C to 85°C. UL approved and suitable for high density applications. Tape and reel packaging for efficient automated assembly.
Explore more Electronic Components and optoelectronics solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The isolation voltage of this model is rated at 566V, ensuring robust electrical isolation.
The typical rise time is 20μs and the fall time is 5μs, which supports high-speed switching applications.
The maximum input current is 12.5mA DC, allowing for efficient operation in various applications.
It is packaged in tape and reel, which facilitates automated machinery insertion and production efficiency.
This model has 8 pins, designed for compact circuit integration.
The maximum forward voltage is 1.8V, ensuring compatibility with various electronic control systems.
It utilizes a DC input, specifically from a GaAlAs LED, providing efficient signal processing.
This model is UL approved, meeting necessary safety and performance standards.
It features a surface mount configuration, which helps save board space in high-density applications.
It is ideal for industrial, construction, laboratory, HVAC, manufacturing, and automation applications requiring robust electrical isolation.
