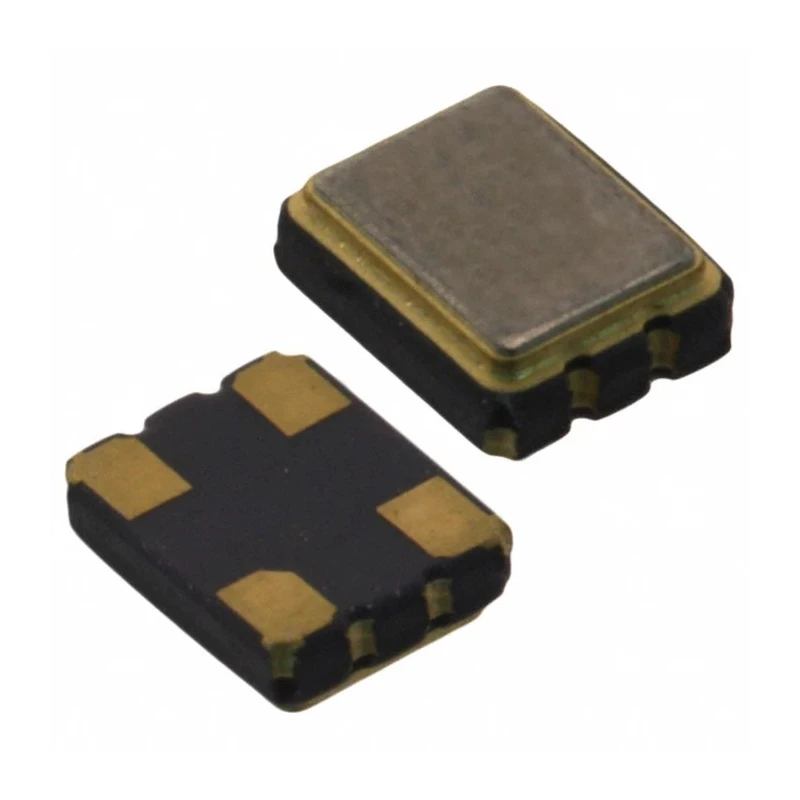

Renesas Electronics 27MHz XO Oscillator ±25 ppm LVCMOS 6-Pin Surface Mount XLH536027.000000I
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Operating Temperature | -20°C to +70°C |
| Height | 1.1mm |
| Length | 5mm |
| Model | XLH536027.000000I |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | XL |
| Maximum Operating Temperature | 70°C |
| Output Frequency | 27MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -20°C |
| Supply Voltage | 2.5V or 3.3V |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -0.5V |
| Oscillator Type | XO |
| Output Level | LVCMOS |
| Output Types | LVDS, LVPECL, LVCMOS |
Key Features
- Offers a stable output frequency of 27MHz suitable for high-precision applications.
- Features low phase jitter typical of Renesas XL series oscillators.
- Supports minimum and maximum supply voltages of -0.5V and 5V respectively.
- Operating temperature range from -20°C to 70°C ensures reliable performance in industrial environments.
- Compact package dimensions of 5mm length, 3.2mm width, and 1.1mm height for surface mount assembly.
- Complies with RoHS standards ensuring environmental safety.
- Utilizes LVCMOS output level suitable for digital electronics integration.
- Low-noise design with multiple output types including LVDS and LVPECL options in the XL series family.
Product Description
Renesas Electronics XLH536027.000000I XO Oscillator is a high-precision component delivering a 27MHz output frequency with ±25 ppm stability and LVCMOS output characteristics. This 6-pin surface mount oscillator operates reliably across a temperature range from -20°C to +70°C, making it suitable for demanding industrial and commercial electronic applications.
The XL series oscillators from Renesas Electronics are renowned for low phase jitter, typically between 750fs to 890fs over a 12kHz to 20MHz bandwidth. This product is designed with proprietary ASIC technology focusing on noise reduction, thereby ensuring signal integrity in sensitive electronic environments.
Its supply voltage range of -0.5V minimum to 5V maximum provides flexibility across various power configurations. The compact footprint of 5mm length by 3.2mm width and a height of only 1.1mm allows efficient PCB layout without sacrificing performance.
This oscillator package complies fully with RoHS environmental requirements and is suitable for automated surface mount assembly, facilitating its use in automated manufacturing processes.
Stable 27MHz frequency output with ±25 ppm accuracy. Low phase jitter for enhanced signal quality. Wide operating temperature range suitable for industrial use. LVCMOS output compatible with digital circuits. Compact 6-pin surface mount package for space-constrained designs.
Compliant with RoHS environmental standards.
Typical use cases include industrial automation, telecommunications equipment, networking devices, and embedded control systems requiring precise timing signals. The XLH536027.000000I oscillator is engineered to meet the practical needs of modern electronics manufacturing with a focus on reliability and performance.
Browse the Renesas Electronics catalog on EnvMart for a broad range of high-quality Oscillators and related electronic components tailored for industrial, laboratory, telecommunications, and embedded systems.
