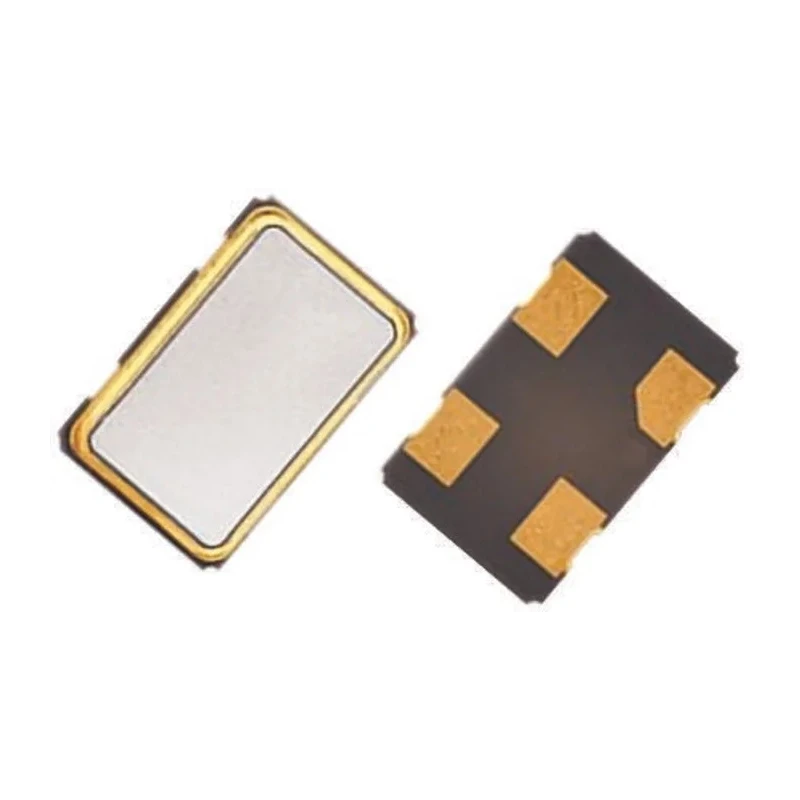

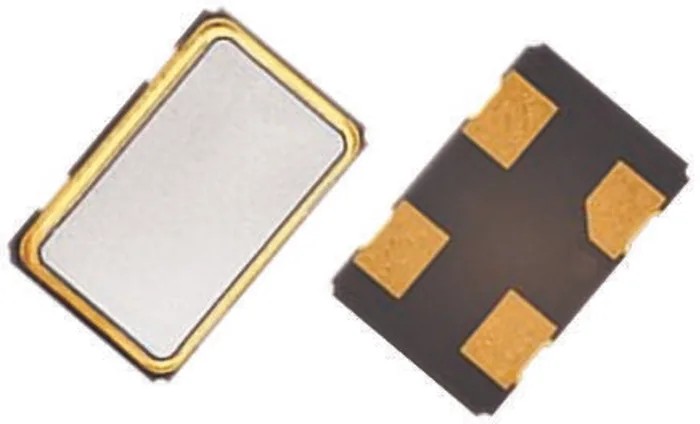

AKER 24MHz Clock Oscillator ±50 ppm CMOS 4-Pin Surface Mount S53305-24.000-X

Free Delivery in India | Lowest Global Shipping Charges

AKER 24MHz Clock Oscillator ±50 ppm CMOS 4-Pin Surface Mount S53305-24.000-X

Name: AKER 24MHz Clock Oscillator ±50 ppm CMOS 4-Pin Surface Mount S53305-24.000-X
Brand: Aker
SKU: 425258
Price: 1.61 USD
Availability: InStock



Category Oscillator Brand Aker Condition New

Specifications

Country of Origin	Taiwan
Brand	AKER
Height	0.95mm
Length	5mm
Model	S53305-24.000-X
Packaging	Tape & Reel
Width	3.2mm
Mount Type	Surface
Series	S5
Maximum Operating Temperature	85°C
Output Frequency	24MHz
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	Pb - Lead Free, RoHS
Pin Count	4
Maximum Supply Voltage	3.3V
Minimum Supply Voltage	1.8V
Load Capacitance	15pF
Oscillator Type	Clock
Output Level	CMOS

Key Features

Operates with a supply voltage range of 1.8V to 3.3V.
Provides a stable output frequency of 24MHz with ±50 ppm tolerance.

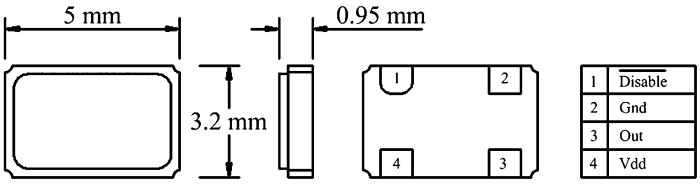

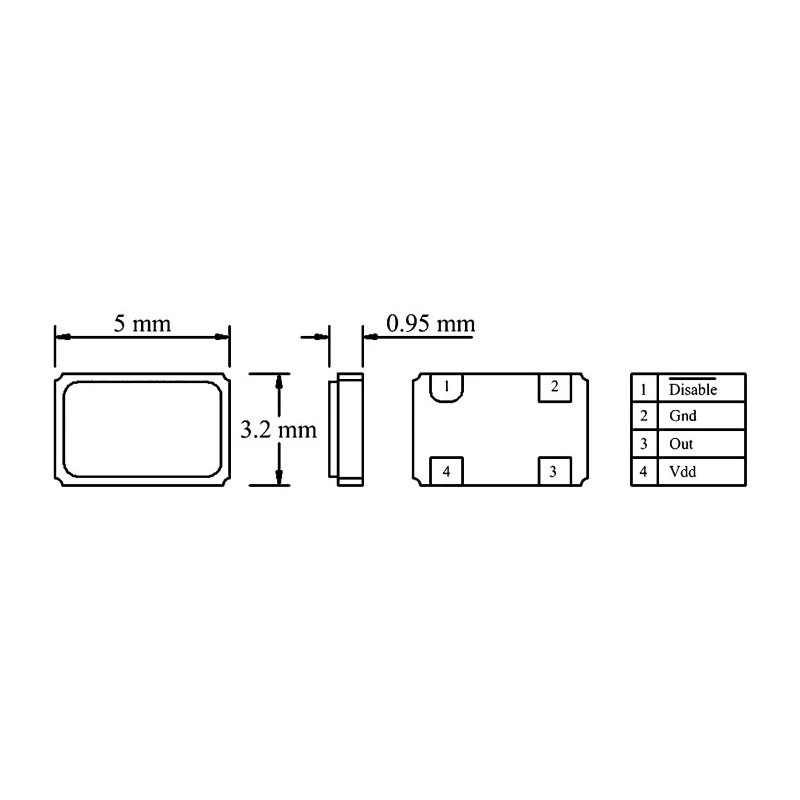

Compact surface mount design measuring 5mm length, 3.2mm width, and 0.95mm height.
Industrial temperature range from -40°C to 85°C ensures reliability in harsh environments.
Load capacitance of 15pF optimized for performance.
Lead-free, RoHS compliant for environmental safety.
Packaged in tape and reel format for efficient automated assembly.
Suitable for industrial, laboratory, and electronics applications requiring precise timing.

Product Description

AKER brand presents the S53305-24.000-X model, a 24MHz clock oscillator designed for precision timing applications. Utilizing CMOS output technology and housed in a compact 4-pin surface mount plastic package, this oscillator offers excellent frequency stability of ±50 ppm, making it well-suited for demanding industrial and electronics uses.

The device supports a supply voltage range from 1.8V minimum to 3.3V maximum, providing flexibility in system design. Its small form factor dimensions - 5mm length, 3.2mm width, and 0.95mm height - enable integration into space-constrained PCB layouts.

Designed to operate over a wide temperature range of -40°C to 85°C, this component maintains stable frequency output in various harsh environmental conditions. The load capacitance is specified at 15pF, ensuring signal integrity and optimal oscillator performance.

The S53305-24.000-X is supplied in tape and reel packaging, facilitating automated placement and enhancing production efficiency. Compliance with Pb-free and RoHS standards reflects adherence to environmental and safety regulations.

Common application areas include industrial automation, laboratory instrumentation, communications equipment, and general electronics requiring a reliable clock source. The S5 series oscillator offers dependable functionality, suitable for precision timing circuits and microcontroller timing references.

Operates with supply voltage from 1.8V to 3.3V. Frequency stability of ±50 ppm ensures reliable timing. Compact SMT package with 4 pins ideal for PCB integration. Wide operating temperature range from -40°C up to 85°C. Tape and reel packaging for streamlined automated assembly.

Lead-free and RoHS compliant for environmental safety. Load capacitance rated at 15pF for optimal performance. Manufactured in Taiwan, Province Of China.
