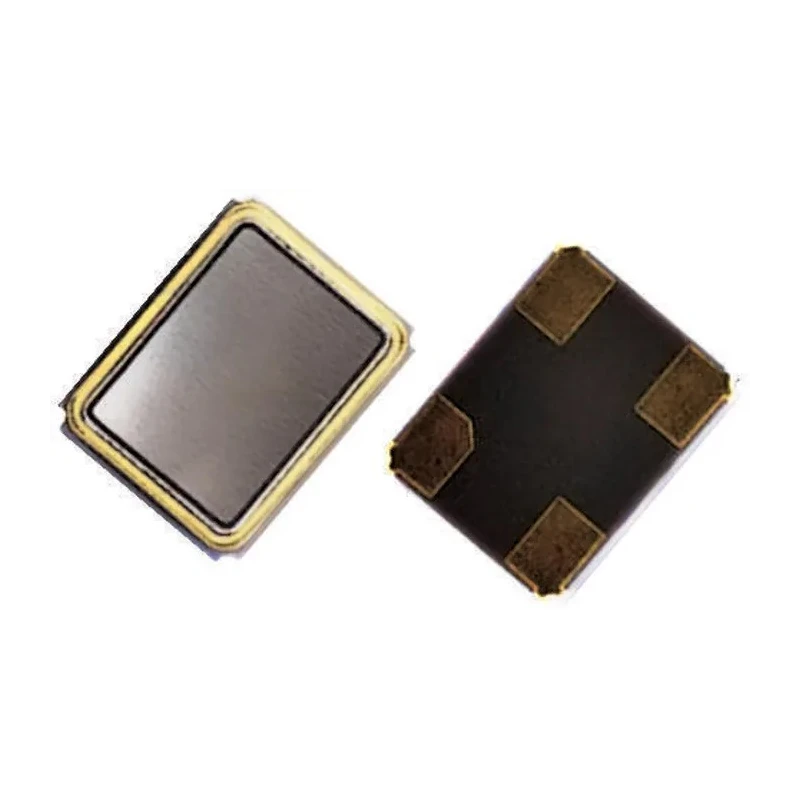

AKER 25MHz Clock Oscillator ±50 ppm CMOS 4-Pin Surface Mount S23305-25.000-X

Free Delivery in India | Lowest Global Shipping Charges

AKER 25MHz Clock Oscillator ±50 ppm CMOS 4-Pin Surface Mount S23305-25.000-X

Name: AKER 25MHz Clock Oscillator ±50 ppm CMOS 4-Pin Surface Mount S23305-25.000-X
Brand: Aker
SKU: 347793
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Aker Condition New

Specifications

Country of Origin	Taiwan
Brand	AKER
Height	0.95mm
Length	2.5mm
Model	S23305-25.000-X
Width	2mm
Mount Type	Surface
Series	S2
Maximum Operating Temperature	85°C
Output Frequency	25MHz
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Pin Count	4
Maximum Supply Voltage	3.3V
Oscillator Type	Clock
Output Level	CMOS

Key Features

Oscillator type is clock with a 25MHz output frequency.
The device features a 4-pin CMOS output level in a compact surface mount package.
Operates on a maximum supply voltage of 3.3V, suitable for low power applications.
Temperature range from -40°C to 85°C ensures operation under harsh conditions.
Compact dimensions of 2.5mm length, 2mm width, and 0.95mm height for PCB space efficiency.
Suitable for industrial, communication, and consumer electronics requiring stable clock sources.
Manufactured under the S2 series standard and compliant with no special automotive certification.

Product Description

AKER S23305-25.000-X is a 25MHz clock oscillator designed with CMOS output technology providing a frequency stability of ±50 ppm. This 4-pin surface mount oscillator operates at a maximum supply voltage of 3.3V and functions reliably within a temperature range of -40°C to 85°C, making it ideal for demanding electronic applications.

The compact ceramic case measures 2.5mm in length, 2mm in width, and 0.95mm in height, contributing to efficient PCB space utilization. Its stable clock output ensures precise timing critical in communication, industrial, and consumer electronics.

This oscillator is part of the S2 series, optimized for surface mount technology, offering robust electrical performance without automotive-specific certifications. The 4-pin configuration simplifies integration into various circuit designs.

Clock oscillator type with 25MHz frequency output. CMOS output level for low noise and power efficiency. Frequency accuracy maintained at ±50 ppm ensures signal stability. Compact size supports space-constrained PCB layouts.

Wide operating temperature range supports diverse environmental conditions. Maximum supply voltage of 3.3V enables compatibility with modern low-voltage systems. 4-pin surface mount design aids in automated assembly processes.

Manufactured in Taiwan with stringent quality controls for reliability.

This product is highly suitable for electronic circuit designers requiring a dependable frequency source in industrial, telecommunications, and consumer electronic devices. Browse EnvMart’s extensive range of electronic components for more precision oscillators and timing solutions from AKER and other leading brands.
