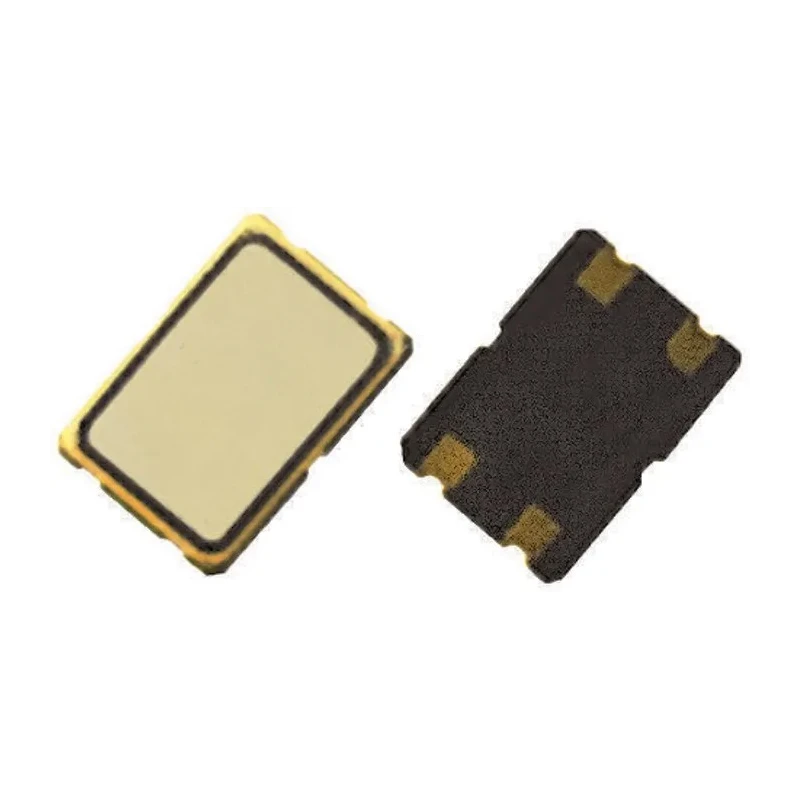

AKER 16 MHz Crystal ±30 ppm Surface Mount 4-Pin 1.1 mm Height 7 mm Length 5 mm Width C7S-16.000-12-3030-X

AKER C7S-16.000-12-3030-X 16 MHz Crystal ±30 ppm Surface Mount 4-Pin is a high-precision electronic crystal unit designed for use in oscillators and frequency control circuits in various industrial, laboratory, and commercial electronics applications.

This crystal unit operates at a standard frequency of 16 MHz with a frequency tolerance and stability of ±30 ppm, ensuring highly accurate signal generation critical for communication, measurement, and control systems.

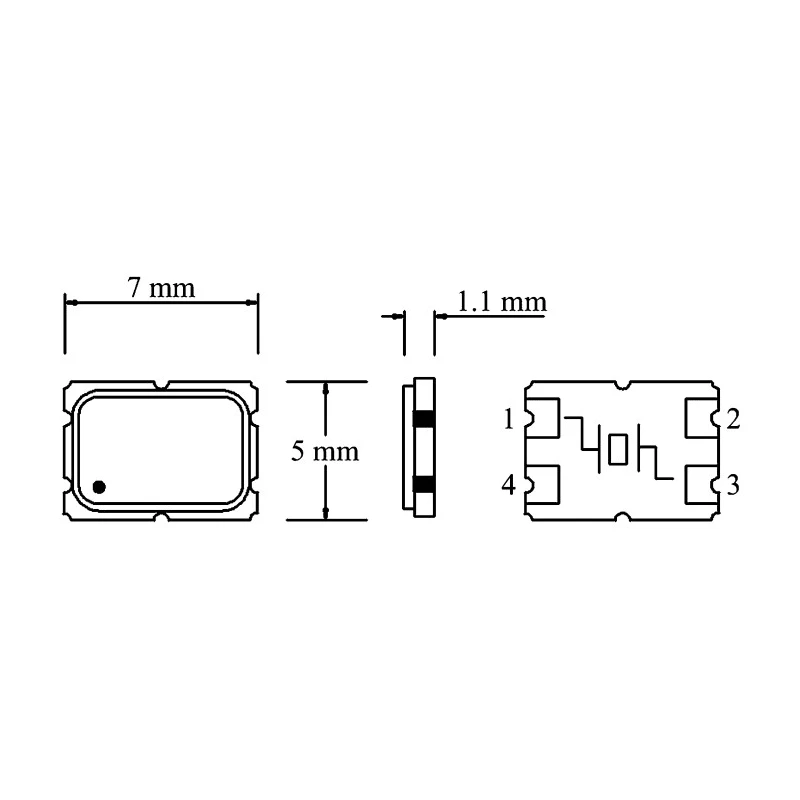

The device is housed in a compact surface mount package measuring 7 mm in length, 5 mm in width, and 1.1 mm in height, featuring 4 pins for efficient PCB integration. Its load capacitance is rated at 12 pF, optimized for stable oscillation within typical circuit designs.

With an operating temperature range from -40°C to 85°C, this crystal is suitable for demanding environments found in industrial control, automotive electronics (non-automotive certified), and communication devices. The series resistance of 45 Ω contributes to the stable operation of oscillators.

The crystal complies with RoHS environmental standards, ensuring no use of hazardous substances, which is advantageous in manufacturing compliant electronic equipment. This crystal features a standard frequency of 16 MHz for reliable oscillation.

The surface mount package ensures ease of installation on PCB boards. It has a load capacitance of 12 pF suitable for typical electronic circuits. Operating temperature ranges from -40°C to 85°C, ensuring durability in various environments.

Physical dimensions are 7 mm length, 5 mm width, and 1.1 mm height for compact design. Frequency tolerance and stability are ±30 ppm for precision applications. Boasts a series resistance of 45 Ω, supporting stable signal generation.

Complies with RoHS standards for environmental and safety regulations. Featuring 4 pins in a surface mount configuration for efficient connectivity. Manufactured in Taiwan, Province Of China, reflecting quality production standards.

This crystal is ideal for use in electronic circuit design and manufacturing, suitable for industrial and commercial electronics, communications, and laboratory applications. Enhance your oscillator and timing circuits with this reliable and compact crystal unit from AKER.
