| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | LQW18AN33NJ00D |
| Depth | 0.8mm |
| Packaging | Tape & Reel |
| Series | LQW |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Non-Magnetic Ceramic |
| Inductance | 33nH |
| Standards/Approvals | RoHS |
| Package/Case | 0603 |
| Maximum DC Current | 420mA |
| Maximum DC Resistance | 230mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 3.2GHz |
| Minimum Quality Factor | 40 |
| Inductor Construction | Wirewound |

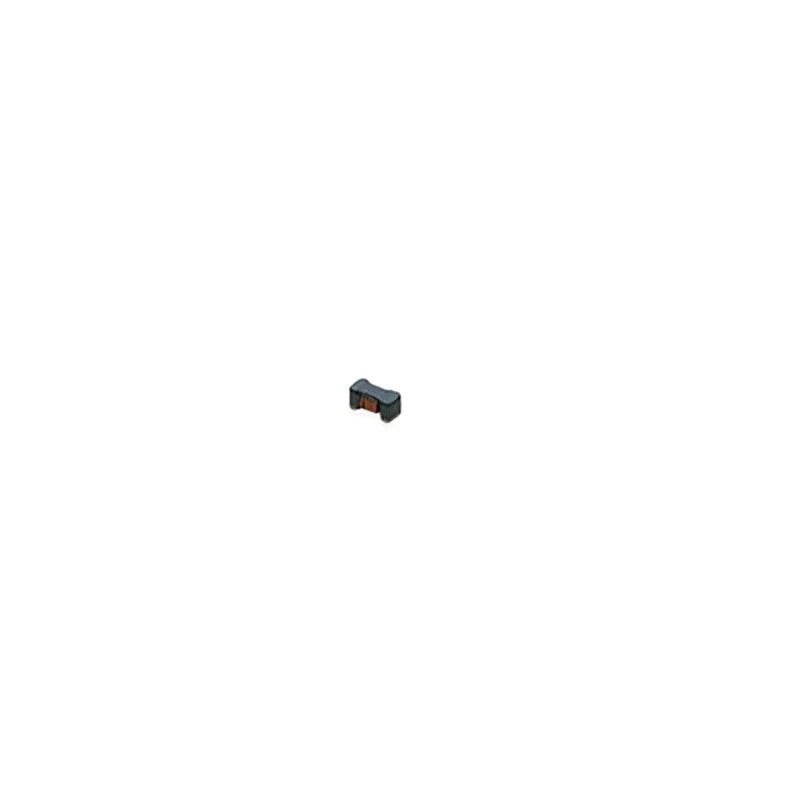

Murata LQW18AN33NJ00D wirewound Surface Mount Inductor is designed for high-frequency circuit applications including RF modules, Wi-Fi, Bluetooth, and matching circuits. This ultra-compact 0603 package inductor features a non-magnetic ceramic core enhancing magnetic stability and signal integrity.
It offers an inductance of 33 nH with a tolerance of ±5% and supports a maximum DC current of 420 mA, making it suitable for precise and robust electronic designs. With a maximum DC resistance of 230 mΩ, it ensures low power loss and efficient conduction.
The operating temperature range from -55°C to 125°C allows deployment in various environmental conditions. Its maximum self-resonant frequency of 3.2 GHz and minimum quality factor of 40 enable excellent performance in demanding high-frequency applications.
Termination is designed for surface mount technology facilitating automated placement and soldering. The product is RoHS compliant ensuring adherence to environmental safety standards. Packaging in tape and reel format supports volume manufacturing in automated assembly lines.
Non-magnetic ceramic core enhances performance and stability. 60 03 package dimensions measuring 1.6 mm length and 0.8 mm height and depth. Maximum DC current rating of 420 mA for reliable operation. Maximum DC resistance of 230 mΩ ensures efficient current flow.
Operating temperature range from -55°C to 125°C suitable for diverse applications. High self-resonant frequency of 3.2 GHz for high-frequency circuits. Designed for surface mount termination style suitable for automated PCB assembly.
Compliance with RoHS environmental standards. Minimum quality factor of 40 supports performance in high-frequency circuits. Packaged in tape and reel suitable for volume manufacturing. These inductors are commonly used in industrial, telecommunications, consumer electronics, and automotive electronic applications requiring high reliability and compact size.
Explore additional Murata inductors and components within EnvMart's extensive electronics catalog for your high-frequency design requirements.
