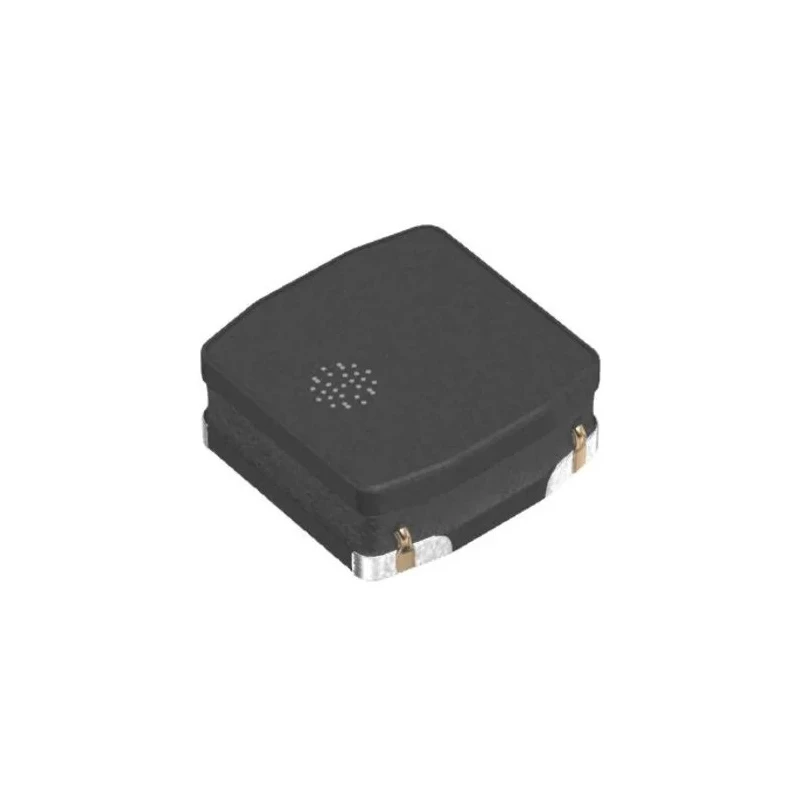

TDK Shielded Wirewound Surface Mount Inductor with Metal Core 6.8 µH ±20/±30% 1.66 A IDC VLS3012HBX-6R8M
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 1.2mm |
| Length | 3mm |
| Model | VLS3012HBX-6R8M |
| Depth | 3mm |
| Series | VLS-HBX |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal |
| Inductance | 6.8μH |
| Standards/Approvals | SVHC-free, RoHS, REACH, Lead Free, Halogen Free |
| Package/Case | 3012 |
| Maximum DC Current | 1.66A |
| Maximum DC Resistance | 285mΩ |
| Inductance Tolerance | ±20/±30 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Application guides | Smart phones/tablets |
Key Features
- Inductance of 6.8 µH with tolerance of ±20% or ±30%.
- Maximum DC current rating of 1.66 A for reliable operation.
- Compact 3012 package size with 3 mm length, depth and 1.2 mm height.
- Features magnetic shielding and metal magnetic core for enhanced performance.
- Wirewound construction suitable for power circuit applications.
- Operating temperature range from -40°C to 105°C for robust use.
- RoHS, REACH compliant and lead-free, halogen-free construction.
- Compatible for use in HDDs, SSDs, mobile display panels, smart phones, tablets, and compact power supply modules.
Product Description
TDK VLS3012HBX-6R8M is a high-quality shielded wirewound surface mount inductor designed with a metal core for efficient power circuit applications. It features an inductance value of 6.8 µH with tolerance ratings of ±20% or ±30%, providing stable performance under variable conditions.
The inductor is enclosed in a compact 3012 package measuring 3 mm in length and depth with 1.2 mm height, enabling high-density mounting on printed circuit boards. Its magnetic shielding and metal magnetic material construction achieve high current capacity and reduced electromagnetic interference, making it suitable for sensitive electronic devices.
Rated for a maximum DC current of 1.66 A, this component operates reliably in temperature ranges from -40°C up to 105°C. It is wirewound for excellent inductance stability and comes ROHS, REACH compliant as well as lead and halogen free, aligning with modern environmental standards.
This inductor is ideal for diverse applications including hard disk drives (HDD), solid-state drives (SSD), digital video cameras (DVC), digital still cameras (DSC), mobile display panels, smart phones, tablets, portable gaming devices, and compact power supply modules.
Termination style is surface mount, allowing for easy integration into modern electronic manufacturing processes. Country of origin is China, with manufacturing ensuring consistent quality and performance.
Inductance of 6.8 µH with ±20/±30% tolerance. Maximum DC current 1.66 A for power applications. Compact 3012 package with 3 mm x 3 mm footprint and 1.2 mm height. High magnetic shielding with metal magnetic core. Wirewound construction ensures inductance stability.
Temperature range from -40°C to 105°C supports rugged environments. Complies with SVHC-free, RoHS, REACH, lead-free and halogen-free standards. Applications in HDD, SSD, digital cameras, mobile and compact power modules.
Surface mount termination style for automated PCB assembly. Manufactured in China to high quality standards. Explore the Electronics & Electricals category on EnvMart for a wide selection of Surface Mount Inductors and other advanced electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 6.8 µH with tolerance ratings of ±20% or ±30%.
The maximum DC current rating for this inductor is 1.66 A, suitable for reliable operation in power applications.
The dimensions of the 3012 package are 3 mm in length, 3 mm in depth, and 1.2 mm in height.
It operates within a temperature range of -40°C to 105°C, making it suitable for various environments.
This unit features a wirewound construction, which ensures excellent inductance stability.
It is compliant with SVHC-free, RoHS, REACH, lead-free, and halogen-free standards.
This inductor is suitable for applications in hard disk drives (HDD), solid-state drives (SSD), mobile display panels, and tablets.
The core material of this model is metal, which enhances its performance and magnetic shielding.
The maximum DC resistance is 285 mΩ, which contributes to its overall efficiency.
It features a surface mount termination style, allowing for easy integration into printed circuit boards.
This inductor is manufactured in China, ensuring consistent quality and performance.
This model belongs to the VLS-HBX series of inductors.
