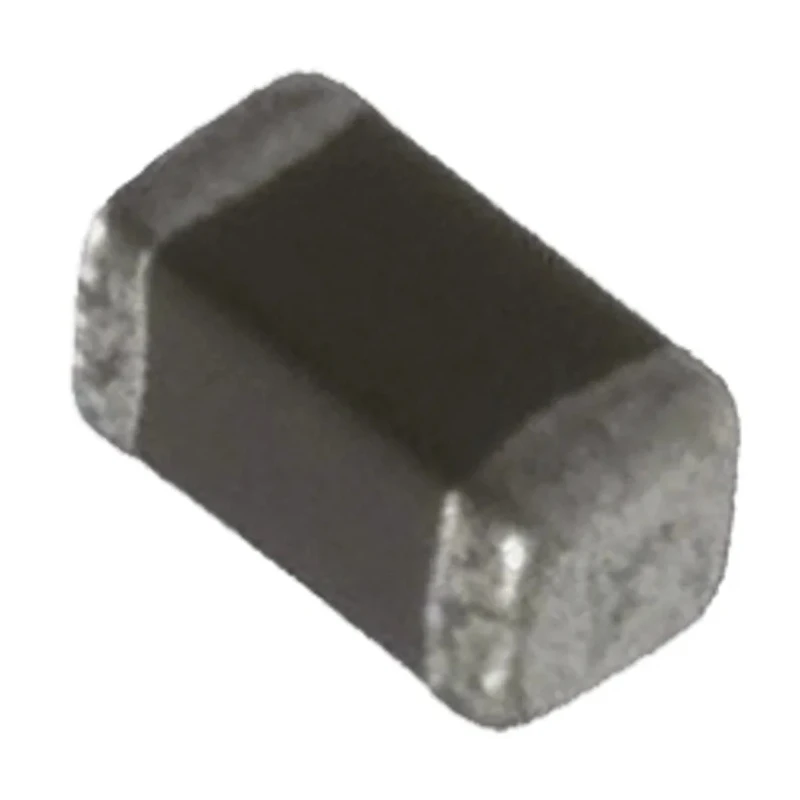

TDK 0805 Shielded Multilayer Surface Mount Inductor with Ferrite Core 6.8 μH ±10% 15 mA MLF2012

TDK MLF2012 is a shielded multilayer surface mount inductor designed with a ferrite core, featuring an inductance of 6.8 μH with ±10% tolerance and a maximum DC current rating of 15 mA. The compact 0805 package measures 2 mm in length, 1.25 mm in height, and 1.25 mm in depth, making it ideal for high-density circuit board layouts.

This inductor is constructed with a multilayer design that offers high stability and noise immunity at elevated frequencies, with a maximum self-resonant frequency reaching 60 MHz. The ferrite core shields the magnetic field effectively, reducing interference and improving overall circuit performance.

Engineered to operate reliably in a broad temperature range from -40°C to 85°C, this component also maintains a low maximum DC resistance of 650 mΩ, optimizing efficiency. With a high minimum quality factor of 50, it ensures low energy losses during operation.

Its surface mount termination style supports automated manufacturing processes, facilitating efficient production. The moulded construction provides enhanced mechanical durability and environmental protection. The MLF2012 series complies with RoHS environmental standards, aligning with sustainable manufacturing practices.

Typical industrial applications include signal filtering and tuning in mobile telephony, computer systems, and other electronic devices requiring reliable inductors with compact form factors.

Compact 0805 SMD package for space-saving PCB layouts. Ferrite core with magnetic shielding for reduced noise and interference. Multilayer construction yielding stable inductance at high frequencies. ±10% inductance tolerance ensuring consistent performance.

Operating temperature range of -40°C to 85°C for versatile environments. Rated maximum DC current of 15 mA to handle low current circuits. Maximum DC resistance of 650 mΩ to minimize power loss. Maximum self-resonant frequency of 60 MHz supports high-frequency applications.
