TDK Panel Mount IEC Filter 250V 20A Line Filter with Bleed Resistor B84771A0020A000

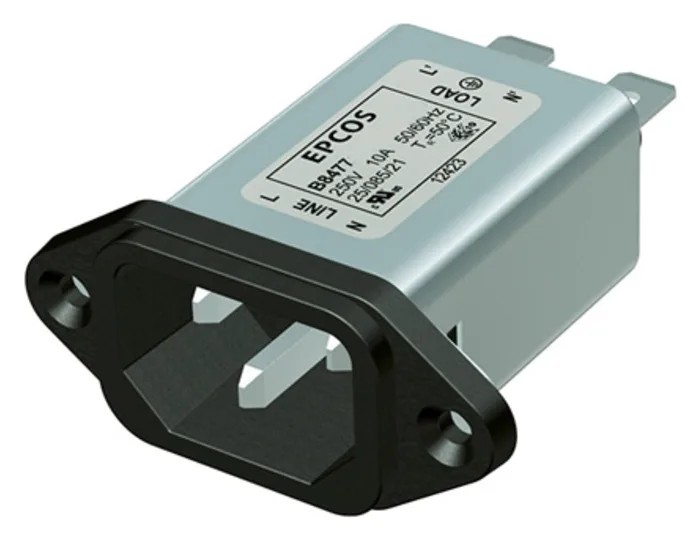

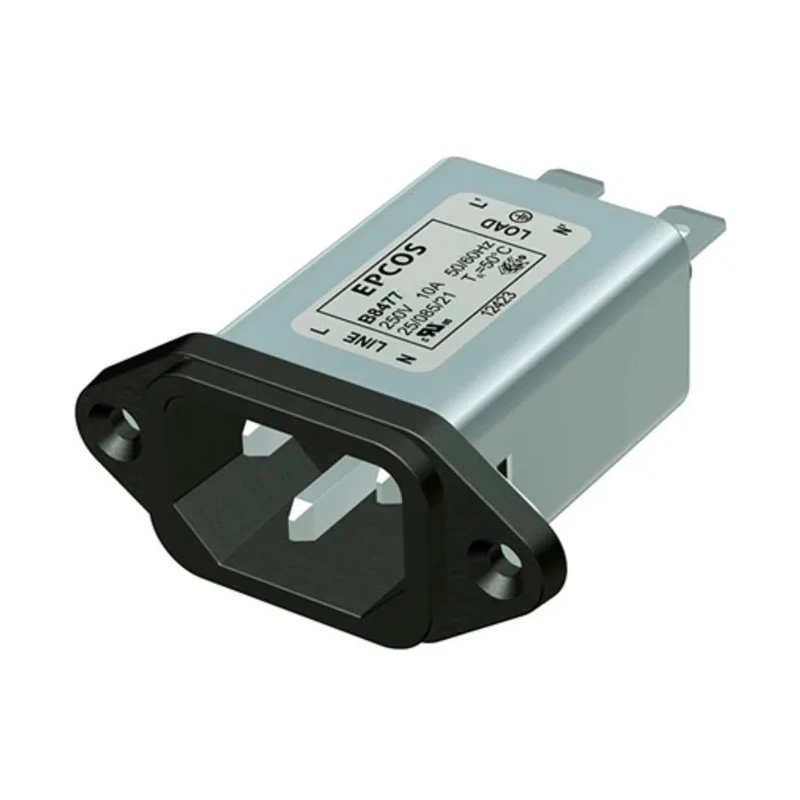

TDK B84771A0020A000 Panel Mount IEC Filter is an industrial-grade line filter rated for 250V and 20A current. It features a robust metal casing designed to be mounted on panels, ensuring secure and durable installation in electronic equipment.

This IEC inlet filter includes an integral bleed resistor that enhances safety by discharging residual voltage when power is switched off. It is engineered primarily for use with switched mode power supplies (SMPS), DC applications, and sensitive measurement instruments to reduce electromagnetic interference (EMI) and improve system stability.

Operating reliably over temperatures from -25°C to 85°C, this two-line filter supports operating frequencies of 50 and 60 Hz, making it compatible with global electrical standards. The load side connections utilize 6.3 mm tab terminals to facilitate straightforward wiring and maintenance.

It is produced in China, reflecting global manufacturing standards for reliability and quality. Key uses include industrial, laboratory, measurement, and commercial electronic systems requiring EMI suppression for enhanced performance and safety.

Supports 20A current and 250V voltage for reliable performance. Panel mount type with metal case for secure installation. Includes bleed resistor to reduce residual voltage risks. Operating frequency of 50 and 60 Hz suitable for various power supplies.

Temperature operating range from -25°C to maximum 85°C. Load side connections use 6.3 mm tab terminals for easy wiring. Ideal for switched mode power supplies, DC applications, and measurement instruments. Meets certifications including VDE, SEMKO, CSA and UL recognized component.
