Schurter IEC Connector C14 250V AC 10A Screw Mount 2 Pole Quick Connect DD12 Series 3-105-315

Free Delivery in India | Lowest Global Shipping Charges

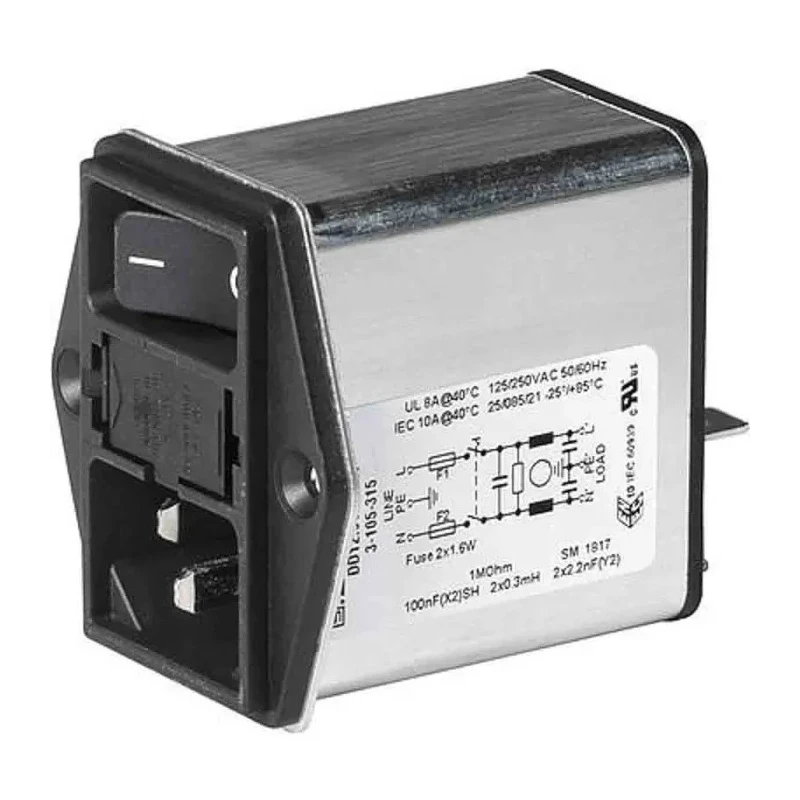

Schurter IEC Connector C14 250V AC 10A Screw Mount 2 Pole Quick Connect DD12 Series 3-105-315

Name: Schurter IEC Connector C14 250V AC 10A Screw Mount 2 Pole Quick Connect DD12 Series 3-105-315
Brand: Schurter
SKU: 421499
Price: 20.22 USD
Availability: InStock



Category IEC Filters Brand Schurter Condition New

Specifications

Country of Origin	India
Voltage	250V ac
Brand	Schurter
Orientation	Vertical
Current	10A
Height	47mm
Filter Type	Line
Depth	60.9mm
Mount Type	Screw
Operating Frequency	50, 60Hz
Switch Type	2 Pole
Series	DD12
Termination Type	Quick Connect
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Panel Mount	Screw-on from front side
Fuse Size	5 x 20 mm
IEC Connector Type	C14
4 Functions	Appliance Inlet Protection class I, Line Switch 2-pole, Fuseholder for fuse-links 5 x 20 mm 1 or 2 pole, Line filter in standard and medical version

Key Features

The connector features screw mounting and quick connect termination for secure installation.
It is part of the DD12 series with integrated fuseholder and line switch functions.
Suitable for operating frequencies of 50 and 60 Hz.
Designed with a compact vertical orientation for panel mount from the front side.
Capable of withstanding maximum operating temperatures up to 85°C and minimum temperatures down to -25°C.
The aluminium case provides excellent shielding and durability in various environments.
Ideal for equipment requiring line filtering, fuse protection, and switching in one compact unit.
Widely used in industrial, electronic, and medical equipment applications.

Product Description

Schurter 3-105-315 IEC Connector C14 is a 2 pole appliance inlet designed for 250V AC voltage and 10A current rating, featuring screw mounting and quick connect terminations. It is part of the DD12 series integrating multiple line protection functions including a fuseholder for 5 x 20 mm fuse links, a 2-pole line switch, and line filter options suitable for both standard and medical equipment.

The connector has a vertical orientation with a panel mount design that fits from the front side using screws, enabling reliable and secure installation in electronic and electrical assemblies. Its ultra-compact aluminium case ensures effective shielding from electromagnetic interference and mechanical robustness.

Operating efficiently within a frequency range of 50 to 60 Hz, it withstands temperature conditions from -25°C up to 85°C. The unit includes quick connect terminals sized 6.3 x 0.8 mm, facilitating easy wiring and maintenance.

This IEC connector series incorporates a V-Lock notch cord-retaining system to ensure secure cable attachment, making it suitable for environments with high transient loads and high inrush currents. Its flat design is optimized for low-profile applications requiring reliable power connections.

Applications include industrial machinery, laboratory equipment, commercial electrical devices, medical apparatus, and HVAC systems that need integrated line filtering and fuse protection. The multiple functions combined into one compact connector streamline panel designs and reduce installation complexity.

The appliance inlet provides protection class I safety specifications. Combines fuseholder, line switch, and line filter functionalities. Quick connect termination accelerates electrical installation. V-Lock cord retention enhances cable security during operation.

Designed for high transient load performance in demanding conditions. Ideal for medical and industrial equipment meeting stringent safety standards. Robust aluminium casing with good electromagnetic shielding. Compatible with standard fuse links size 5 x 20 mm, 1 or 2 pole.

Compact and low-profile vertical mounting panel inlet. Explore the wide range of power connectors and IEC Filters available in the Electronics & Electricals category on EnvMart for high-quality Schurter components.
