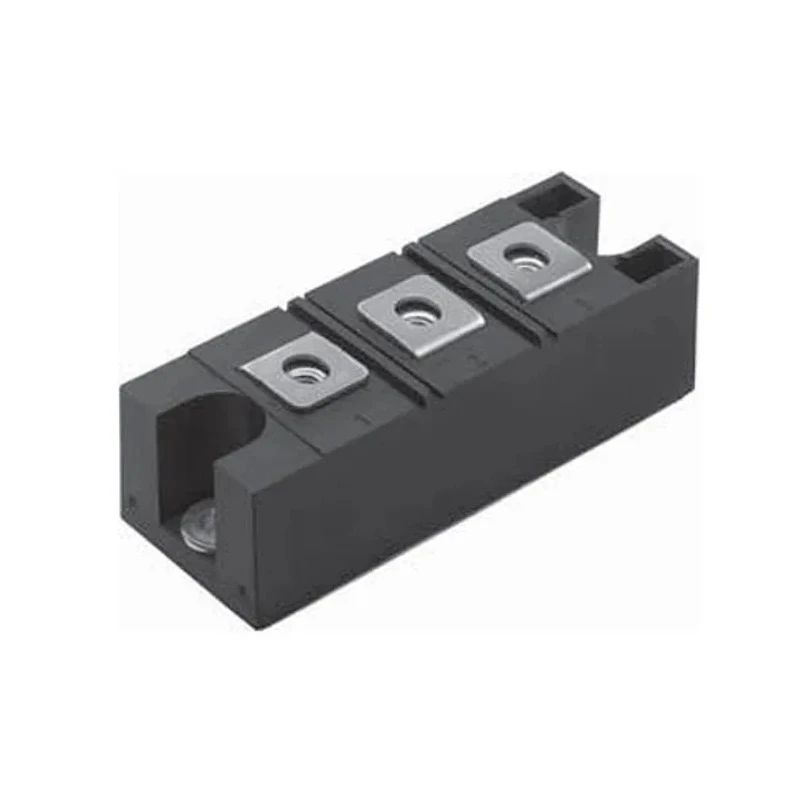

Vishay Standard Recovery Panel Mount Diode 1600 V 230 A 7-Pin INT-A-PAK VS-VSKD236/16PBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 30mm |
| Length | 94mm |
| Model | VS-VSKD236/16PBF |
| Width | 35mm |
| Mount Type | Panel |
| Series | VSX |
| Maximum Operating Temperature | 150°C |
| Package Type | INT-A-PAK |
| Minimum Operating Temperature | -40°C |
| Pin Count | 7 |
| Maximum Continuous Forward Current If | 230A |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Diode Configuration | Series |
| Rectifier Type | Recovery |
| Peak Reverse Current Ir | 20mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 5.8kA |
| Maximum Forward Voltage Vf | 1.46V |
Key Features
- Designed for high efficiency with a standard recovery rectifier type.
- Maximum forward voltage of 1.46 V allowing effective power handling.
- Operates reliably between -40°C and 150°C for industrial applications.
- Physical dimensions include length 94 mm, width 35 mm, and height 30 mm.
- Peak non-repetitive forward surge current rating of 5.8 kA ensures durability.
- Low peak reverse current of 20 mA enhancing stability in circuits.
- Robust design suitable for panel mounting with a 7-pin configuration.
- Manufactured in India maintaining quality standards.
Product Description
Vishay VS-VSKD236/16PBF is a high-performance standard recovery diode designed for panel mounting in industrial electronics. It features a peak reverse repetitive voltage rating of 1600 V and can handle a maximum continuous forward current of 230 A, making it suitable for demanding power applications. This diode is housed in an INT-A-PAK package with 7 pins, providing reliable mechanical and electrical connections.
Its standard recovery rectifier type ensures efficient switching performance essential for power electronics, manufacturing, and automotive systems that do not require automotive standards compliance. The device supports a wide operating temperature range from -40°C to 150°C, which suits harsh environmental conditions found in industrial and laboratory settings.
Key technical dimensions include a length of 94 mm, width of 35 mm, and height of 30 mm, ensuring compatibility with standardized panel mount assemblies. The diode delivers a maximum forward voltage of 1.46 V, contributing to lower power losses and heat generation in system designs.
With a peak non-repetitive forward surge current of 5.8 kA and a low peak reverse current of 20 mA, the VS-VSKD236/16PBF provides reliable transient handling and steady-state performance. It is appropriately sized and rated for applications in power conversion, energy management, and industrial electronics where robust rectification is mandatory.
Designed for high efficiency with a standard recovery rectifier type. Maximum forward voltage of 1.46 V allowing effective power handling. Operates reliably between -40°C and 150°C for industrial applications. Physical dimensions include length 94 mm, width 35 mm, and height 30 mm.
Peak non-repetitive forward surge current rating of 5.8 kA ensures durability. Low peak reverse current of 20 mA enhancing stability in circuits. Robust design suitable for panel mounting with a 7-pin configuration. Manufactured in India maintaining quality standards.
This product is ideal for use in industrial, manufacturing, power supply, and HVAC equipment where high voltage and current rectification is required. Vishay's VS-VSKD236/16PBF diode ensures reliable operation and longevity in demanding electrical environments.
Discover more semiconductor and Diode solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse repetitive voltage rating of this diode is 1600 V.
It can handle a maximum continuous forward current of 230 A.
The dimensions of the diode are 94 mm in length, 35 mm in width, and 30 mm in height.
The peak non-repetitive forward surge current rating is 5.8 kA.
It operates reliably between -40°C and 150°C.
This model is designed for panel mounting with a 7-pin configuration.
The maximum forward voltage drop is 1.46 V.
The peak reverse current is 20 mA.
It utilizes a standard recovery rectifier type for efficient switching performance.
This diode is suitable for applications in power conversion, energy management, and industrial electronics.
It is manufactured in India.
This model belongs to the VSX series.
