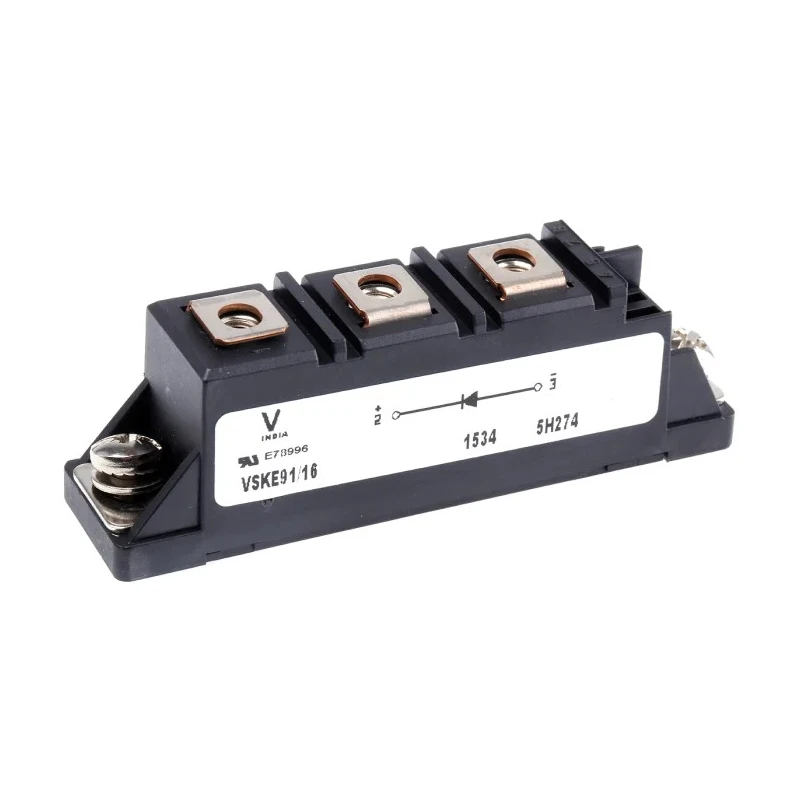

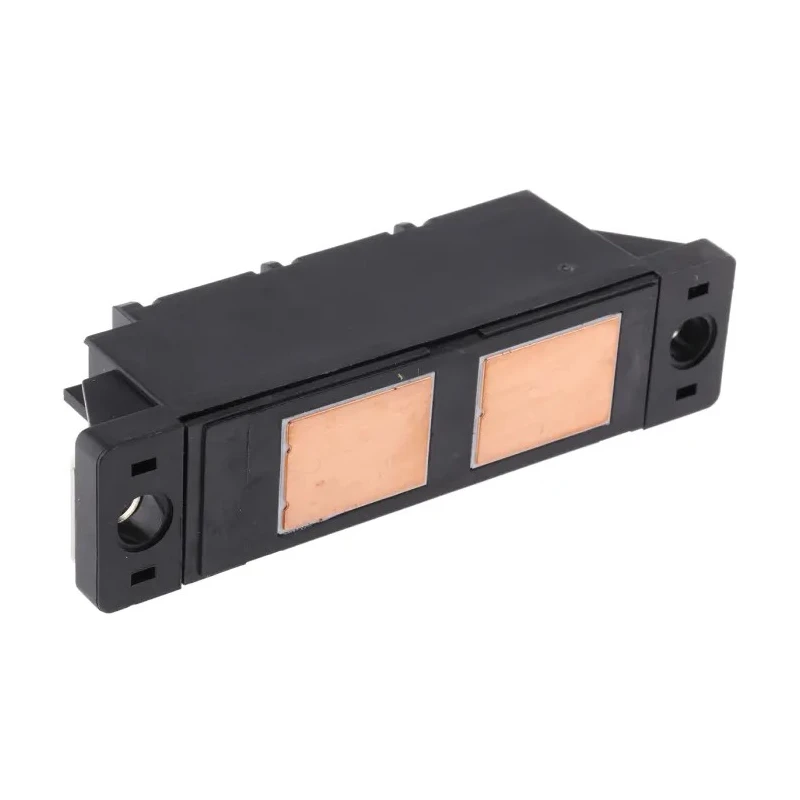

Vishay 1600 V 100 A Standard Recovery Diode 2-Pin TO-240 VS-VSKE91/16

Vishay VS-VSKE91/16 diode is a high-performance standard recovery rectifier designed for power electronics. Operating at a maximum continuous forward current of 100 A and a peak reverse repetitive voltage rating of 1600 V, this diode offers excellent reliability in controlling power flow and rectification in demanding industrial circuits.

The single diode in a TO-240 2-pin configuration provides an efficient recovery characteristic, essential for reducing switching losses in power supplies, inverters, and automotive applications. The package dimensions of 92 mm length, 35 mm height, and 22.6 mm width facilitate easy integration onto panels and heatsinks.

Operating across a temperature range from -40°C to 150°C, the VS-VSKE91/16 demonstrates versatility in harsh environments. Its maximum forward voltage drop of 1.55 V helps maintain energy efficiency, and it supports peak non-repetitive surge currents up to 2.1 kA, providing durable transient current handling.

The diode features a low peak reverse current of 10 mA, minimizing leakage and improving circuit stability, making it suitable for industrial, manufacturing, HVAC, and automotive power systems requiring robust rectification components.

Designed for high forward current of 100 A ensuring robust performance. Capable of withstanding peak reverse repetitive voltage of 1600 V. Single Diode configuration optimized for standard recovery operation. Compact TO-240 panel mount package with dimensions 92 mm length, 35 mm height, and 22.6 mm width.

Wide operating temperature range from -40°C to 150°C for demanding environments. Maximum forward voltage drop of 1.55 V for efficiency in power circuits. High surge current capability up to 2.1 kA enabling transient overload protection.

Peak reverse current limited to 10 mA to reduce leakage in forward blocking state. Industry-standard package ensures compatibility with power electronic assemblies. Reliable standard recovery rectifier for industrial, automotive, and power supply applications.

This product conforms to Vishay's high-quality standards and is widely used in electronic component manufacturing, discrete semiconductor applications, power supplies, and automotive electronics. Its panel mount versatility and durable electrical ratings make it a preferred choice in demanding environments.

Explore more semiconductor components and related products in the Vishay range at EnvMart.
