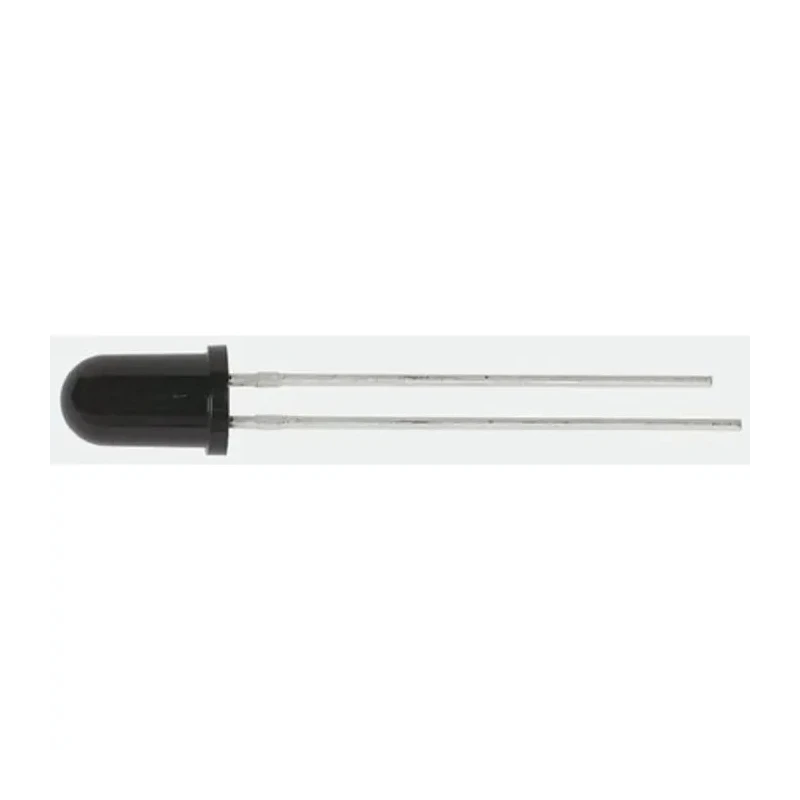

onsemi 880 nm IR Emitting Diode 5 mm T-1 3/4 Through Hole Package QED223
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | QED223 |
| Mount Type | Through Hole |
| Number Of Leds | 1 |
| Package Type | 5 mm (T-1 3/4) |
| Number of Pins | 2 |
| Lens Shape | Round |
| Maximum Supply Voltage | 5V |
| Peak Wavelength | 880nm |
| LED Material | Aluminium Gallium Arsenide |
| Angle of half intensity | 30° |
Key Features
- The diode operates with a peak wavelength of 880 nm ensuring optimal IR output.
- It features a plastic 5 mm diameter round lens for medium wide emission with a 30° half intensity angle.
- Constructed with Aluminium Gallium Arsenide (AlGaAs) LED material for high output power.
- The device supports a maximum supply voltage of 5 V for reliable operation.
- Through hole mount type with two pins ensures easy PCB integration.
- Designed without automotive compliance standards.
- Suitable for industrial, electronic components, and optoelectronic applications requiring IR emission.
- Its clear purple tinted lens enhances IR light transmission efficiency.
Product Description
onsemi QED223 is a high-quality infrared (IR) emitting diode designed to operate at a peak wavelength of 880 nm, making it ideal for applications that require precise IR light emission. The diode is encapsulated in a plastic 5 mm (T-1 3/4) diameter package featuring a round, clear purple tinted lens enhancing the emission and optical efficiency.
This IR LED utilizes Aluminium Gallium Arsenide (AlGaAs) as the LED material providing high output power and efficient IR light transmission. The device is configured with a through hole mounting type including two pins, facilitating easy assembly on printed circuit boards (PCBs) and enhancing mechanical stability during soldering processes.
The QED223 supports a maximum supply voltage of 5 V, ensuring compatibility with low voltage electronic circuits. It emits IR radiation over a medium wide emission angle of 30°, which is adequate for applications needing focused yet somewhat dispersed IR light.
Due to its specifications and packaging, this diode is widely used in electronic component assemblies, optoelectronic devices, remote control systems, and industrial sensing equipment. It is not certified for automotive standards and is primarily intended for general purpose and industrial use cases.
Featuring a single LED configuration, the QED223 is suitable for diverse IR emission applications where compact size and reliability are critical. Its standardized 5 mm diameter package allows for compatibility with existing designs requiring T-1 3/4 form factor LEDs.
The Diode offers a peak wavelength of 880 nm optimized for IR emission needs. It comes in a durable plastic 5 mm (T-1 3/4) package with through hole mounting. Aluminium Gallium Arsenide LED material ensures high efficiency and power.
Single LED and two pins for straightforward PCB integration. Maximum supply voltage rating of 5 V for stable operation. Medium wide emission angle of 30° for focused IR light output. Clear purple tinted round lens enhances IR transmission.
Ideal for industrial, electronic component, and optoelectronics applications. Compact form factor suits various assembly configurations.
Explore our wide selection of IR LEDs and optoelectronic components to find the perfect solutions for industrial, laboratory, manufacturing, and commercial electronics applications here at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The QED223 operates at a peak wavelength of 880 nm, which is optimized for infrared emission applications.
This model supports a maximum supply voltage of 5 V, ensuring reliable operation in low voltage electronic circuits.
The diode features a through hole mounting type with two pins, facilitating easy integration onto printed circuit boards (PCBs).
The QED223 is constructed using Aluminium Gallium Arsenide (AlGaAs), which provides high output power and efficient infrared light transmission.
The diode emits IR light over a medium wide emission angle of 30°, which allows for somewhat dispersed IR light output.
It has a round lens shape, which enhances the emission and optical efficiency of the infrared light.
The QED223 features a single LED configuration, making it suitable for various IR emission applications.
The QED223 is packaged in a 5 mm (T-1 3/4) diameter format, which is standardized for compatibility with existing designs.
This model is suitable for industrial, electronic components, and optoelectronic applications requiring infrared emission.
No, the QED223 is not designed with automotive compliance standards and is primarily intended for general purpose and industrial use cases.
The QED223 is manufactured in India, as indicated by its country of origin.
The clear purple tinted lens enhances the infrared light transmission efficiency of the diode, improving its overall performance in applications.
