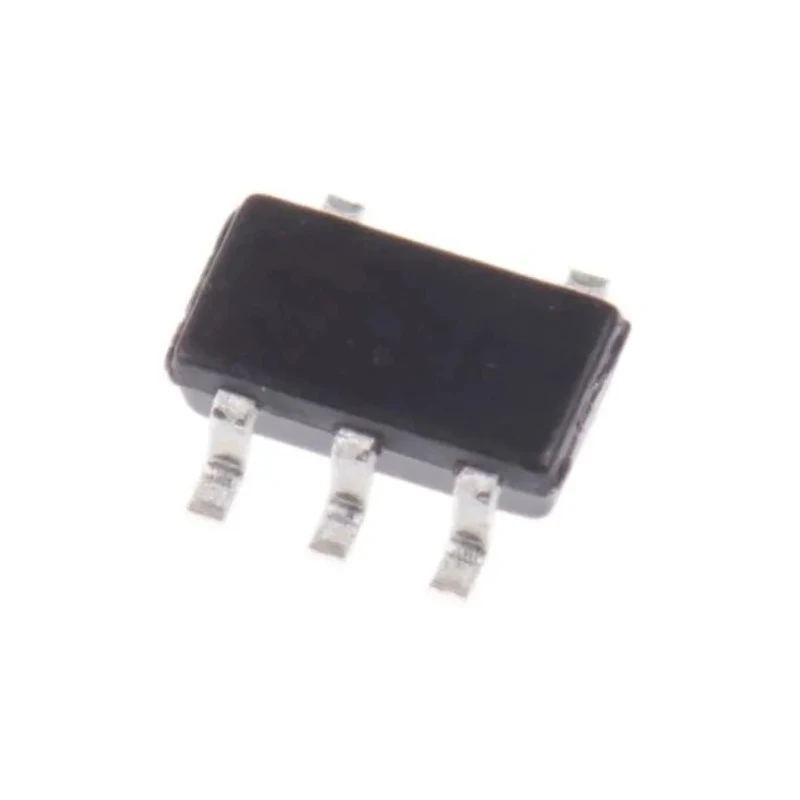

onsemi Operational Amplifier, 350 kHz Gain Bandwidth, 5-Pin TSOP Package, 1.8 to 5.5 V Supply NCV20091SN3T1G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1mm |
| Length | 3.15mm |
| Model | NCV20091SN3T1G |
| Width | 1.65mm |
| Mount Type | Surface |
| Series | NCV20091 |
| Output Current | 29μA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| GBP - Gain Bandwidth Product | 350kHz |
| Input Bias Current | 1500 pA |
| Vos - Input Offset Voltage | 4 mV |
| Slew Rate | 0.15V/μs |
| Input Offset Current | 1100 pA |
| Wide temperature range | −40 to 125°C |
| Low input bias current | 1 pA Typical |
| Wide Supply Range | 1.8 to 5.5 V |
| Wide Bandwidth | 350 kHz |
Key Features
- Operates with a wide supply range from 1.8 V to 5.5 V.
- Features low supply current consumption of 20 μA per channel at 1.8 V.
- Supports a wide temperature range from −40 to 125°C for industrial and automotive applications.
- Offers a high slew rate of 0.15 V/μs at 1.8 V supply voltage.
- Includes rail-to-rail input and output for improved signal handling.
- Complies with RoHS and AEC-Q100 automotive standards.
- Designed for low input bias current around 1 pA typical.
- Has an input offset voltage of 4 mV and offset current of 1100 pA.
Product Description
onsemi NCV20091SN3T1G is a high-performance operational amplifier designed for industrial, automotive, and low power applications. It operates over a wide supply voltage range of 1.8 V to 5.5 V, making it suitable for battery-powered and low quiescent current systems.
This amplifier features a gain bandwidth product of 350 kHz and a high slew rate of 0.15 V/μs ensuring responsiveness in signal amplification tasks. The device supports rail-to-rail input and output stages, enhancing linearity and signal swing capabilities.
It is built to operate reliably across a wide temperature range from −40°C to 125°C and meets the automotive standard AEC-Q100, making it especially appropriate for automotive electronics. The device is RoHS compliant and free from lead and halogens, aligning with environmental safety standards.
The NCV20091SN3T1G comes in a compact 5-pin TSOP surface mount package with dimensions of 3.15 mm length, 1.65 mm width, and 1 mm height, allowing for efficient PCB space utilization.
Typical input bias current is extremely low at 1 pA, with an input offset voltage of 4 mV and offset current of 1100 pA, supporting precision analog signal processing. Output current capabilities reach 29 μA.
Common use cases include unity gain buffers, low cost current sensing, and battery-powered devices requiring low quiescent current draw. The device's specifications offer designers flexibility in a variety of analog signal processing and amplification applications in industrial and automotive fields.
Operates over a wide supply voltage range of 1.8 to 5.5 V. High gain bandwidth product of 350 kHz for fast response. Low supply current of 20 μA per channel supports energy efficient designs. Supports wide operating temperature from −40 to 125°C suitable for harsh environments.
Meets automotive standard AEC-Q100 for automotive electronics. RoHS compliant and lead-free for environmental safety. Compact 5-pin TSOP surface mount package for space-saving PCB layouts. Rail-to-rail input and output for extended signal range.
Low input bias current and offset voltages enhance accuracy. Ideal for battery powered and low quiescent current applications. Explore our extensive range of Operational Amplifiers and semiconductor components on EnvMart for your industrial and automotive design needs.
