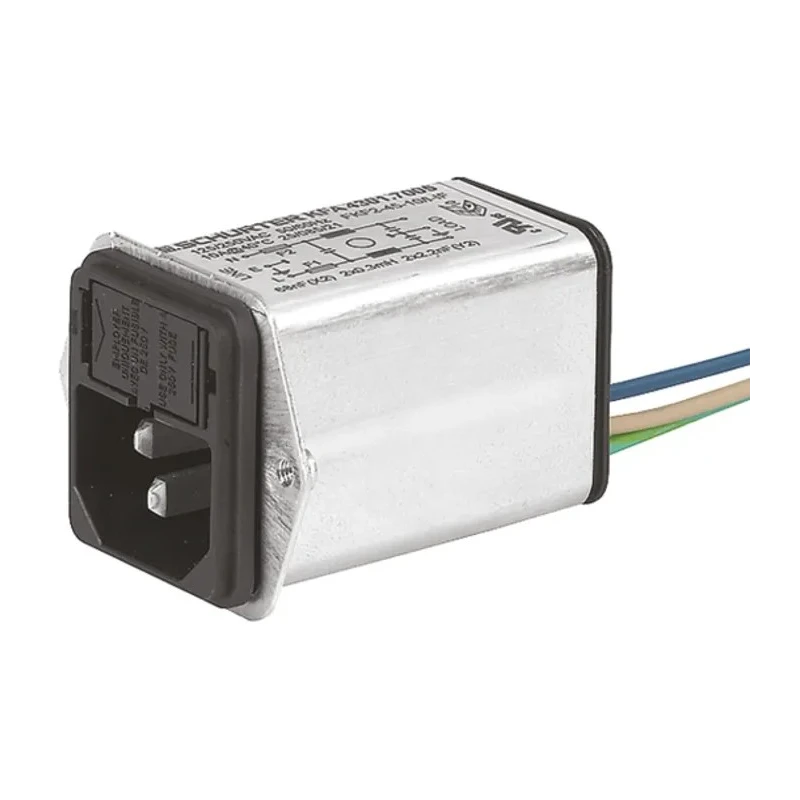

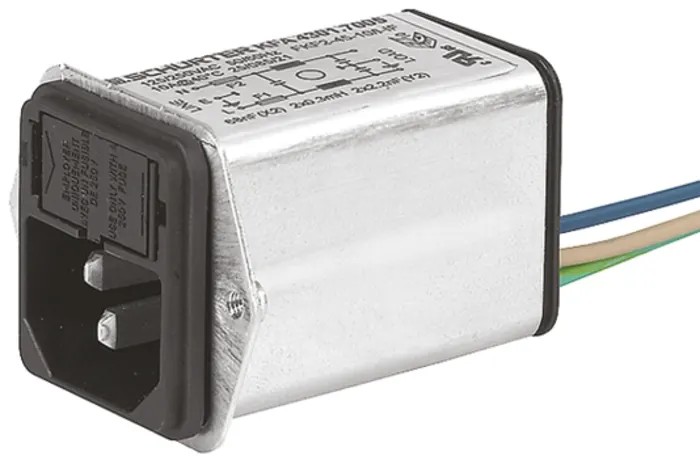

Schurter 1A 125V ac 250V ac Screw IEC Connector Male Quick Connect 4301.7001

Schurter 4301.7001 IEC Connector Male is a high-quality power entry module designed for secure and efficient electrical connections. Rated for 1A current and suitable for operating voltages of 125V ac and 250V ac, it ensures reliable power transfer in various industrial and electronic equipment. The connector features a screw mount type and quick connect termination for ease of installation and maintenance.

This product belongs to the Schurter KFA series, known for power entry modules incorporating line filters and rear mounting capabilities for optimized assembly. The series includes a V-Lock notch feature ensuring plug removal before fuse replacement, enhancing safety and maintenance convenience. The fuse holder supports fuse size 5 x 20 mm, although the fuse drawer is not included and must be ordered separately.

The connector is engineered for operation within temperatures ranging from -25°C to 85°C, capable of handling frequencies at 50 and 60Hz, making it versatile for global electrical standards. Its compact form factor with 44mm height and 51mm depth makes it suitable for metal plated plastic housing assemblies in industrial and laboratory environments.

The quick connect termination type (4.8 x 0.8 mm terminals) facilitates fast and secure wiring. Both the contact gender and connector gender are male, providing compatibility with standard IEC female connectors. It is ideal for use in electronics, power supply systems, industrial machinery, and laboratory equipment where IEC C14 male connector compliance is required.

Manufactured in Slovakia, this connector complies with IEC/UL 62368-1 safety standards and holds VDE and UL certifications, signifying compliance with rigorous international electrical safety requirements.

This IEC C14 male connector supports fuse size of 5 x 20 mm. Designed to operate at frequencies of 50 and 60Hz. Features a screw mount type for secure installation. Operating temperature ranges from -25°C to 85°C. Contact gender and connector gender are both male for compatibility.

Dimensions include 44mm height and 51mm depth for compact installation. Part of the Schurter KFA series with power entry modules and integral mains filter. Quick connect termination type allows fast and reliable wiring. Ideal for industrial electrical and electronic applications requiring IEC power connections.
