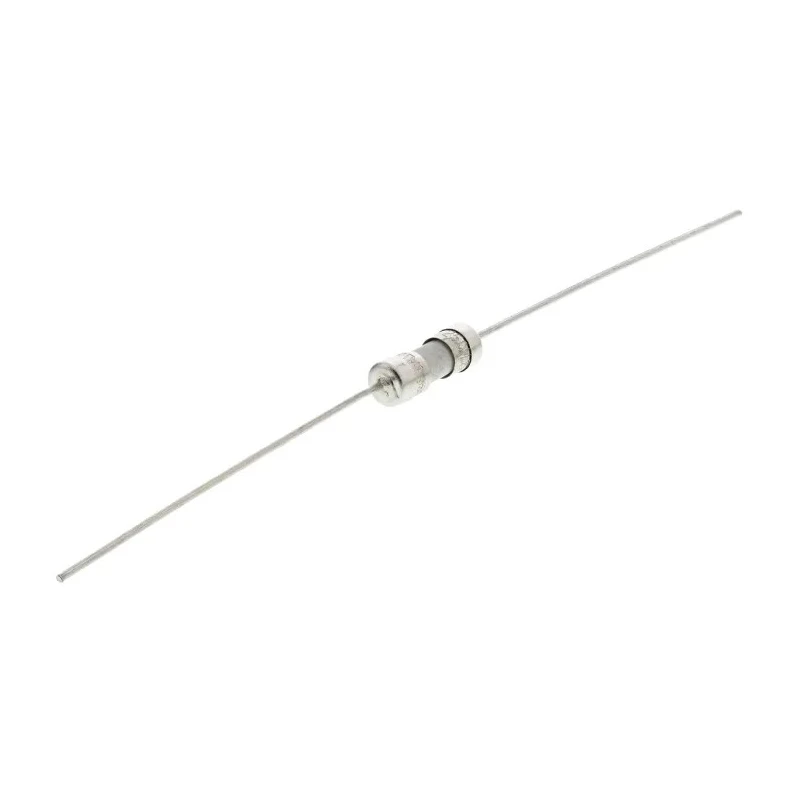

Schurter Non-Resettable Wire Ended Fuse Axial 1A 250V AC Ceramic Body SPT 3.6x10 8020.0514.PT

Schurter 8020.0514.PT Non-Resettable Wire Ended Fuse is a precision-engineered electrical component designed to provide reliable overcurrent protection in industrial, laboratory, and commercial electronic circuits. This axial fuse features a ceramic body material and a current rating of 1 ampere that is suitable for a broad range of low power applications where circuit protection is critical. Its operating voltage is rated at 250V AC, making it compatible with standard alternating current electrical systems.

The fuse leads are oriented axially, which facilitates convenient mounting onto printed circuit boards via through-hole technology (THT), enhancing manufacturing efficiency. The fuse body is made from durable ceramic, which ensures electrical insulation and withstands high temperature conditions from -20°C up to 70°C, thus ensuring robust performance across diverse environmental challenges.

Featuring a time delay characteristic, the fuse tolerates short transient current surges or startup currents without interrupting the circuit, minimizing nuisance failures while providing safe overcurrent protection. The breaking capacity of 35 amperes ensures that the fuse can reliably interrupt hazardous currents, protecting sensitive equipment and preventing circuit damage.

The fuse diameter is 3.9 mm and the fuse belongs to the Schurter SPT 3.6x10 series. It adheres to globally recognized standards including IEC 60127-3/4, UL 248-14, CSA C22.2 no. 248.14 and approvals such as UL Recognised and VDE Approved. Originating from China, this fuse meets rigorous quality standards for industrial and electronics manufacturing applications.

This component is ideal for use in electrical automation, manufacturing controls, household appliances, and laboratory equipment. It ensures safety and continuity in circuits by providing precise and reliable fuse protection.

This fuse has a current rating of 1 ampere suitable for low power electronic applications. The axial lead orientation allows for easy PCB or through-hole mounting. It operates at a voltage of 250 volts AC, complying with international standards.

The ceramic body construction provides high temperature durability and electrical insulation. Temperature operating range is from -20°C to 70°C for versatile environmental conditions. Time delay fuse characteristics enable temporary overloads without nuisance blowing.

Breaking capacity is 35 amperes ensuring safe interruption of fault currents. Diameter of the fuse is 3.9 mm, fitting standard circuit designs. Complies with standards IEC 60127-3/4, UL 248-14 and is UL recognised and VDE approved.
