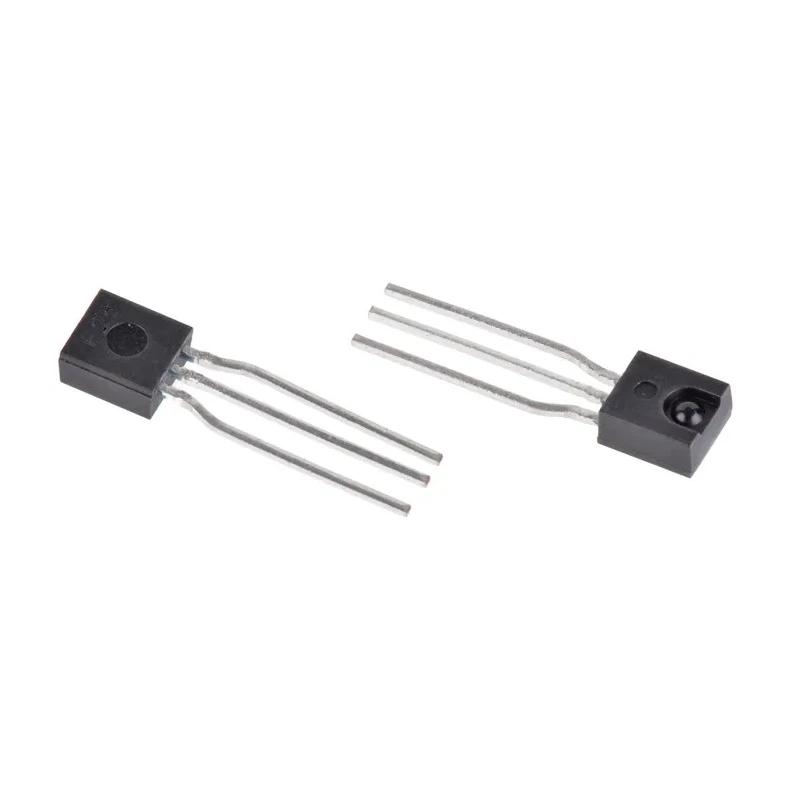

onsemi Infrared Photodetector Amplifier Unit, Through Hole Side Looker QSE159

Free Delivery in India | Lowest Global Shipping Charges

onsemi Infrared Photodetector Amplifier Unit, Through Hole Side Looker QSE159

Name: onsemi Infrared Photodetector Amplifier Unit, Through Hole Side Looker QSE159
Brand: onsemi
SKU: 374313
Price: 1.22 USD
Availability: InStock



Category Photodetector Amplifier Unit Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	5.13mm
Length	4.49mm
Model	QSE159
Packaging	Tape & Reel
Width	2.59mm
Mount Type	Through Hole
Series	QSE
Maximum Operating Temperature	85°C
Package Type	Side Looker
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Number of Pins	3
Output Signal Type	HTL Inverted
Wavelength of Peak Sensitivity	880nm
Spectrums Detected	Infrared
QSE159	Open-Collector, Inverter output
Package material and color	black epoxy

Key Features

The package is a black epoxy, through hole type with a side looker form factor.
Equipped with 3 pins and designed for HTL inverted output signal.
Operates reliably between -40°C and 85°C temperature range.
Features a medium wide reception angle of 50 degrees with a daylight filter for noise reduction.
Allows direct TTL/LSTTL interface compatibility facilitating easy use in electronic circuits.
Offers an open-collector inverter output suitable for various optoelectronic applications.
RoHS compliant ensuring adherence to environmental standards.
Compact dimensions measuring 4.49mm length, 5.13mm height, and 2.59mm width.

Product Description

onsemi QSE159 Infrared Photodetector Amplifier Unit is a high-performance optoelectronic component designed for infrared light detection and amplification. Featuring a black epoxy package with a through hole, side looker mounting style, this unit supports sensitive detection at a peak wavelength of 880nm. The device incorporates a daylight filter and a medium wide reception angle of 50° to enhance signal accuracy and reduce background interference.

Its open-collector, inverter output with 3 pins allows direct interfacing with TTL and LSTTL logic families, making it ideal for medical instrumentation, automation, and various sensing applications. The HTL inverted output signal ensures reliable data transmission in electronic circuits.

Manufactured to operate efficiently within the temperature range of -40°C to 85°C, the QSE159 is RoHS compliant, reflecting environmental compliance and quality standards. Its compact package dimension of 4.49mm length, 5.13mm height, and 2.59mm width makes it suitable for integration in densely packed electronic assemblies.

This product is suitable for industrial, medical, and laboratory use, where precision photodetection is critical. It is distributed on tape & reel packaging for efficient assembly line utilization. The onsemi QSE series is well-regarded for reliability in optoelectronic sensor applications.

The package material is black epoxy providing durability and protection. Side looker design optimizes sensor placement and light input angle. Through hole mount type facilitates secure PCB assembly. Three-pin configuration simplifies electronic interfacing.

Open-collector, inverter output supports flexible circuit design. RoHS compliance aligns with modern environmental regulations. Explore more from onsemi and related Photodetector Amplifier Units at EnvMart for advanced electronic component solutions catering to your industrial and laboratory needs.
