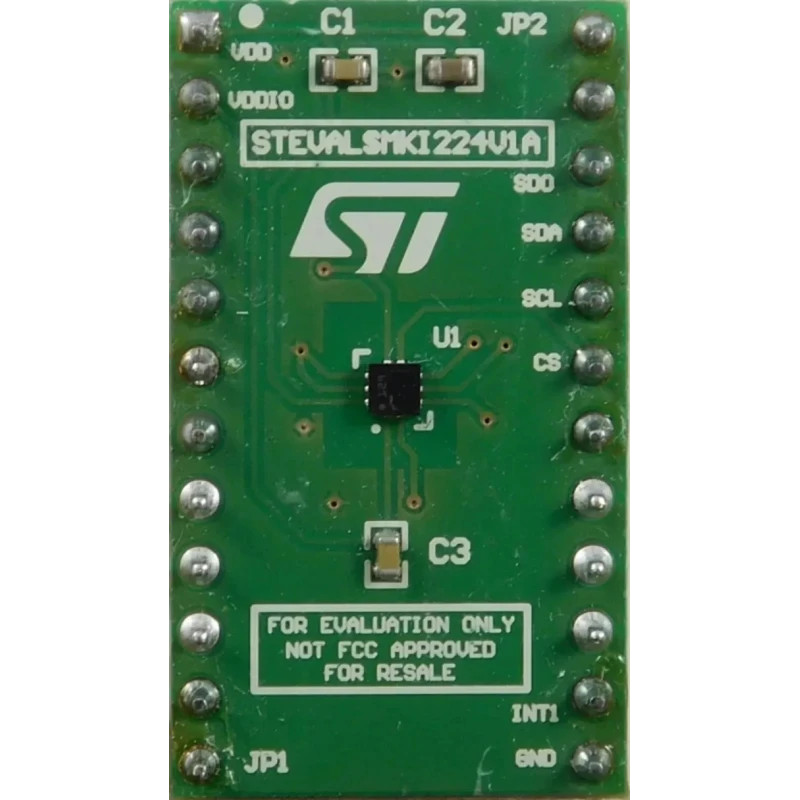

STMicroelectronics Evaluation Board for DIL 24 Socket STEVAL-MKI224V1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-MKI224V1 |
| For Use With | DIL 24 Socket |
| Standards/Approvals | RoHS |
| Kit Classification | Adapter Board |
| Kit Name | Evaluation Board |
Key Features
- The adapter board supports standard DIL24 socket with complete LPS22DF pinout.
- Includes required decoupling capacitors on the VDD power supply line for stability.
- Compatible with STEVAL-MKI109V3 motherboards for enhanced sensor interface.
- Supports connection to X-NUCLEO-IKS01A3 expansion board using Unicleo-GUI software.
- Designed for quick device evaluation and integration in embedded applications.
- Compliant with RoHS standards ensuring environmental safety.
Product Description
STMicroelectronics STEVAL-MKI224V1 evaluation board is an adapter designed to facilitate the evaluation of MEMS devices in the LPS22DF product family. It enables fast system prototyping and device testing through a standard DIL24 socket interface.
The adapter provides the full LPS22DF pinout and comes equipped with necessary decoupling capacitors on the VDD power supply line to ensure stable operation during evaluations. This board can be directly plugged into a DIL24 socket.
It is fully compatible with the STEVAL-MKI109V3 motherboards which feature a high-performance 32-bit microcontroller acting as a bridge between the sensor and a PC. This allows users to leverage downloadable graphical user interfaces like Unico-GUI or implement custom software routines for specialized applications.
Additionally, the STEVAL-MKI224V1 can be mounted onto the X-NUCLEO-IKS01A3 expansion board to further extend development capabilities. This flexibility facilitates use in diverse industrial, laboratory, and embedded system development scenarios involving MEMS sensor evaluation and integration.
The adapter supports standard DIL24 sockets and provides complete LPS22DF MEMS sensor pinout. Equipped with decoupling capacitors on the VDD supply line for noise reduction and power stability. Compatible with STEVAL-MKI109V3 motherboards for enhanced sensor interface and PC connectivity.
Supports graphical user interface tools like Unico-GUI for intuitive operation and data visualization. Can be plugged onto X-NUCLEO-IKS01A3 expansion boards to expand application and testing environments. RoHS compliant, meeting environmental and safety standards for electronic components.
This evaluation board is ideal for rapid prototyping and testing of MEMS sensors within industrial automation, robotics, HVAC, and embedded systems development. It streamlines integration and reduces development time by providing a ready-to-use, standardized hardware platform.
Explore more STMicroelectronics Evaluation Boards and relevant development tools in the EnvMart catalogue for your embedded design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STEVAL-MKI224V1 is an evaluation board designed to facilitate the evaluation of MEMS devices in the LPS22DF product family through a standard DIL24 socket interface.
It is fully compatible with the STEVAL-MKI109V3 motherboards, which feature a high-performance 32-bit microcontroller for enhanced sensor interface and PC connectivity.
It can be mounted onto the X-NUCLEO-IKS01A3 expansion board to further extend development capabilities.
The board supports connection to the Unico-GUI software, which provides graphical user interface tools for intuitive operation and data visualization.
It is compliant with RoHS standards, ensuring that it meets environmental safety requirements for electronic components.
The STEVAL-MKI224V1 is manufactured in India.
This product is classified as an adapter board within the evaluation board category.
It is designed for quick device evaluation and integration in embedded applications, streamlining development and reducing time to market.
It is suitable for industrial automation, robotics, HVAC, and embedded systems development involving MEMS sensor evaluation and integration.
The board provides the complete pinout for the LPS22DF MEMS sensor, facilitating easy connections for evaluation.
