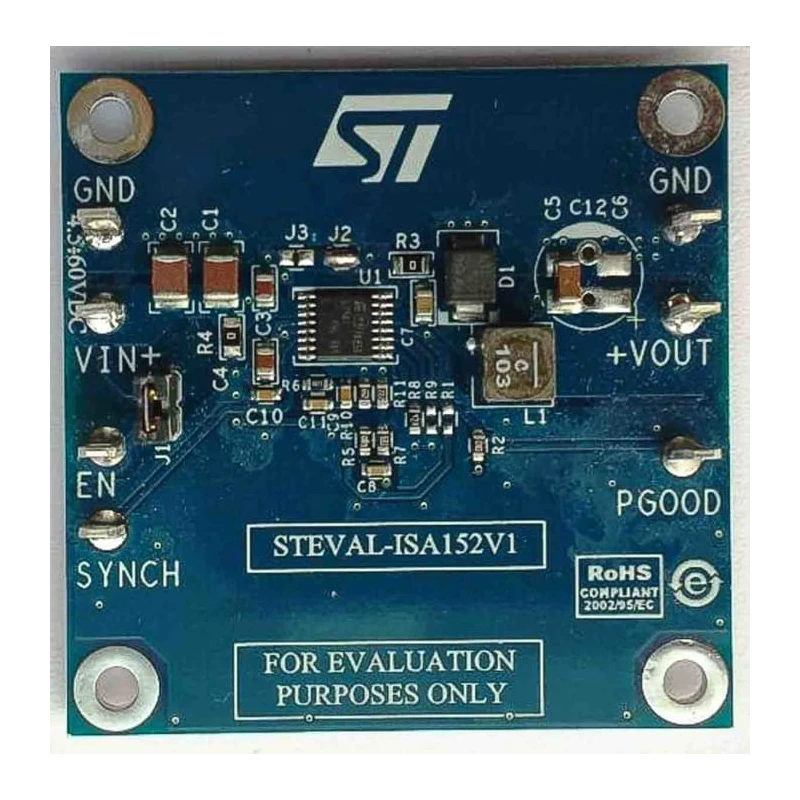

STMicroelectronics Power Management Development Kit Evaluation Board STEVAL-ISA152V1 for Switching Power Supply

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Power Management Development Kit Evaluation Board STEVAL-ISA152V1 for Switching Power Supply

Name: STMicroelectronics Power Management Development Kit Evaluation Board STEVAL-ISA152V1 for Switching Power Supply
Brand: STMicroelectronics
SKU: 421937
Price: 20.22 USD
Availability: InStock



Category Power Management Development Kit Brand STMicroelectronics Condition New

Specifications

Country of Origin	Italy
Brand	STMicroelectronics
Model	STEVAL-ISA152V1
For Use With	Switching Power Supply
Standards/Approvals	RoHS
Kit Classification	Evaluation Board
Featured Device	L7987
Kit Name	Evaluation Board

Key Features

The evaluation board features the L7987 step-down asynchronous switching regulator.
Output voltage adjustment starts from 0.8 V with low drop-out operation.
Provides up to 3 A of current delivery depending on application conditions.
Includes embedded power MOSFET and switch-over feature on VBIAS pin.
Adjustable soft-start, current limit, and switching frequency for application optimization.
Internal 250 kHz oscillator, externally adjustable up to 1.5 MHz.
Supports synchronization of two L7987 regulators in 180° out-of-phase configuration.
RoHS compliant and manufactured in Italy.

Product Description

The STMicroelectronics STEVAL-ISA152V1 power management development kit is an evaluation board designed for switching power supply applications. It features the L7987 regulator in an HTSSOP16 package, enabling efficient step-down voltage regulation.

The output voltage of this board can be set starting from 0.8 V, allowing flexibility for low voltage supplies while maintaining low drop-out and nearly 100% duty cycle operation, which maximizes efficiency.

The L7987 is a 61 V, 3 A step-down asynchronous switching regulator with an embedded power MOSFET capable of delivering up to 3 A depending on the load and application conditions. This design incorporates a switch-over feature on the VBIAS pin as well as light load management through pulse skipping, helping to optimize power conversion over varying load ranges.

Additional features include an adjustable soft-start mechanism to control inrush current, configurable current limit threshold for protection and safety, and a switching frequency that can be tuned to best suit the application requirements. The device contains an internal oscillator at 250 kHz which can be externally adjusted up to 1.5 MHz for more precise control.

For applications requiring synchronization, two L7987 regulators can be synchronized in a 180-degree out-of-phase configuration. This reduces the total input RMS current and enhances overall power efficiency.

The evaluation kit is RoHS compliant and manufactured in Italy. Ideal for industrial, laboratory, and development environments focusing on efficient power supply solutions. Supports various switching power supply designs requiring regulated outputs up to 3 A.

This board is suitable for engineers and developers working on power conversion and management systems who need a dependable and customizable solution for testing and evaluation. Explore more Power Management Development Kits and evaluation boards at EnvMart to find suitable components and development tools for your power electronics projects.
