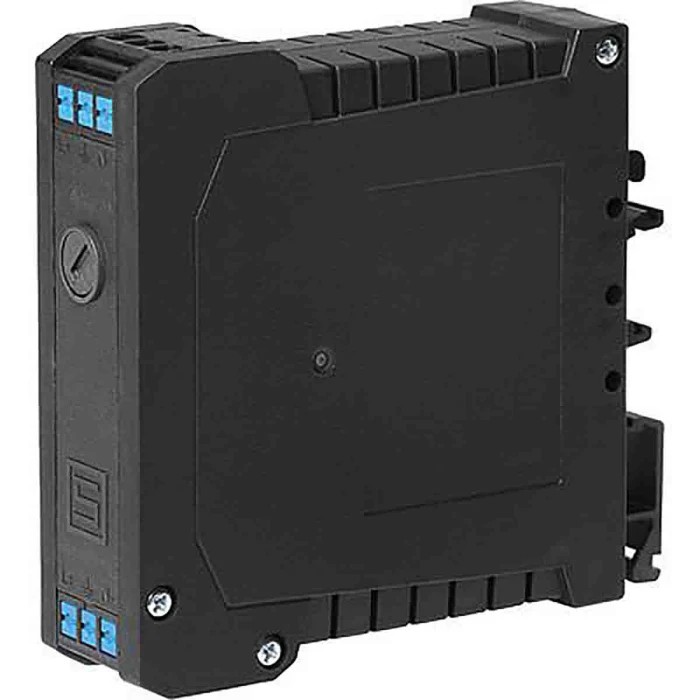

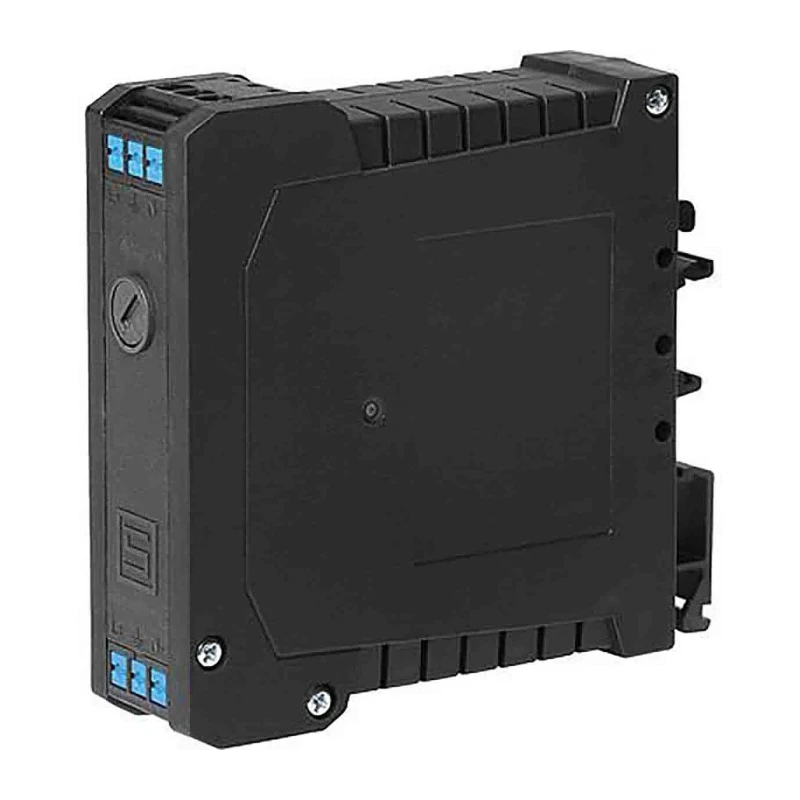

Schurter Single Phase 3 A 250V AC/DC DIN Rail Power Line Filter with Cage Clamp Terminal 3-103-706

Schurter 3-103-706 is a high-quality single-phase power line filter designed for DIN rail mounting, suitable for use in industrial and commercial electrical equipment. It provides efficient suppression of electromagnetic interference (EMI) and noise in AC and DC power lines, rated for a maximum current of 3 A and maximum voltage of 250 V AC/DC.

The filter utilizes a two-stage design delivering very high attenuation of interference voltages, enhancing protection for sensitive electric switchgear and control cabinets. It features cage clamp terminals for fast and secure wiring connections, supporting reliable installation and maintenance.

Designed to operate over a broad frequency range of 50 and 60 Hz, this filter performs well under a minimum temperature of -40°C and maximum temperature of 100°C, making it suitable for varied industrial environments. The product includes advanced protective features such as fuse holders, thermal circuit breakers, and surge protection to safeguard equipment against overcurrent and overvoltage conditions.

With compact dimensions of 25 mm length, 85 mm height, and 89.5 mm depth, it fits efficiently into DIN rail systems within electrical switch and control cabinets. The low leakage current of 500 μA and power loss of 1.3 W ensures energy-efficient operation, while the 98 mΩ resistance maintains circuit integrity.

This power line filter complies with recognized international standards IEC 61140, RoHS, UL, and VDE, certifying its safety and quality. It is broadly applicable in industrial, commercial, manufacturing, and laboratory environments requiring robust EMI filtering and equipment protection.

Operates at 50 and 60 Hz frequencies for versatile use. Features a two-stage filter design for high attenuation of interference voltages. Equipped with cage clamp terminals for quick and secure wiring. Supports overcurrent and overvoltage protection including fuse holder and thermal circuit breaker options.

Compact size with dimensions 25 mm (length), 85 mm (height), and 89.5 mm (depth) suitable for electric switch and control cabinets. Constructed for a wide operating temperature range from -40°C to 100°C. Has a leakage current of 500 μA and a power loss of 1.3 W for efficient performance.

Meets IEC 61140, RoHS, UL, and VDE standards ensuring safety and compliance. Offers broad industrial applications including electrical switches, control cabinets, and EMI-sensitive environments. For industrial power line filtering needs, explore more options in our Power Line Filter category at EnvMart.
