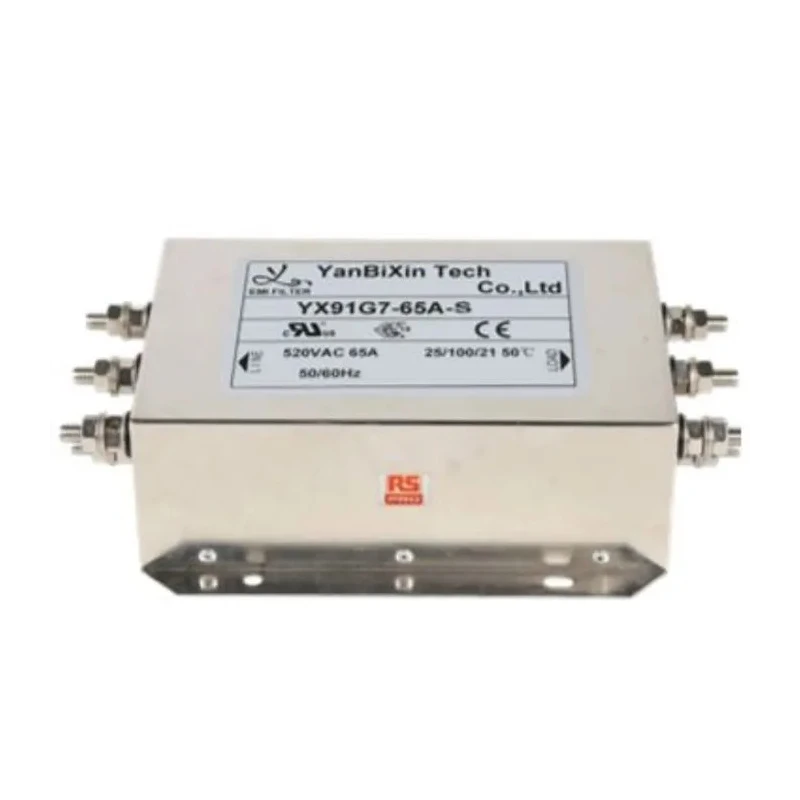

RS PRO 65 A 520V AC 50Hz, 60 Hz Chassis Mount Power Line Filter, Screw Termination, 3 Phase 237-8768

RS PRO model 237-8768 is a high-quality power line filter designed for 3 phase electrical systems operating at 65 amperes and 520 volts AC with frequency support for 50Hz and 60Hz. The chassis mount installation with screw termination provides a robust and secure connection suitable for industrial, medical, and commercial electrical equipment requiring EMI / RFI suppression to prevent external radio frequency interference.

This power line filter effectively reduces conducted frequencies and transient voltage spikes caused by power outages, short circuits, or lightning, thereby protecting sensitive electronics and enhancing device longevity. It features a compact design with dimensions measuring 200 mm in length, 168 mm depth, and 69.5 mm height, enabling easy integration into existing installations.

The product has a capacitance rating of 1 μF and inductance of 0.8 mH with a leakage current of 4.9 mA, ensuring compliance with stringent electrical safety and EMC standards including CSA C22.2 No.8, EN 60939, IEC, and UL1283.

The filter operates reliably in temperature ranges from -25°C to 100°C and comes with a resistance of 470 kΩ. This robust construction assures performance even in challenging electromagnetic environments commonly found in industrial manufacturing, water treatment, and commercial applications.

Available as part of the RS PRO series, this product caters to engineers and technicians looking for dependable EMI filtering for 3 phase power systems with screw terminations and chassis mount configuration.

Provides effective filtering of conducted radio frequencies and transient voltage spikes. Suitable for industrial and medical electrical equipment requiring EMC compliance. Features screw termination style for secure electrical connections.

Compact chassis mount design with dimensions 200mm length, 168mm depth, and 69.5mm height. Rated maximum current of 65 amperes and maximum voltage of 520 volts AC. Operating frequency supports both 50 Hz and 60 Hz power systems.

Leakage current rating of 4.9 milliamps ensuring safety in sensitive applications. Designed to withstand operating temperatures from -25°C to 100°C. Compliance with CSA C22.2 No.8, EN 60939, IEC, and UL1283 standards. Constructed with a single stage filter and capacitance of 1 microfarad.
