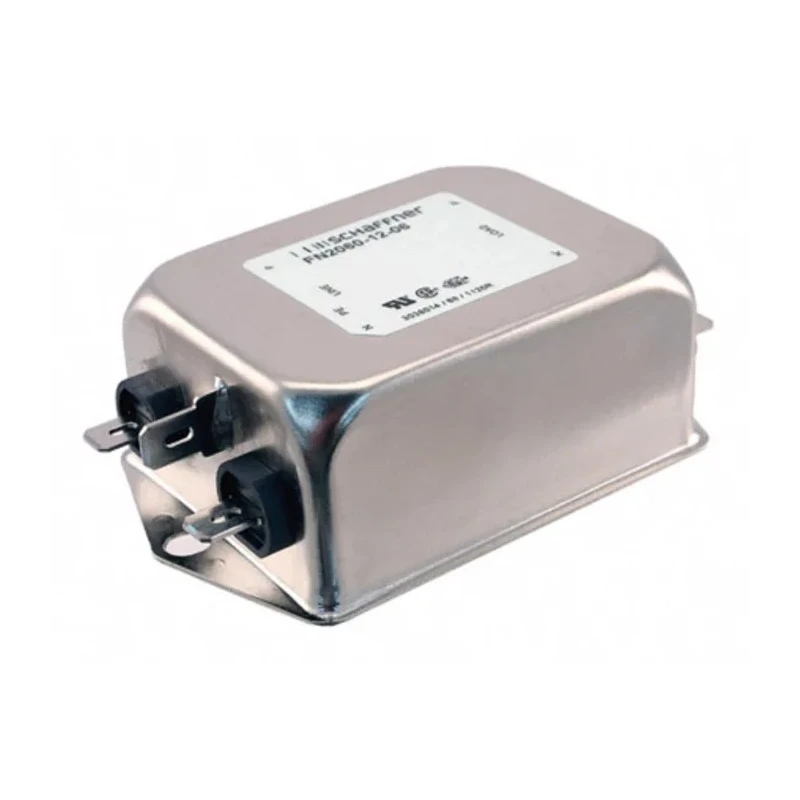

Schaffner Chassis Mount EMI Filter 12 A 250V ac/dc 400Hz 2-Stage Fast-On Termination FN2060
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schaffner |
| Height | 54mm |
| Length | 85mm |
| Model | FN2060 |
| Depth | 30.3mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 400Hz |
| Series | FN2060 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 2 |
| Resistance | 470kΩ |
| Capacitance | 470nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 12A |
| Number of Phases | 1 |
| Leakage Current | 734μA |
| Maximum Voltage | 250V ac/dc |
| Inductance | 580μH |
| Termination Style | Fast-On |
Key Features
- Two-stage filter construction improves attenuation and reduces emissions effectively.
- Chassis mount with aluminium case ensuring robust mechanical protection.
- Rated operating temperature from -25°C to 100°C for reliable performance.
- Features a capacitance of 470nF and inductance of 580μH for superior filtering.
- Leakage current is low at 734μA enhancing safety in sensitive electronics.
- Fast-On 0.25in terminals enable quick and secure electrical connections.
- Suitable for industrial, automation, medical equipment, and machinery noise suppression.
- High resistance 470kΩ to support stable operation under electrical stress.
Product Description
Schaffner FN2060 chassis mount EMI filter is engineered for industrial and electronic equipment requiring superior electromagnetic interference suppression. It supports a maximum current of 12 A and voltage rating of 250V ac/dc at an operating frequency of 400Hz. The robust aluminium chassis mount design with fast-on termination allows for easy and secure installation in various industrial, medical, and automation applications.
The two-stage filter design provides enhanced attenuation of both differential and common mode noise, improving operational reliability and safety. It operates reliably over a wide temperature range from -25°C to 100°C and includes a capacitance of 470nF, inductance of 580μH, and low leakage current of 734μA to meet demanding EMI filtering requirements.
Compact physical dimensions (85 mm length x 54 mm height x 30.3 mm depth) make it well-suited for space-constrained control panels and machinery. The 0.25-inch fast-on terminals speed up installation and maintenance.
Two-stage chassis mount filter for enhanced EMI suppression. Aluminium casing for durability and thermal stability. High saturation resistance chokes for sustained performance. Suitable for electrical, industrial automation, medical, and noisy equipment.
Compact design with fast-on 1-phase termination.
This product is widely used in industrial machinery, building automation, healthcare devices, and any application requiring effective power line noise filtering. Schaffner's FN2060 series provides a reliable solution for maintaining electromagnetic compatibility and equipment safety.
Explore more Power Line Filters in our Electronics & Electricals category for diverse industrial and commercial EMI filter solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schaffner FN2060 EMI filter has a maximum current rating of 12 A.
This model is rated for a maximum voltage of 250V ac/dc.
The operating frequency for this EMI filter is 400Hz.
The dimensions of this unit are 85 mm in length, 54 mm in height, and 30.3 mm in depth.
This model utilizes a chassis mount design for installation.
The capacitance of this EMI filter is 470nF.
The inductance for the FN2060 is 580μH.
The leakage current for this EMI filter is low at 734μA.
This unit operates reliably within a temperature range of -25°C to 100°C.
The filter features Fast-On 0.25 inch terminals for quick and secure connections.
This EMI filter is suitable for industrial, automation, medical equipment, and machinery noise suppression.
The FN2060 is manufactured in India.
