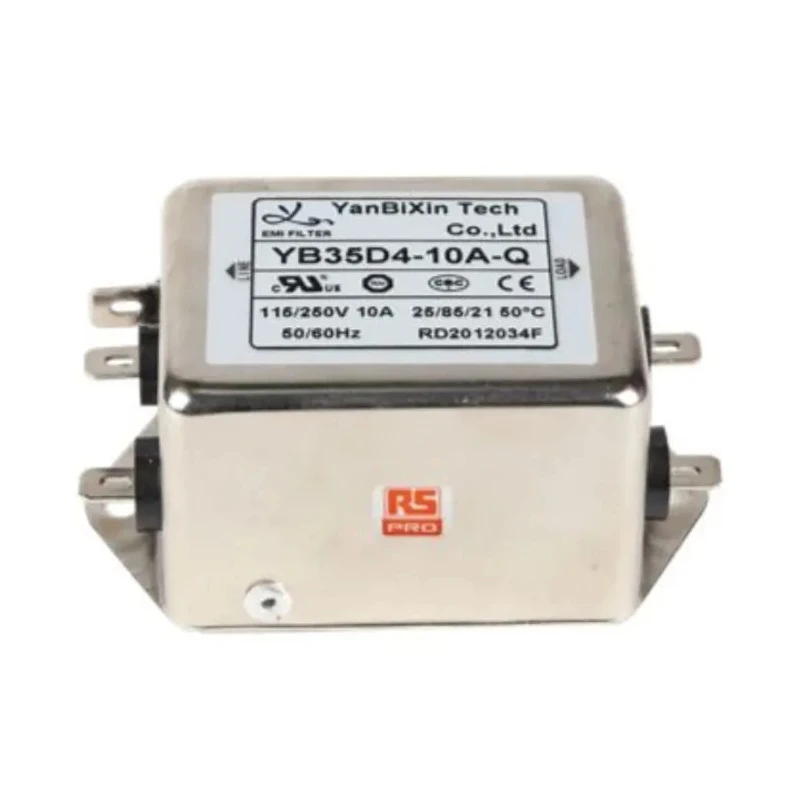

RS PRO 10 A 250V AC 50Hz 60Hz Chassis Mount Power Line Filter Fast-On 1 Phase 237-8724

The RS PRO 237-8724 is a high-quality chassis mount power line filter designed for suppressing electromagnetic interference in electrical and electronic devices. Rated for a maximum current of 10A and voltage of 250V AC, it operates efficiently across 50Hz and 60Hz frequencies, making it suitable for global applications.

This power line filter features a compact chassis mount design with fast-on termination style, ensuring straightforward integration into small and medium-sized machines, household equipment, and sensitive electronic instruments such as medical devices and industrial controls. The filter is constructed with two stages for improved attenuation of unwanted radio frequencies and transient voltage spikes that could otherwise damage circuitry.

Capacitance is rated at 0.47μF, paired with an inductance of 5.5mH, enabling effective noise reduction and reliable signal integrity. The maximum operating temperature rating of 85°C and minimum of -25°C allow it to perform reliably in diverse environments. Leakage current is controlled at 2.4mA, supporting safety compliance.

The filter’s high resistance of 330kΩ and adherence to UL1283 safety standards provide assurance of quality and dependability in critical applications. Manufactured in China, the RS PRO 237-8724 meets various EMC test requirements to prevent electromagnetic interference from impairing equipment function.

Designed to reduce conducted radio frequency interference and protect electronics. Compact chassis mounting with fast-on termination for easy installation. Single-phase filter with two-stage construction for enhanced performance.

Rated for maximum temperature of 85°C and minimum operating temperature of -25°C. Suitable for medical and industrial equipment requiring EMI filtering standards compliance. Features capacitance of 0.47μF and inductance of 5.5mH for effective filtering.

Leakage current rating of 2.4mA ensures safety and compliance. Resistant design with 330kΩ resistance and UL1283 approval.

This RS PRO Power Line Filter is an essential component for ensuring the reliable operation of equipment in industrial, laboratory, medical, HVAC, and commercial settings. Proper EMI filtering extends the lifespan of devices and maintains their performance by preventing damage and interference.
