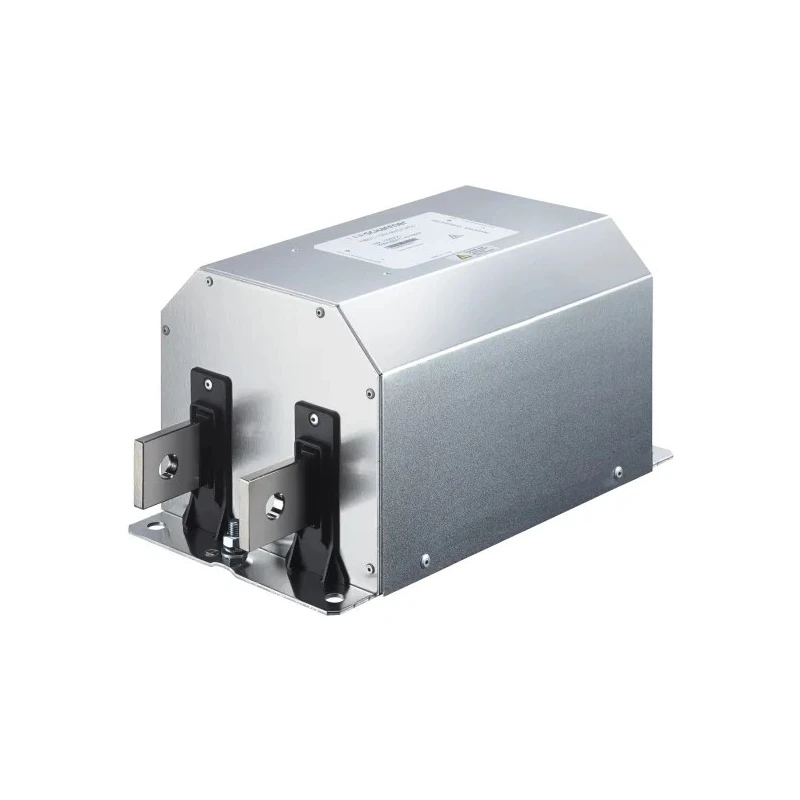

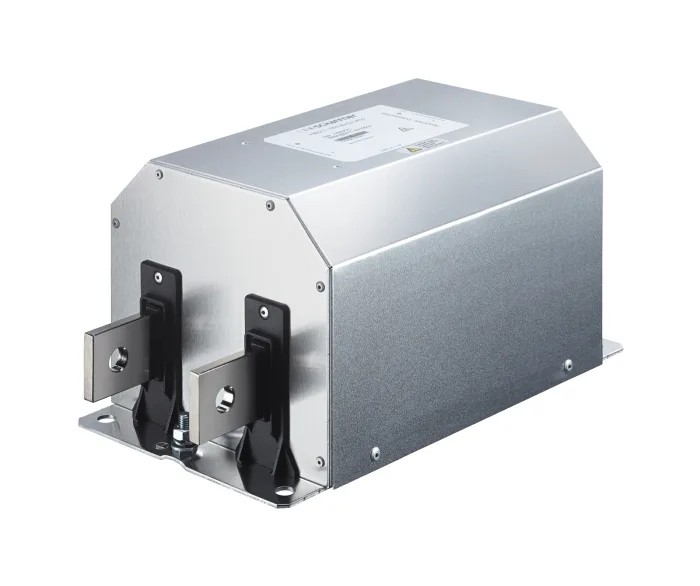

Schaffner Chassis Mount EMI Filter 1 Phase Busbar 250A 1000V dc Power Line Filter FN2211

Free Delivery in India | Lowest Global Shipping Charges

Schaffner Chassis Mount EMI Filter 1 Phase Busbar 250A 1000V dc Power Line Filter FN2211

Name: Schaffner Chassis Mount EMI Filter 1 Phase Busbar 250A 1000V dc Power Line Filter FN2211
Brand: Schaffner
SKU: 414405
Price: 702.25 USD
Availability: InStock



Category Power Line Filter Brand Schaffner Condition New

Specifications

Country of Origin	Thailand
Brand	Schaffner
Height	135mm
Length	220mm
Model	FN2211
Depth	160mm
Mount Type	Chassis Mount
Series	FN2211
Maximum Operating Temperature	100°C
Number Of Stages	1
Minimum Operating Temperature	-40°C
Maximum Current	250A
Number of Phases	1
Maximum Voltage	1000V dc
Termination Style	Busbar
Power Loss	15W

Key Features

Offers effective reduction of high-frequency conducted emissions on solar panel side.
Helps prevent premature aging of solar panels caused by HF stray and leakage currents.
Compact industrial standard solution for DC filtering between inverter and panel.
Ensures compliance with international EMC regulations.
Suitable for installations requiring chassis mount and busbar connectivity.
Operates reliably over a temperature range from -40°C to 100°C.
Low power loss of 15W supports energy-efficient operation.
Physical dimensions optimized for installation with length 220mm, height 135mm, and depth 160mm.

Product Description

Schaffner FN2211 chassis mount EMI filter is a high-performance Power Line Filter engineered for 1 phase DC systems, specifically designed for integration between photovoltaic (PV) inverters and solar panels. Featuring a busbar termination style, this filter effectively mitigates high-frequency conducted emissions generated on the panel side of the system, which reduces electromagnetic interference and enhances overall system reliability.

By significantly minimizing the potential for high-frequency interference radiation, the FN2211 filter plays a crucial role in preventing premature aging of solar panels due to stray and leakage currents. This contributes to extended panel lifetime and consistent energy output efficiency in solar power installations.

The filter operates efficiently under a broad temperature range, from -40°C to 100°C, maintaining low power loss of 15 watts to ensure minimal energy wastage. With compact dimensions of 220mm length, 135mm height, and 160mm depth, it offers a space-saving solution for industrial and renewable energy setups requiring chassis mounting.

Designed to comply with international electromagnetic compatibility (EMC) requirements, this Schaffner FN2211 EMI filter aids in meeting stringent EMC regulations and standards without compromising on performance. Its robust build and electrical specifications make it suitable for industrial, solar power, and other renewable energy applications.

Effective reduction of high-frequency conducted emissions towards solar panels. Helps prevent premature solar panel aging caused by electromagnetic interference. Compact chassis mount design with busbar termination for easy installation.

Rated for 250A current and 1000V dc voltage supports high power systems. Low power loss enhances energy efficiency. Wide operational temperature range from -40°C to 100°C. Optimized size for space-constrained installations.

This Schaffner EMI filter is ideal for use in solar photovoltaic systems, industrial power electronics, and other applications requiring reliable noise suppression and compliance with EMC standards. For extensive product options and expert support, explore the EMI filter category at EnvMart.
