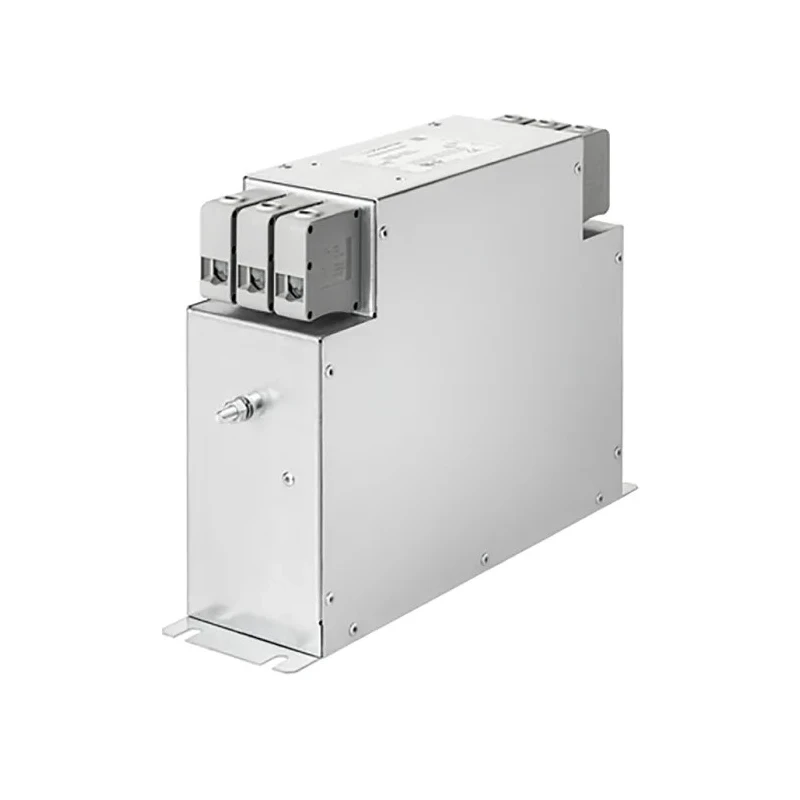

Schaffner Chassis Mount EMC Filter 3 Phase 10 A 530V AC 60Hz Terminal Block FN3288
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schaffner |
| Height | 120mm |
| Length | 185mm |
| Model | FN3288 |
| Depth | 40mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 60Hz |
| Series | FN3288 |
| Maximum Operating Temperature | 100°C |
| Capacitance | 2.2nF |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 10A |
| Number of Phases | 3 |
| Leakage Current | 5.9mA |
| Maximum Voltage | 530V ac |
| Termination Style | Terminal Block |
| Power Loss | 7.1W |
Key Features
- Designed for chassis mounting with terminal block termination.
- Offers high attenuation performance suitable for industrial EMI filtering.
- Features a compact book-style housing for space-saving installation.
- Operating temperature ranges from -40°C to 100°C for broad environmental tolerance.
- Capacitance rating of 2.2nF supports efficient noise suppression.
- Leakage current is low at 5.9mA ensuring safety and compliance.
- Power loss during operation is 7.1W balancing efficiency and performance.
- Robust construction ideal for machinery, motor drives, and inverter systems.
Product Description
Schaffner FN3288 is a high-performance chassis mount EMC filter specifically designed for 3-phase industrial electrical systems. It supports a maximum current of 10A and a voltage rating of 530V AC at 60Hz frequency, making it suitable for diverse applications including machinery, motor drives, converters, and inverters.
This filter features a compact, space-saving book-style housing that simplifies installation in constrained spaces close to equipment. Termination is via solid safety terminal blocks to ensure reliable electrical connections and ease of wiring.
Designed to operate effectively between -40°C and 100°C, the FN3288 provides robust and reliable EMI attenuation with a capacitance of 2.2nF and leakage current of only 5.9mA. The power loss is maintained at a low 7.1W to optimize energy efficiency without compromising filtering performance.
This filter is an ideal choice for applications in industrial automation, motor drives, power converters, and other electrical equipment requiring effective EMC mitigation with dependable chassis mounting and terminal block termination.
Chassis mount design with Terminal Block for secure installation and wiring. Compact book-style housing for space-efficient layouts. Supports 3-phase systems with 10A current and 530V AC voltage rating. Operates reliably in temperatures from -40°C to 100°C.
Low leakage current of 5.9mA for safety and compliance. Power loss limited to 7.1W balancing performance and efficiency. Highly effective EMI attenuation suitable for industrial applications.
Explore Schaffner EMC Filters and other electronics components at EnvMart for reliable power quality and EMC solutions suitable for industrial, laboratory, manufacturing, and commercial environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FN3288 filter supports a maximum current rating of 10A.
It operates at a maximum voltage of 530V AC.
The capacitance rating of the FN3288 is 2.2nF, which supports efficient noise suppression.
This model operates reliably in temperatures ranging from -40°C to 100°C.
The leakage current for the FN3288 is low at 5.9mA, ensuring safety and compliance.
It features a chassis mount design for secure installation and wiring.
The power loss during operation is limited to 7.1W, balancing efficiency and performance.
The dimensions of the FN3288 are 185mm in length, 120mm in height, and 40mm in depth.
The FN3288 uses a terminal block termination style for reliable electrical connections.
This model operates at an operating frequency of 60Hz.
It is suitable for applications in industrial automation, motor drives, power converters, and other electrical equipment requiring effective EMC mitigation.
The FN3288 is manufactured in India.
