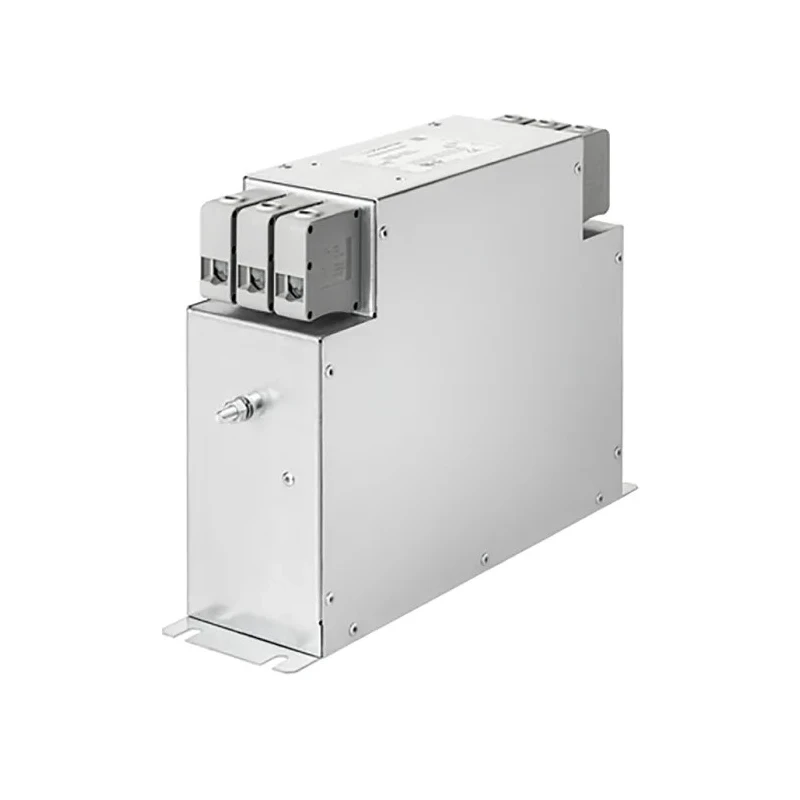

Schaffner Chassis Mount EMC Filter Terminal Block 3 Phase 10A 530V AC 60Hz FN3288

Schaffner FN3288 is a high-quality chassis mount EMC filter designed for three-phase power systems, rated for 10 amperes at 530 volts AC and operating frequency of 60Hz. This filter features a terminal block termination style and offers reliable electromagnetic interference attenuation in a compact book-style housing.

The FN3288 series offers state-of-the-art EMI attenuation utilizing an innovative filter topology, making it suitable for diverse industrial applications including machinery, motor drives, inverters, and converters. Its slim design provides space-saving installation options, ideal for environments where footprint is restricted.

This filter operates efficiently within a temperature range of -40°C to 100°C and has a low leakage current of 5.9 milliamps, fulfilling tough industrial electrical safety and performance requirements. The power loss is rated at a minimal 13.2 watts, ensuring energy-efficient operation.

Featuring solid safety connector blocks, the terminal block style allows for secure and easy wiring connections. The device dimensions are 185 mm in length, 120 mm in height, and 40 mm in depth, making it suitable for chassis mounting in compact installations.

The Schaffner FN3288 filter meets standard attenuation performance levels specific to this series and is well-suited for industrial power line filtering applications where electromagnetic compatibility is critical.

Use cases for this EMC filter include industrial automation, manufacturing equipment, HVAC systems, motor drives, and power quality enhancement in 3-phase electrical networks. Designed for EMC attenuation with a space-saving book-style housing.

Supports a maximum current of 10 amperes and maximum voltage of 530 volts AC. Features solid safety connector blocks with Terminal Block mounting. Compact dimensions of 185mm length, 120mm height, and 40mm depth enable easy integration.

Operates reliably in temperatures ranging from -40°C to 100°C. Power loss of 13.2 watts ensures efficient filtering performance. Leakage current rated at 5.9 mA suitable for standard industrial applications. Meets standard attenuation performance typical of the FN3288 series.

Ideal for use in machinery, motor drives, inverters, and converters. Three-phase design tailored for industrial power line filtering. Explore more Schaffner EMC filter solutions and other industrial electrical components available at EnvMart.
