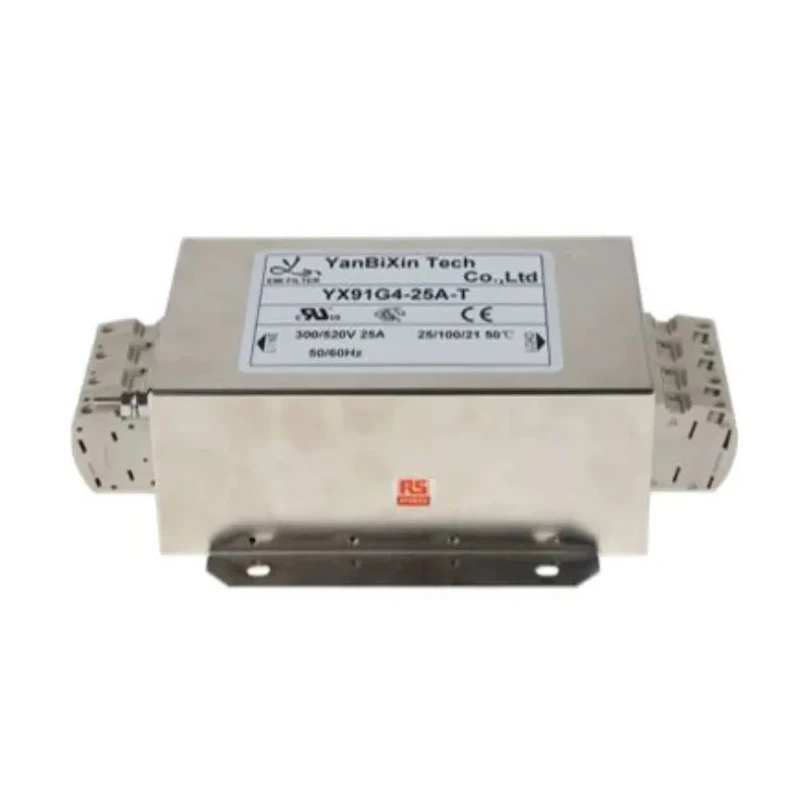

RS PRO Chassis Mount Power Line Filter 25 A 520V AC 50Hz, 60Hz Terminal Block 3 Phase 237-8763

RS PRO 237-8763 Power Line Filter is a chassis mounted component designed to provide protection against electromagnetic interference in three-phase electrical systems. Rated with a maximum current capacity of 25 A and a voltage rating of 520V AC, it operates efficiently over both 50 and 60 Hz frequencies. The terminal block termination style allows easy and secure connection to power lines.

This filter is engineered with a single stage design that significantly reduces conducted radio frequency interference (RFI) between equipment and power lines, thereby ensuring stable operation and prolonging device life. It features a capacitance of 1μF and inductance of 2.6mH, contributing to effective filtering performance. With a low leakage current of 269mA, it operates safely within electrical systems.

Operating temperature ranges from -25°C to 85°C, making it suitable for use in a variety of industrial and commercial environments. The filter complies with multiple standards including CSA C22.2 No.8, EN 60939, IEC, and UL1283, ensuring quality and safety adherence.

Physical dimensions are 200mm in length, 170mm in depth, and 80mm in height, fitting compactly within control panels and machinery mounts. This product is ideal for use in medical, industrial, HVAC, manufacturing, and household equipment to mitigate interference from electromagnetic noise and transient voltage spikes caused by power outages or lightning strikes.

Compact chassis mounting design for easy integration with electrical equipment. Rated maximum current of 25 A and operating voltage of 520V AC. Single stage filter providing effective RFI reduction and protection. Operating temperature range from -25°C to 85°C for reliable performance.

Features capacitance of 1μF and inductance of 2.6mH for robust filtering. Low leakage current of 269mA providing safe operation. Complies with CSA C22.2 No.8, EN 60939, IEC, and UL1283 standards. Dimensions of 200mm length, 170mm depth, and 80mm height.

Ensures reliable performance in medical, industrial, and home equipment.

RS PRO products are rigorously tested to meet demanding industry standards, providing engineers worldwide with high quality and reliable components. Explore the Electronics & Electricals category on EnvMart for a wide range of certified Power Line Filters and EMI protection components.
