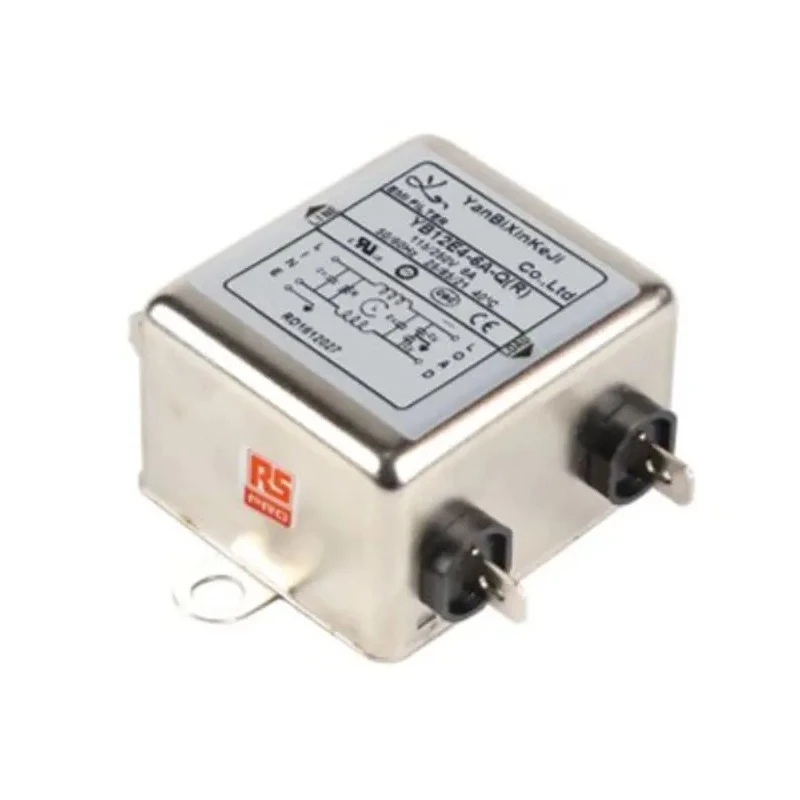

RS PRO 6 A 250V AC 400Hz Chassis Mount Power Line Filter Fast-On 1 Phase 237-8705
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 30mm |
| Length | 70.5mm |
| Model | 237-8705 |
| Depth | 50mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 400Hz |
| Maximum Operating Temperature | 85°C |
| Number Of Stages | 1 |
| Resistance | 1mΩ |
| Capacitance | 0.1μF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 6A |
| Number of Phases | 1 |
| Leakage Current | 800μA |
| Maximum Voltage | 250V ac |
| Standards/Approvals | UL 1283 |
| Termination Style | Fast-On |
Key Features
- Designed for single-phase power line filtering to reduce conducted interference.
- Compact chassis mount construction with dimensions 70.5mm length, 50mm depth, and 30mm height.
- Operating temperature range from -25°C to 85°C supports harsh environments.
- Low leakage current of 800μA minimizes unwanted current flow.
- Capacitance of 0.1μF and resistance of 1mΩ ensures efficient filtering performance.
- Meets UL 1283 safety standard with IEC/EN60601-1 compliance for fuse holder variants.
- Ideal for protecting medical, industrial, and household equipment from RFI and transient voltage spikes.
- Quick-connect Fast-On termination (6.3 x 0.8 mm) simplifies installation.
Product Description
RS PRO 237-8705 Power Line Filter is a high-quality single-phase filter designed to provide 6 A maximum current handling and operate safely at 250V AC with a 400Hz frequency. This chassis mount filter uses Fast-On termination for reliable electrical connections, compactly built to dimensions of 70.5mm length, 50mm depth, and 30mm height.
It effectively reduces electromagnetic interference (EMI) by significantly filtering out conducted radio frequencies that can impair electronic device performance. The filter protects sensitive equipment from transient voltage spikes caused by power outages, short circuits, and lightning strikes, prolonging the lifespan and reliability of connected devices.
The device features a capacitance of 0.1μF and very low resistance of 1mΩ, enabling efficient filtering with minimal energy loss. Its leakage current of just 800μA ensures minimal unwanted current flow during operation. The filter is rated to operate in a temperature range spanning -25°C to 85°C, suitable for demanding industrial and commercial environments.
Safety is certified to UL 1283 standards, and variants with fuse holders comply with IEC/EN60601-1 requirements for medical equipment safety including clearance, leakage, and hipot testing. The quick-connect Fast-On (6.3 x 0.8 mm) terminations facilitate easy and secure installation.
This filter is recommended for small to medium machinery, household appliances, medical devices, and industrial equipment requiring reliable RFI suppression. It ensures devices remain protected from external EMI even in unpredictable electromagnetic conditions.
Manufactured in China, this product comes new and ready to integrate into your systems to enhance equipment safety and electromagnetic compatibility. Built to provide effective EMI suppression in industrial and commercial applications.
Compact and robust chassis mount design for space-efficient installation. Ensures compliance with international safety standards. Supports reliable operation even in environments with frequent voltage spikes. Easy to connect with standardized Fast-On terminations.
Explore the RS PRO range for reliable Power Line Filtering solutions engineered to meet diverse application needs and ensure system robustness.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this power line filter is 6 A.
It operates at a maximum voltage of 250V AC and a frequency of 400Hz.
The dimensions of the chassis mount filter are 70.5mm in length, 50mm in depth, and 30mm in height.
The filter has a capacitance of 0.1μF and a resistance of 1mΩ.
The leakage current is 800μA, which minimizes unwanted current flow during operation.
The operating temperature range is from -25°C to 85°C, making it suitable for harsh environments.
It meets the UL 1283 safety standard, and variants with fuse holders comply with IEC/EN60601-1 requirements.
The filter features a quick-connect Fast-On termination style (6.3 x 0.8 mm) for easy installation.
It is suitable for protecting medical devices, industrial equipment, household appliances, and small to medium machinery from RFI and transient voltage spikes.
This power line filter has a single stage design.
This product is manufactured in China.
This filter uses a chassis mount type for installation.
