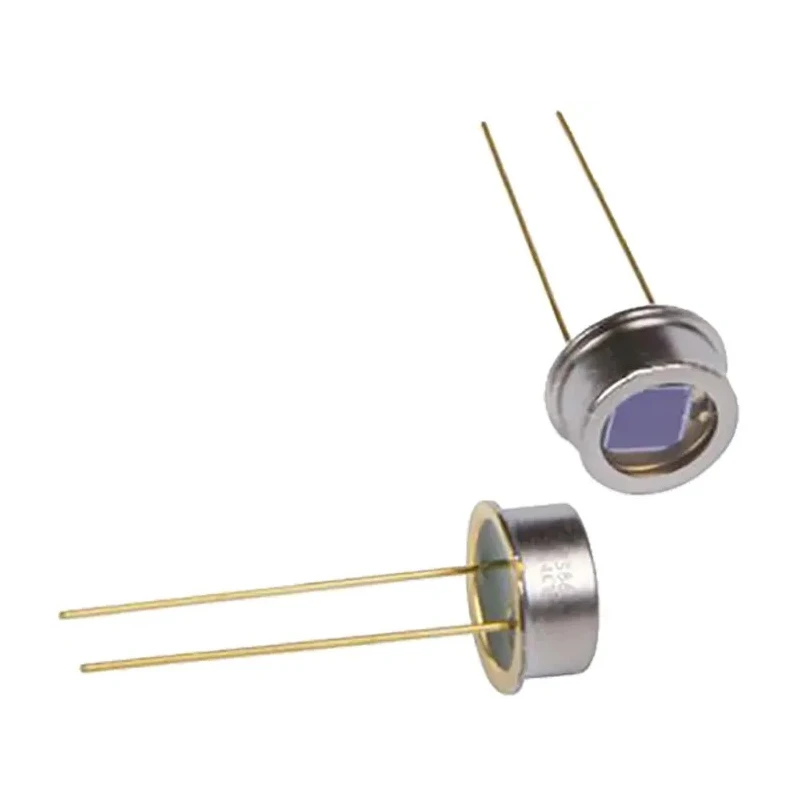

Hamamatsu Photonics Infrared Visible Light Photodiode, 65 ° Half Sensitivity Angle, Through Hole TO-5 Package S1223
Specifications
| Country of Origin | Japan |
|---|---|
| Diameter | 9.1mm |
| Brand | Hamamatsu Photonics |
| Height | 4.1mm |
| Length | 8.2mm |
| Model | S1223 |
| Packaging | Tape & Reel |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | S1223 |
| Short Circuit Current | 6.3μA |
| Maximum Operating Temperature | 85°C |
| Package Type | TO-5 |
| Minimum Operating Temperature | -25°C |
| Polarity | Positive |
| Dark Current | 0.5nA |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Fall Time | 0.6ns |
| Wavelength of Peak Sensitivity | 960nm |
| Spectrums Detected | Infrared, Visible Light |
| Breakdown Voltage | 30V |
| Minimum Wavelength Detected | 320nm |
| Maximum Wavelength Detected | 1100nm |
| Angle of Half Sensitivity | 65 ° |
Key Features
- Detects infrared and visible light spectra with peak sensitivity at 960 nm.
- Features a 65-degree angle of half sensitivity for versatile optical measurements.
- Constructed with TO-5 metal package for durability and thermal stability.
- Through-hole mount type simplifies PCB integration.
- Operates reliably from -25°C to 85°C ambient temperatures.
- Offers fast response times with typical rise and fall times of 0.6 nanoseconds.
- Low dark current of 0.5 nanoamperes ensures accurate photometric readings.
- Short circuit current typical of 6.3 microamperes optimizes signal strength.
Product Description
Hamamatsu Photonics S1223 is a silicon PIN photodiode tailored for applications requiring precise optical detection of visible to near-infrared light, such as optical measurement and analytical instruments. It is engineered for high-speed photometry and reliable performance in demanding industrial and laboratory environments.
The device features a TO-5 metal can package with a 65-degree half sensitivity angle, enabling effective light reception with minimal interference. Its through-hole mounting ensures robust PCB attachment suitable for manufacturing and prototyping.
Operating temperature ranges from -25°C to 85°C allow deployment in various environmental conditions. The photodiode exhibits a low dark current of only 0.5 nA, enhancing measurement accuracy by minimizing noise, and a short circuit current of 6.3 μA supporting strong signal output.
Typical rise and fall times of 0.6 nanoseconds facilitate high-speed response suitable for dynamic light detection tasks. Compliance with RoHS standards confirms its environmentally responsible construction.
Detects infrared and visible light with peak sensitivity at 960 nm. TO-5 metal package provides durability and thermal management. Through-hole mounting supports secure PCB integration. Fast response with 0.6 ns rise and fall times.
Low dark current enhances photometric precision. Operational between -25°C to 85°C ambient temperatures. Short circuit current of 6.3 μA for optimized signal strength. RoHS compliant for safe industrial and commercial use.
This photodiode is well suited for industrial automation, laboratory instrumentation, optical sensing, and analytical applications within HVAC, manufacturing, water treatment, agricultural technologies, and other commercial sectors where reliable light detection is crucial.
Explore a wide selection of Photodiode sensors and complementary electronic components in the Electronics & Electricals category at EnvMart for your next project or product development.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The photodiode has a peak sensitivity at a wavelength of 960 nm, making it suitable for detecting infrared and visible light spectra.
This model operates reliably within a temperature range of -25°C to 85°C, allowing for use in various environmental conditions.
The dark current of this photodiode is 0.5 nA, which helps enhance measurement accuracy by minimizing noise.
It features a through-hole mounting type, which simplifies PCB integration and ensures a secure attachment.
The typical rise and fall times for this photodiode are both 0.6 nanoseconds, facilitating high-speed response for dynamic light detection tasks.
The short circuit current is typically 6.3 μA, which supports strong signal output during operation.
The TO-5 package has a diameter of 9.1 mm, a height of 4.1 mm, and a length of 8.2 mm, making it compact for various applications.
It can detect wavelengths ranging from 320 nm to 1100 nm, covering both infrared and visible light spectra.
Yes, it is RoHS compliant, indicating that it meets environmental safety standards for industrial and commercial use.
The angle of half sensitivity for this photodiode is 65 degrees, which enhances its versatility in optical measurements.
This photodiode has 2 pins, which are typical for through-hole mounting applications.
The country of origin for this photodiode is Japan, reflecting its manufacturing standards and quality.
