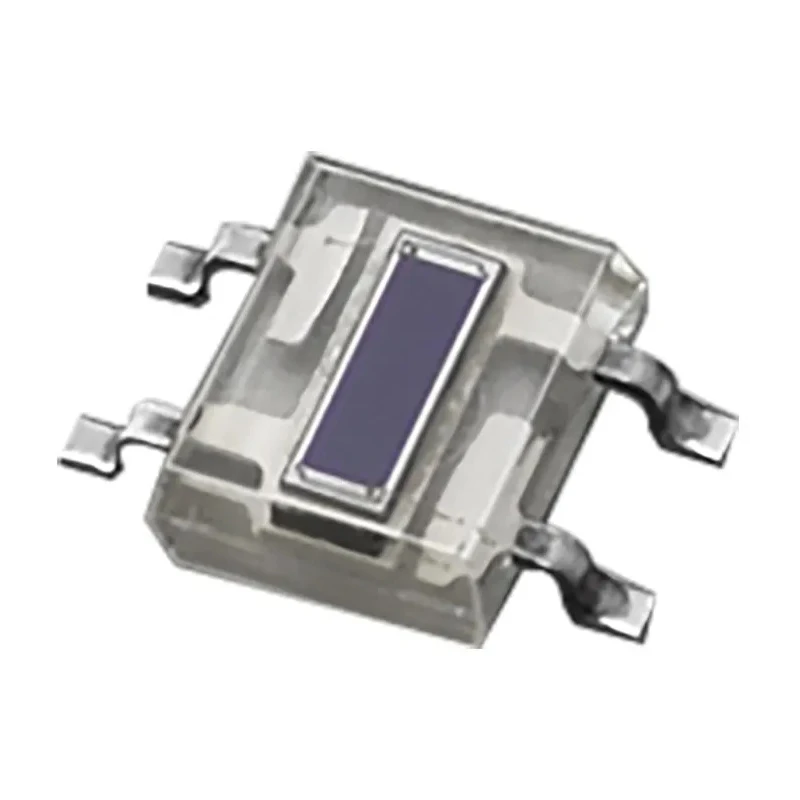

Hamamatsu Photonics Infrared Photodiode Surface Mount, 65 Degree Angle of Half Sensitivity S4584-06
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Hamamatsu Photonics |
| Height | 1.8mm |
| Length | 4.1mm |
| Model | S4584-06 |
| Packaging | Tape & Reel |
| Width | 5mm |
| Mount Type | Surface |
| Series | S4584 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -25°C |
| Polarity | Positive |
| Dark Current | 0.5nA |
| Standards/Approvals | RoHS |
| Number of Pins | 4 |
| Typical Rise Time | 10μs |
| Typical Fall Time | 0.6ns |
| Wavelength of Peak Sensitivity | 960nm |
| Spectrums Detected | Infrared |
| Breakdown Voltage | 30V |
| Minimum Wavelength Detected | 320nm |
| Maximum Wavelength Detected | 1100nm |
| Angle of Half Sensitivity | 65 ° |
Key Features
- Compact surface mount package ideal for space-sensitive applications.
- Detects infrared spectrum with peak sensitivity at 960 nm.
- Wide operating temperature range from -25°C to 85°C ensures reliability.
- Features fast response with typical fall time of 0.6 ns and rise time of 10 μs.
- Small dark current of 0.5 nA contributes to low noise performance.
- Four-pin configuration allows positive polarity operation.
- Supplied in tape & reel packaging suitable for automated assembly.
- Robust build with a breakdown voltage rating of 30 V.
Product Description
Hamamatsu Photonics S4584-06 Infrared Photodiode Surface Mount device is designed for precision position sensing applications where high resolution and reliability are required. It operates predominantly in the infrared spectrum with a peak sensitivity wavelength of 960 nm and detects wavelengths ranging from 320 nm to 1100 nm. The device features a surface mount package that is compact, measuring 5 mm in width, 4.1 mm in length, and 1.8 mm in height, making it suitable for tight spaces in electronic assemblies.
The photodiode has an angle of half sensitivity of 65 degrees, which ensures effective detection across a wide field. It has a typical fall time of 0.6 nanoseconds and a rise time of 10 microseconds, providing fast signal response compatible with high-speed electronics. The device exhibits a low dark current of 0.5 nanoamperes, minimizing noise and improving detection accuracy.
Operating temperature ranges from -25°C to 85°C, making this photodiode reliable for industrial, automotive, optical proximity sensing, range finding, and autofocus camera systems. It is supplied in tape & reel packaging, facilitating ease of incorporation into automated production lines. The breakdown voltage of 30 volts ensures robustness under normal operating conditions. The photodiode is RoHS compliant, highlighting its environmentally safe design.
Compact surface mount design for versatile applications. Infrared spectrum detection with peak sensitivity at 960 nm. Fast response times with sub-nanosecond fall time. Wide operational temperature range for industrial use.
Low noise performance due to minimal dark current. Four-pin positive polarity configuration. Suitable for optical proximity switches and autofocus cameras. Robust design with 30 V breakdown voltage rating. RoHS certified ensuring compliance with environmental standards.
Origin: Japan, indicating high manufacturing quality.
This sensor is suitable for applications in industrial electronics, measuring and testing instruments, automotive sensing systems, and optical positioning solutions. It provides reliable performance in demanding environments requiring precise infrared detection.
Explore related Photodiode products to meet various electronic component needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak sensitivity wavelength of the S4584-06 photodiode is 960 nm, allowing it to effectively detect infrared light.
This model operates within a temperature range of -25°C to 85°C, making it suitable for various industrial applications.
The typical rise time is 10 microseconds, and the fall time is 0.6 nanoseconds, providing fast signal response.
The angle of half sensitivity for this photodiode is 65 degrees, ensuring effective detection across a wide field.
The dark current for this model is 0.5 nanoamperes, which helps minimize noise and improve detection accuracy.
It is supplied in tape & reel packaging, which is suitable for automated assembly processes.
The dimensions are 5 mm in width, 4.1 mm in length, and 1.8 mm in height, making it compact for space-sensitive applications.
The breakdown voltage rating for the S4584-06 is 30 volts, ensuring robustness under normal operating conditions.
This photodiode is suitable for applications in industrial electronics, automotive sensing systems, and optical proximity sensing.
Yes, the S4584-06 is RoHS compliant, indicating it meets environmental safety standards.
This model features a four-pin configuration, allowing for positive polarity operation.
It can detect wavelengths ranging from 320 nm to 1100 nm, covering a broad spectrum in the infrared range.
