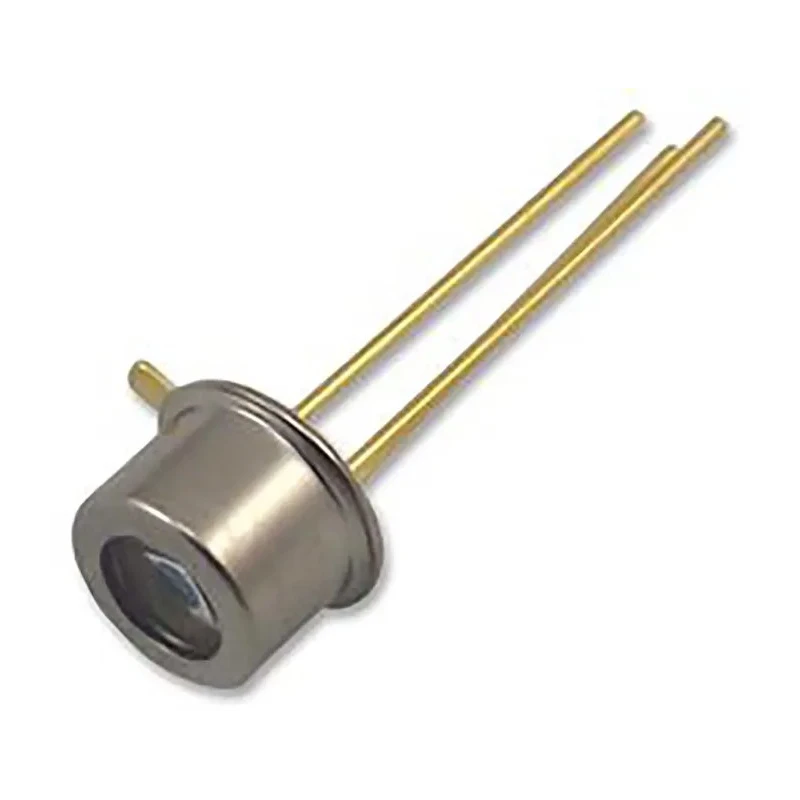

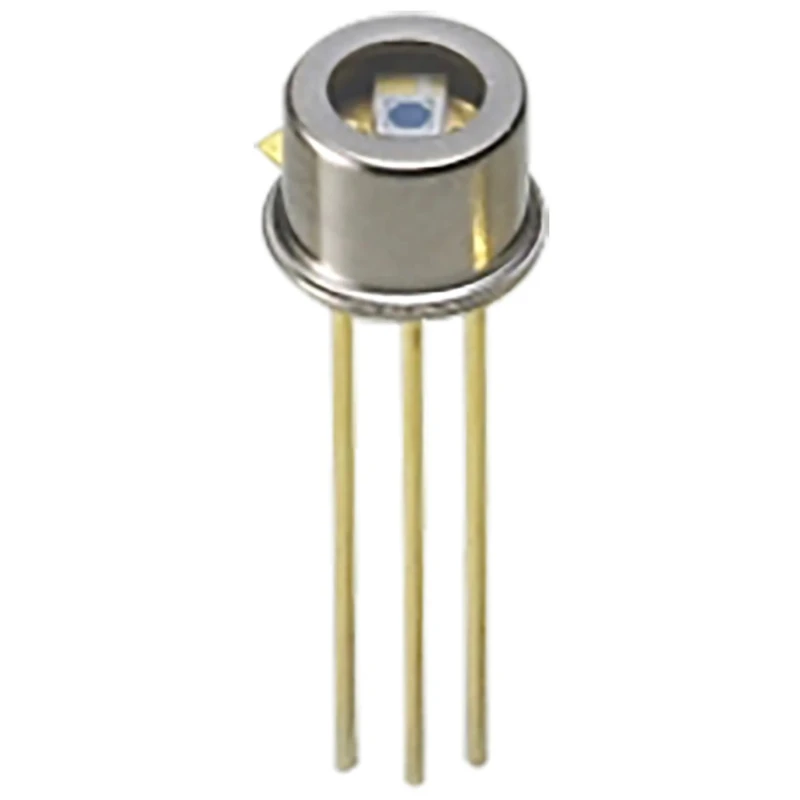

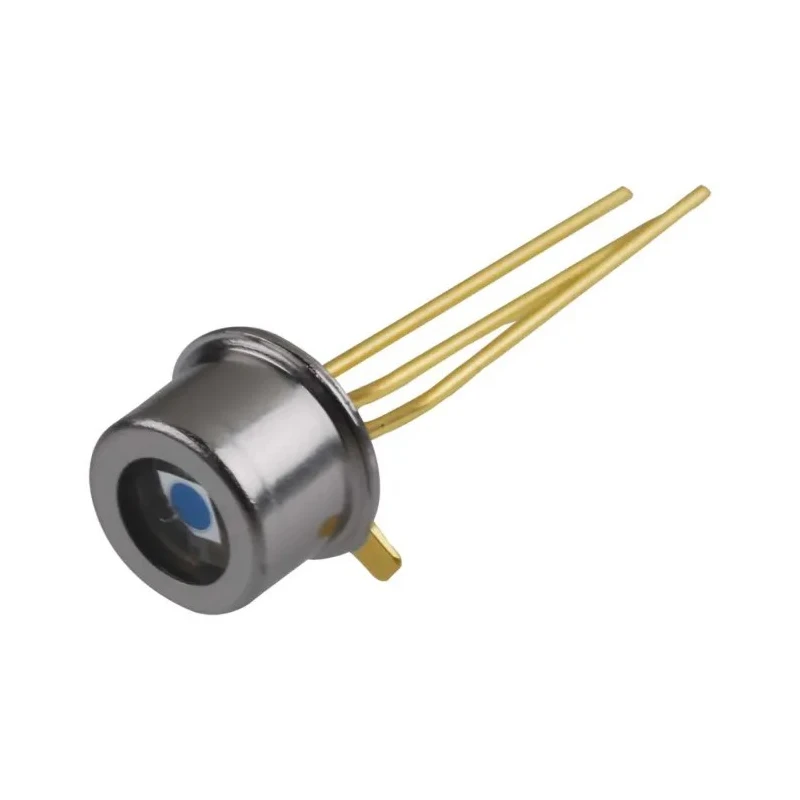

Hamamatsu Photonics Infrared Visible Light Photodiode TO-18 Through Hole 3 Pins 60° Angle S5971

Free Delivery in India | Lowest Global Shipping Charges

Hamamatsu Photonics Infrared Visible Light Photodiode TO-18 Through Hole 3 Pins 60° Angle S5971

Name: Hamamatsu Photonics Infrared Visible Light Photodiode TO-18 Through Hole 3 Pins 60° Angle S5971
Brand: Hamamatsu Photonics
SKU: 142338
Price: 12.63 USD
Availability: InStock



Category Photodiode Brand Hamamatsu Photonics Condition New

Specifications

Country of Origin	Japan
Diameter	5.4mm
Brand	Hamamatsu Photonics
Height	3.6mm
Length	8.2mm
Model	S5971
Packaging	Tape & Reel
Width	6mm
Mount Type	Through Hole
Series	S5971
Short Circuit Current	1μA
Maximum Operating Temperature	85°C
Package Type	TO-18
Minimum Operating Temperature	-25°C
Polarity	Positive
Dark Current	0.1nA
Standards/Approvals	RoHS
Number of Pins	3
Typical Fall Time	0.6ns
Wavelength of Peak Sensitivity	900nm
Spectrums Detected	Infrared, Visible Light
Breakdown Voltage	25V
Minimum Wavelength Detected	320nm
Maximum Wavelength Detected	1060nm
Angle of Half Sensitivity	60 °

Key Features

Detects wavelengths from 320nm to 1060nm including visible and near-infrared light.
Equipped with a positive polarity and 1μA short circuit current.
Offers a breakdown voltage of 25V with a dark current of 0.1nA for low noise performance.
High-speed response with typical rise and fall times of 0.6ns each.
Compact metal TO-18 package measuring 8.2mm length, 6mm width, and 3.6mm height.
Meets RoHS standards ensuring environmentally friendly manufacturing.
Operates reliably within a temperature range of -25°C to 85°C.
Designed for through hole mounting with tape & reel packaging for automated assembly.

Product Description

Hamamatsu Photonics S5971 Infrared Visible Light Photodiode is a silicon PIN photodiode designed for detecting visible to near-infrared light with peak sensitivity at 900nm. This device utilizes a TO-18 metal package with a through hole mount and 3 pins, suitable for high-speed optical fiber communication and photometry applications requiring fast response times.

The photodiode features a half sensitivity angle of 60° and offers low dark current of 0.1nA, enabling high precision measurements with minimal noise. Its breakdown voltage of 25V and positive polarity make it versatile for various circuit designs. The typical rise and fall times of 0.6ns each ensure quick signal detection and processing.

Measuring 8.2mm in length, 6mm in width, and 3.6mm in height with a diameter of 5.4mm, the compact TO-18 package provides superior mechanical protection and efficient heat dissipation. Compliance with RoHS assures that the product adheres to environmental safety standards.

Operating temperature range spans from -25°C to 85°C, making the S5971 reliable for demanding industrial environments including telecommunications, laboratory instrumentation, and manufacturing settings where precise light detection is critical.

Detects wavelengths from 320nm to 1060nm covering visible and infrared spectra. High reliability and fast response times of 0.6ns rise and fall. Low noise photodiode with dark current of only 0.1nA. Robust TO-18 metal package and through hole mounting offer ease of integration.

Suitable for optical fiber communication and high-speed photometry. Operates safely from -25°C to 85°C in various industrial applications. Packaged in tape & reel for automated manufacturing processes.

Choose Hamamatsu Photonics S5971 photodiode for your precision optical detection needs in industrial, laboratory, and communication system applications. Explore more in the Photodiode section at EnvMart for compatible components and accessories.
