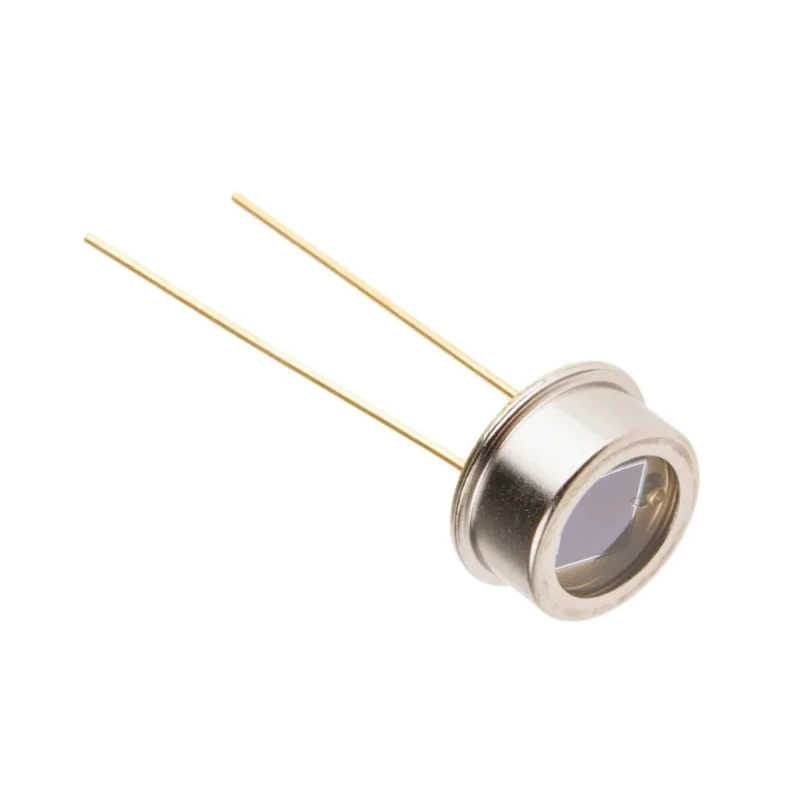

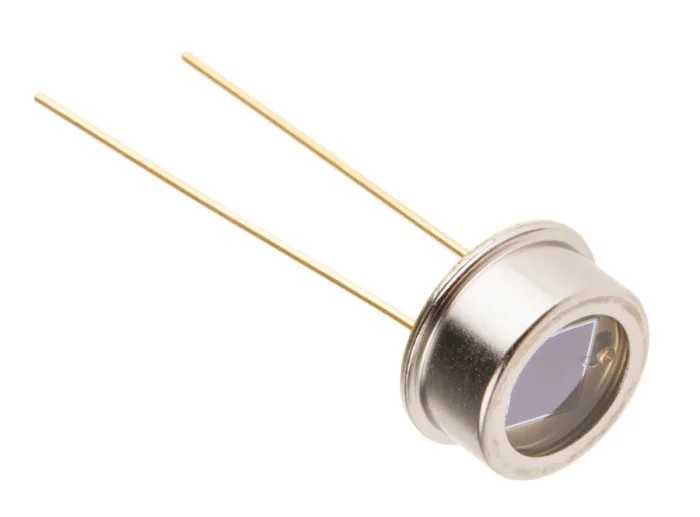

Hamamatsu Photonics Silicon PIN Photodiode Visible Light Infrared Ultraviolet 960nm Peak Sensitivity TO-5 Through S1223-01

Hamamatsu Photonics S1223-01 silicon PIN photodiode is engineered for precision photometry across visible, infrared, and ultraviolet light spectrums, featuring a peak sensitivity at 960nm. Packaged in a TO-5 metal can, this photodiode supports through-hole mounting, making it compatible with various electronic assemblies.

Designed with a wide operational temperature range from -40 to +100 °C, the S1223-01 ensures dependable performance in industrial, laboratory, and analytical instrument environments. Its fast response times, with both rise and fall times at 0.6 nanoseconds, enable high-speed optical measurements critical for advanced applications.

The photodiode exhibits a low dark current of 0.1 nanoamperes, contributing to minimal noise and accurate signal detection. It withstands up to 25 volts breakdown voltage and features a 60° angle of half sensitivity, balancing directional sensitivity with a broad detection range.

Manufactured in Japan with strict adherence to RoHS standards, the device promises high reliability and environmental compliance. Dimensionally, its 9.1mm by 9.1mm footprint with a 4.1mm height provides compactness ideal for integration in various devices including optical measurement equipment and analytical instrumentation.

S1223-01 photodiodes are suitable for applications such as optical measurement equipment, analytical devices, and other scientific instrumentation requiring precise, high-speed light detection from ultraviolet through infrared wavelengths. The device's excellent sensitivity and stability make it favored in research and industrial settings.

Compact TO-5 package designed for through-hole mounting ensures reliable installation. Wide operating temperature range from -40 to +100 °C suitable for diverse environments. Offers fast response with typical rise and fall times of 0.6ns for precise measurements.

Low dark current of 0.1nA and a breakdown voltage of 25V for enhanced performance. High sensitivity with 60° half sensitivity angle enabling accurate photometry. Constructed in Japan with RoHS compliance ensuring quality and environmental standards.

Measures 9.1mm in length and width, and 4.1mm in height, compact for integration. 2 pins polarity forward photodiode suitable for high precision applications. Explore our extensive Photodiode category for more optical sensing solutions from leading brands like Hamamatsu Photonics here at EnvMart.
