ams OSRAM Infrared Ultraviolet Visible Light Photodiode Surface Mount Clear Epoxy ±60 ° SFH 2400

Free Delivery in India | Lowest Global Shipping Charges

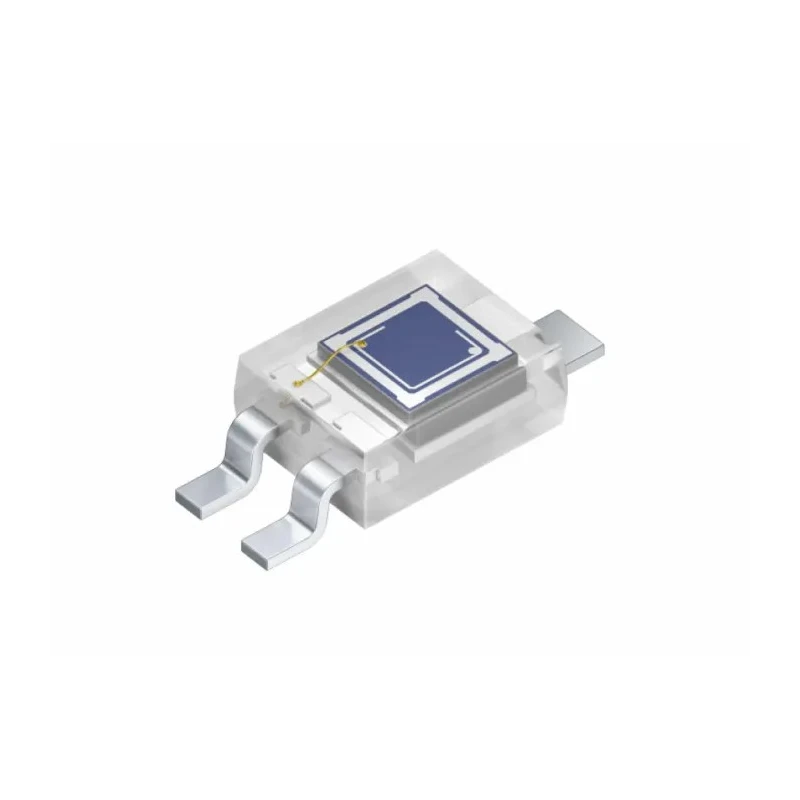

ams OSRAM Infrared Ultraviolet Visible Light Photodiode Surface Mount Clear Epoxy ±60 ° SFH 2400

Name: ams OSRAM Infrared Ultraviolet Visible Light Photodiode Surface Mount Clear Epoxy ±60 ° SFH 2400
Brand: ams OSRAM
SKU: 413896
Price: 0.79 USD
Availability: InStock



Category Photodiode Brand ams OSRAM Condition New

Specifications

Country of Origin	China
Brand	ams OSRAM
Height	1.05mm
Length	2.6mm
Model	SFH 2400
Packaging	Tape & Reel
Width	2mm
Mount Type	Surface
Series	SFH 2400
Short Circuit Current	10μA
Maximum Operating Temperature	100°C
Package Type	Clear Epoxy
Minimum Operating Temperature	-40°C
Polarity	Forward
Dark Current	5nA
Open Circuit Voltage	320V
Number of Pins	3
Typical Fall Time	0.01μs
Wavelength of Peak Sensitivity	850nm
Spectrums Detected	Infrared, Ultraviolet, Visible Light
Breakdown Voltage	50V
Minimum Wavelength Detected	380nm
Maximum Wavelength Detected	1100nm
Angle of Half Sensitivity	±60 °

Key Features

The photodiode is sensitive across infrared, ultraviolet, and visible spectrums.
Peak sensitivity wavelength is 850 nm for optimal detection performance.
Designed with a surface mount clear epoxy package with a compact size of 2.6 mm length, 2 mm width, and 1.05 mm height.
Operates reliably over a temperature range from -40°C to 100°C.
Features fast response with typical rise and fall times of 0.01 µs.
Offers a dark current of 5 nA and a short circuit current of 10 µA.
Breakdown voltage rating is 50 V and open circuit voltage rating is 320 V.
Non-amplified silicon PIN photodiode suitable for various electronic and sensor applications.

Product Description

The ams OSRAM SFH 2400 is a high-performance silicon PIN photodiode designed to detect infrared, ultraviolet, and visible light spectra, with peak sensitivity at 850 nm. It features a compact surface mount package in clear epoxy, measuring 2.6 mm in length, 2 mm in width, and 1.05 mm in height. This photodiode offers a wide operating temperature range from -40°C to 100°C making it suitable for demanding environmental conditions encountered in industrial and automotive applications.

With an angle of half sensitivity of ±60°, the SFH 2400 ensures broad detection coverage. The device exhibits short switching times around 5 ns (typical 0.01 µs rise and fall times) enabling rapid signal processing in sensor systems. The dark current is minimal, rated at 5 nA, and short circuit current is rated at 10 µA, allowing for precise detection performance.

The device is non-amplified and operates with a forward polarity. It is packaged on tape and reel, facilitating automated assembly. It conforms to high quality standards, delivering dependable operation and consistent optical response.

Typical applications for the SFH 2400 photodiode include use in LIDAR systems, automotive pre-crash and adaptive cruise control (ACC) sensors, rain detection sensors and other electronic equipment requiring reliable light detection over a wide spectral range from 380 nm to 1100 nm.

Spectrum detection across infrared, ultraviolet, and visible light regions. Compact surface mount packaging for space-efficient integration. Wide temperature range operation enhancing versatility in harsh conditions. Fast response times suitable for dynamic signal environments.

Robust electrical ratings with 50 V breakdown voltage and 320 V open circuit rating. Delivered on tape and reel, compatible with automated manufacturing. This photodiode meets demanding requirements of industrial, laboratory, automotive, and HVAC sensor applications, making it a versatile component for design engineers.

Explore the broad category of Photodiodes at EnvMart to find related light detection solutions from ams OSRAM and other trusted brands.
