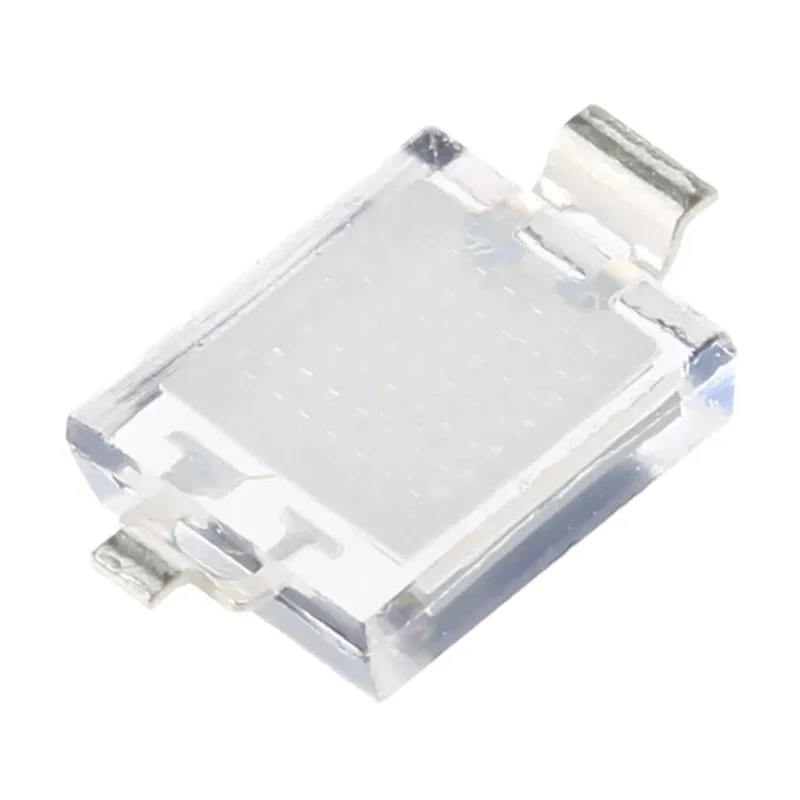

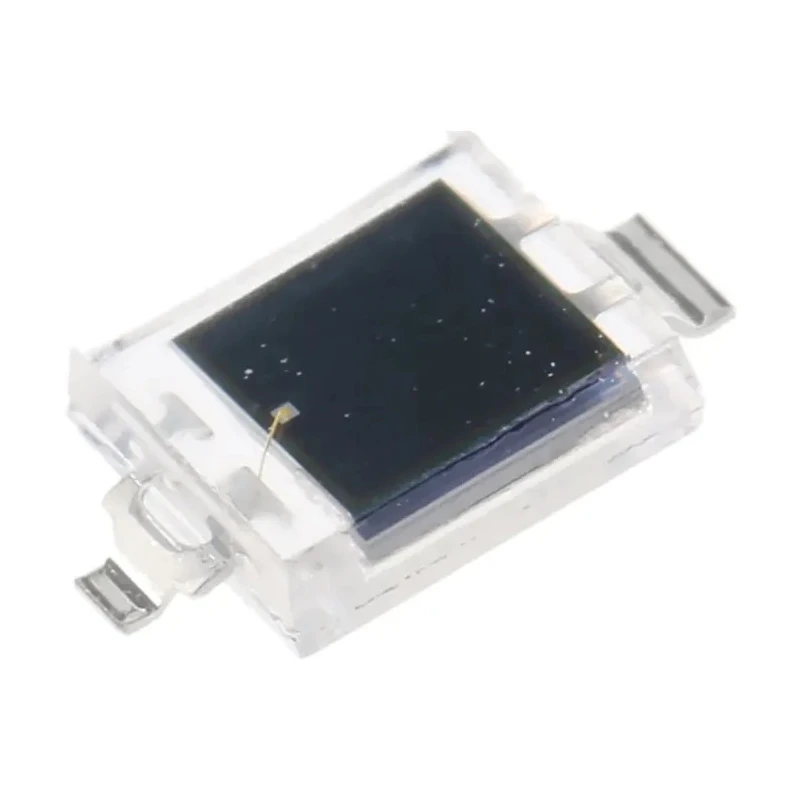

Vishay Infrared, Visible Light Photodiode 65 ° Half Sensitivity, Surface Mount GW Package VBPW34S
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Dimensions | 6.4 x 3.9 x 1.2 mm |
| Height | 1.2mm |
| Length | 4.4mm |
| Model | VBPW34S |
| Packaging | Tape & Reel |
| Width | 3.9mm |
| Mount Type | Surface |
| Short Circuit Current | 50μA |
| Maximum Operating Temperature | 100°C |
| Package Type | GW |
| Minimum Operating Temperature | -40°C |
| Polarity | Forward |
| Dark Current | 2nA |
| Open Circuit Voltage | 350mV |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Fall Time | 80ns |
| Automotive Standard | AEC-Q101 |
| Wavelength of Peak Sensitivity | 940nm |
| Spectrums Detected | Infrared, Visible Light |
| Breakdown Voltage | 60V |
| Minimum Wavelength Detected | 430nm |
| Maximum Wavelength Detected | 1100nm |
| Angle of Half Sensitivity | 65 ° |
| Lead types | gull-wing (GW) and reverse gull-wing (RGW) |
Key Features
- Detects both infrared and visible light spectra.
- Peak sensitivity wavelength at 940nm.
- Compact surface mount GW package with gull-wing leads.
- Fast response times with 80ns typical rise and fall times.
- Wide operational temperature range from -40°C to 100°C.
- High breakdown voltage of 60V ensures durability.
- Low dark current of 2nA and open circuit voltage of 350mV.
- Adheres to RoHS compliance and automotive standard AEC-Q101.
Product Description
Vishay VBPW34S is a silicon PIN photodiode designed for detection of infrared and visible light wavelengths, featuring a 65 ° half sensitivity angle and housed in a surface mount GW (gull-wing) package. This high sensitivity photodiode operates efficiently over a wide spectral range from 430nm to 1100nm, with peak sensitivity centered at 940nm.
The device exhibits fast switching characteristics with typical rise and fall times of 80ns, enabling high-speed applications. It supports operating temperatures from -40°C to 100°C, making it suitable for demanding industrial and automotive environments. Electrical characteristics include an open circuit voltage of 350mV, breakdown voltage of 60V, and minimal dark current at 2nA, ensuring stable and precise light detection under various conditions.
The compact dimensions of 6.4 x 3.9 x 1.2 mm and surface mount gull-wing lead configuration allow easy integration into modern electronic assemblies. Packaging in tape and reel format facilitates high-volume automated production processes commonly used in manufacturing.
This photodiode complies with RoHS standards and meets the automotive qualification AEC-Q101, guaranteeing durability and reliability for automotive and industrial applications. Detects infrared and visible light spectra efficiently.
Peak wavelength sensitivity at 940nm. SMD package with gull-wing and reverse gull-wing lead types. Fast response with 80ns typical rise and fall times. Wide temperature operation range from -40°C to 100°C. Open circuit voltage of 350mV and breakdown voltage of 60V.
Low dark current of 2nA improves signal accuracy. Complies with RoHS and meets AEC-Q101 automotive standards. Dimensions 6.4 x 3.9 x 1.2 mm suit compact device integration. Available in tape and reel packaging for manufacturing efficiency.
This Vishay photodiode is ideal for applications in industrial, automotive, consumer electronics, optical sensing, and other environments where reliable detection of visible and near-infrared light is critical. Browse the Vishay brand product range and related Photodiodes on EnvMart for advanced optoelectronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak sensitivity wavelength of this photodiode is 940nm.
This model operates over a wide temperature range from -40°C to 100°C.
The dimensions of this photodiode are 6.4 x 3.9 x 1.2 mm.
It detects both infrared and visible light spectra, with a detection range from 430nm to 1100nm.
The typical rise and fall times for this model are 80ns.
The breakdown voltage of this photodiode is 60V.
This unit has a low dark current of 2nA.
It is packaged in tape and reel format, which is suitable for high-volume automated production.
This model complies with the automotive standard AEC-Q101.
The photodiode has 2 pins.
This photodiode is available with gull-wing (GW) and reverse gull-wing (RGW) lead types.
The short circuit current rating for this model is 50μA.
