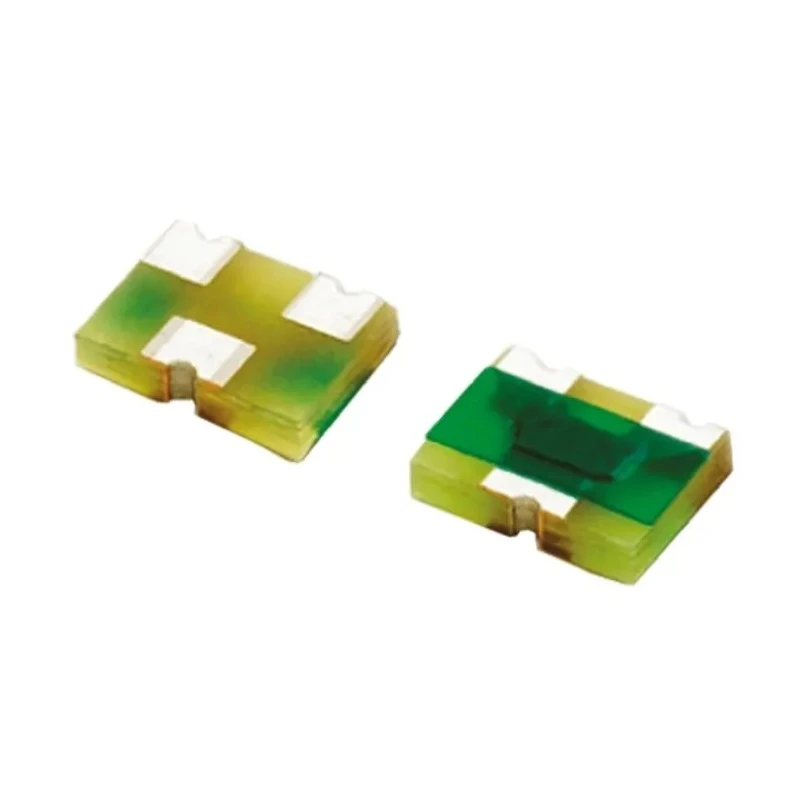

Littelfuse Surface Mount RFI Filter PGB1 Series 24V DC, 0.12μF Capacitance, Solder Pad Termination PGB1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Littelfuse |
| Height | 0.69mm |
| Length | 3mm |
| Model | PGB1 |
| Depth | 2.24mm |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | PGB1 |
| Maximum Operating Temperature | 125°C |
| Resistance | 1mΩ |
| Capacitance | 0.12μF |
| Minimum Operating Temperature | -65°C |
| Leakage Current | 24nA |
| Maximum Voltage | 24V dc |
| Termination Style | Solder Pad |
Key Features
- Compact dimensions of 3 mm length, 2.24 mm depth, and 0.69 mm height enable easy PCB mounting.
- Surface mount with solder pad termination for efficient installation.
- Low leakage current of 24 nA ensures minimal power loss.
- Wide operating temperature range from -65°C to 125°C supports diverse environments.
- Extremely low resistance of 1 mΩ minimizes signal loss.
- RoHS compliant, halogen-free, and lead-free materials for environmental safety.
- Fast response time and bi-directional protection against ESD and EMI disturbances.
- Compatible with automated pick-and-place manufacturing processes.
Product Description
Littelfuse PGB1 Surface Mount RFI Filter with model PGB1 delivers reliable EMI noise suppression in electronic circuits operating at a maximum voltage of 24V DC. The device features a capacitance of 0.12μF and extremely low leakage current of 24 nA, ensuring efficient noise filtering with minimal power loss.
This RFI filter is designed for surface mount applications and uses solder pad termination style, facilitating quick and durable PCB assembly. It measures 3 mm in length, 2.24 mm in depth, and 0.69 mm in height, ideal for compact electronic components and high-density boards.
Engineered for durability, the filter operates effectively across a temperature range from -65°C to 125°C, allowing use in a variety of industrial and commercial environments. Its resistance is exceptionally low at 1 mΩ, reducing signal interference and ensuring circuit integrity.
Constructed with RoHS compliant, halogen-free, and lead-free materials, the Littelfuse PGB1 protects circuits from electromagnetic interference and electrostatic discharge with fast response and bi-directional capabilities. It withstands multiple ESD strikes and is compatible with modern automated pick-and-place manufacturing equipment, enhancing production efficiency and reliability.
Compact PCB mount surface RFI filter in PGB1 series. Capacitance of 0.12μF and low leakage current of 24 nA. Wide -65°C to 125°C operating temperature range. Low resistance of 1 milliohm for superior signal integrity. RoHS compliant, halogen-free, and lead-free for environmental safety.
Fast response and bi-directional ESD protection capabilities. Compatible with tape & reel packaging and solder pad termination.
This surface RFI Filter suits applications across industrial, electronic manufacturing, telecommunications, and power electronics sectors where EMI noise reduction and circuit protection are critical. They optimize reliability and durability in complex electrical and electronic assemblies.
Explore the extensive range of Littelfuse EMI and power line filters on EnvMart for superior electromagnetic interference solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 0.12μF, which aids in effective EMI noise suppression in electronic circuits.
This unit can operate at a maximum temperature of 125°C, making it suitable for various industrial environments.
The leakage current for this model is 24 nA, ensuring minimal power loss during operation.
It has compact dimensions of 3 mm in length, 2.24 mm in depth, and 0.69 mm in height, facilitating easy PCB mounting.
The resistance of the Littelfuse PGB1 filter is extremely low at 1 mΩ, which helps minimize signal loss.
This unit features a solder pad termination style, which allows for efficient installation on PCBs.
The minimum operating temperature for this model is -65°C, enabling its use in a wide range of environments.
Yes, it is RoHS compliant, halogen-free, and lead-free, ensuring it meets environmental safety standards.
The PGB1 series is packaged in tape and reel format, which is compatible with automated pick-and-place manufacturing processes.
This model has a maximum voltage rating of 24V DC, suitable for various electronic applications.
It is designed for applications in industrial, electronic manufacturing, telecommunications, and power electronics where EMI noise reduction is critical.
This model provides fast response and bi-directional protection against electrostatic discharge (ESD) and electromagnetic interference (EMI).
