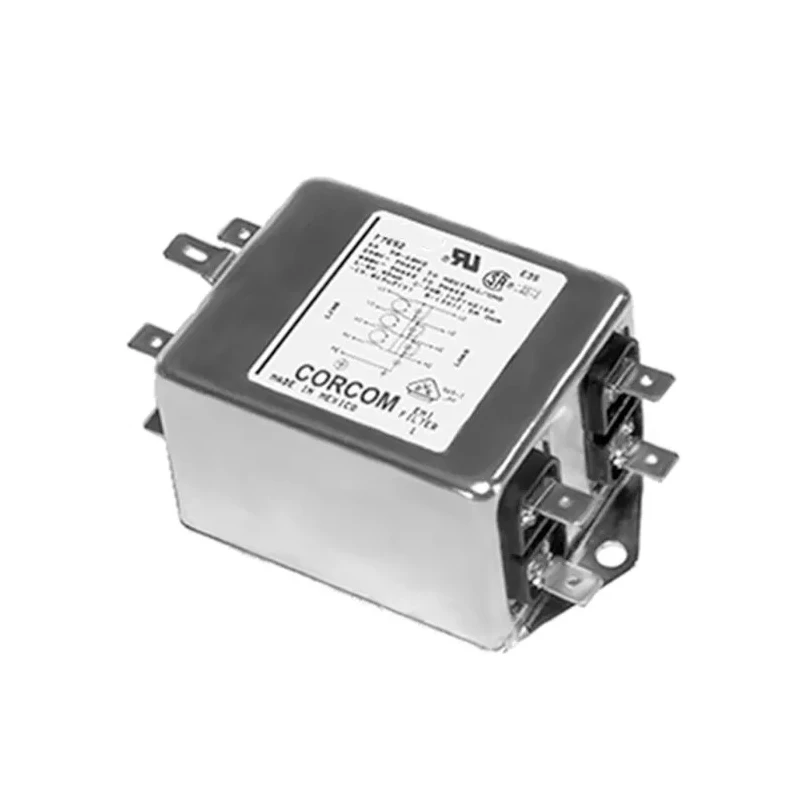

TE Connectivity Corcom AYO 3 A 250V AC 50Hz 60Hz Flange RFI Filter Spade 3 Phase 6609066-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Corcom AYO 3 A 250V AC 50Hz 60Hz Flange RFI Filter Spade 3 Phase 6609066-1

Name: TE Connectivity Corcom AYO 3 A 250V AC 50Hz 60Hz Flange RFI Filter Spade 3 Phase 6609066-1
Brand: TE Connectivity
SKU: 384717
Price: 41.01 USD
Availability: InStock



Category RFI Filter Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Height	52.5mm
Length	85.6mm
Depth	38.7mm
Mount Type	Flange
Operating Frequency	50, 60Hz
Series	Corcom AYO
Maximum Operating Temperature	40°C
Number Of Stages	1
Capacitance	100nF
Minimum Operating Temperature	-10°C
Maximum Current	3A
Number of Phases	3
Leakage Current	3mA
Maximum Voltage	250V ac
Inductance	1mH
Termination Style	Spade

Key Features

Designed for 3-phase, four wire, WYE applications with single-stage filtration.
Features flange mount type with spade terminal terminations for easy installation.
Compact dimensions measuring 85.6mm length, 52.5mm height, and 38.7mm depth.
Capacitance of 100nF and inductance of 1mH provide effective attenuation starting at 100kHz.
Leakage current limited to 3mA ensures low interference with connected equipment.
Suitable for use in gaming machines, vending machines, food service equipment, and small machine tools.
Meets safety and quality standards CSA 22.2 No. 0/0.4/8, UL 1283, and VDE 0565-3.
Operating temperature range from -10°C to 40°C.

Product Description

TE Connectivity 6609066-1 is a Corcom AYO series compact, flange mounted RFI filter designed for industrial and commercial EMI suppression in 3-phase WYE electrical systems operating at 3 amps and 250 volts AC. The filter supports operating frequencies of 50Hz and 60Hz, making it suitable for power line noise reduction in various applications.

This single-stage RFI filter provides attenuation beginning at 100kHz while offering low leakage current of 3mA to minimize interference on the power lines. The filter is constructed with a capacitance of 100nF and inductance of 1mH, combined to ensure effective EMI filtering results. Its flange mounting and spade terminal configurations facilitate straightforward installation and reliable connections.

Measuring 85.6mm in length, 52.5mm in height, and 38.7mm in depth, this compact filter is ideal for space-constrained installations. It is suitable for reducing electromagnetic interference in gaming machines, vending machines, food service equipment, and various small machine tools, enhancing the quality and safety of connected devices.

The filter complies with CSA 22.2 No. 0/0.4/8, UL 1283, and VDE 0565-3 safety and approval standards, underscoring quality assurance and global industry acceptance. It operates reliably within a temperature range of -10°C to 40°C.

Designed for 3-phase, four wire, WYE applications with single-stage filtration. Flange mounting and spade terminal terminations for secure connections. Compact design for easy integration in machinery and equipment. Low leakage current of 3mA minimizes interference risks.

Meets international safety standards UL, CSA, and VDE approvals. Effective EMI reduction beginning at 100kHz frequency. Operating temperature range suitable for typical industrial environments. Corcom AYO series quality and reliability in an EMI/RFI Filter.

This TE Connectivity Corcom AYO filter is ideal for industries including manufacturing, HVAC systems, food service equipment, and gaming machine design. It provides reliable EMI suppression helping comply with electromagnetic compatibility requirements.
