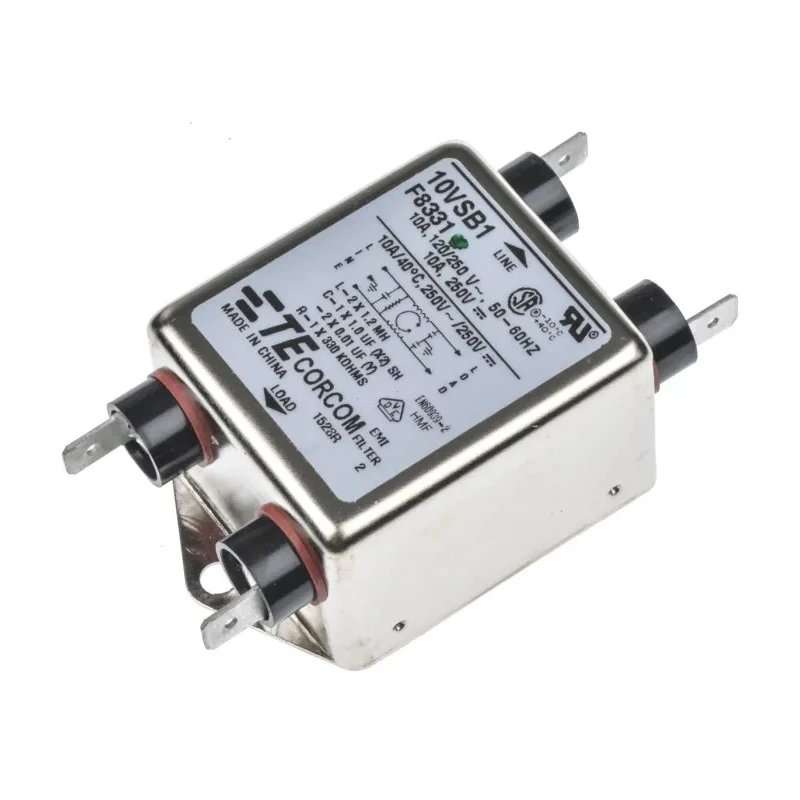

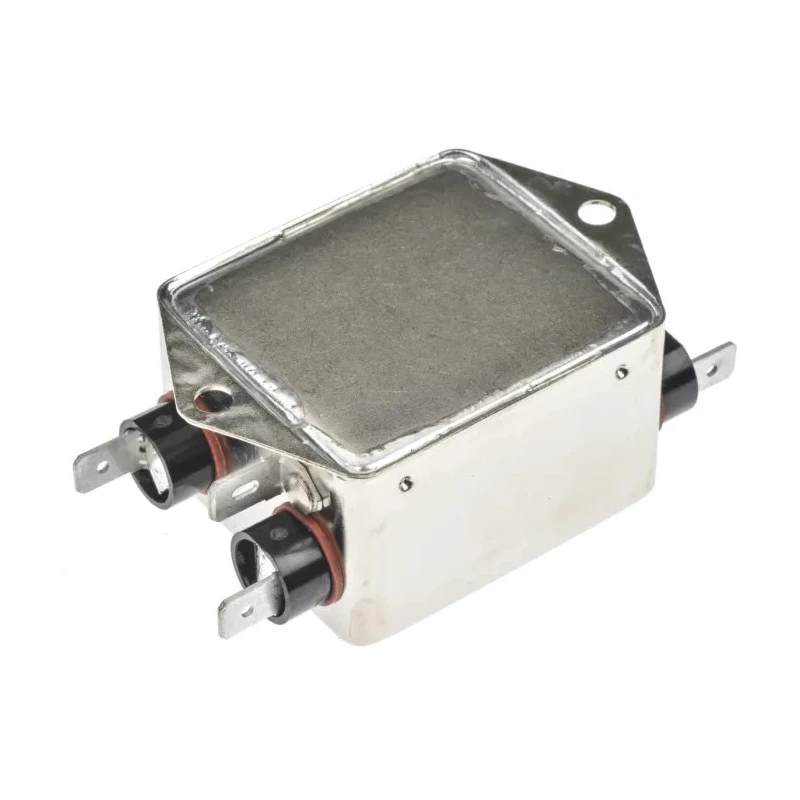

TE Connectivity Corcom SB 10A 250V AC 50Hz, 60Hz Flange Mount RFI Filter Fast-On Termination 1-1609034-5

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Corcom SB 10A 250V AC 50Hz, 60Hz Flange Mount RFI Filter Fast-On Termination 1-1609034-5

Name: TE Connectivity Corcom SB 10A 250V AC 50Hz, 60Hz Flange Mount RFI Filter Fast-On Termination 1-1609034-5
Brand: TE Connectivity
SKU: 384718
Price: 42.47 USD
Availability: InStock



Category RFI Filter Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Height	46.2mm
Length	85.3mm
Depth	32.5mm
Mount Type	Flange
Operating Frequency	50, 60Hz
Series	Corcom SB
Maximum Operating Temperature	40°C
Number Of Stages	1
Capacitance	19.9nF
Minimum Operating Temperature	-10°C
Maximum Current	10A
Number of Phases	1
Leakage Current	1.25mA
Maximum Voltage	250V ac
Inductance	1.1mH
Standards/Approvals	UL1283
Termination Style	Fast-On

Key Features

Designed to reduce radio frequency interference in electrical equipment.
Compact flange mount form factor with fast-on termination.
Single phase, single stage Corcom SB series high-performance filter.
Operates reliably from -10°C to 40°C ambient temperature.
Low leakage current of 1.25mA for safety compliance.
Measures 85.3mm length, 46.2mm height, and 32.5mm depth.
Capacitance of 19.9nF and inductance of 1.1mH for effective filtering.
Meets UL1283 safety standard approvals.

Product Description

TE Connectivity 1-1609034-5 Corcom SB series is a flange mount RFI Filter designed for single-phase AC line filtering at 250V and 10A maximum current. It supports operating frequencies of 50Hz and 60Hz and provides superior EMI suppression to improve equipment performance and reduce electromagnetic interference in industrial, laboratory, and commercial applications.

The single-stage Corcom SB filter features fast-on terminations for easy and secure connection. Its compact dimensions (85.3mm L x 46.2mm H x 32.5mm D) allow use in confined spaces and integration into a wide variety of products.

Operating temperature range from -10°C to 40°C ensures reliable function under typical environmental conditions. The filter’s low leakage current of 1.25mA supports safety compliance requirements. Electrical characteristics include 19.9nF capacitance and 1.1mH inductance optimized for RFI attenuation.

Fully compliant with UL1283 standards, the Corcom SB series filters are suited for applications including computing peripherals, home appliances, exercise equipment, gaming machines, medical devices, televisions, and audio/video equipment.

Designed to reduce radio frequency interference in electrical equipment. Compact flange mount form factor with fast-on termination. Single phase, single stage Corcom SB series high-performance filter. Operates reliably from -10°C to 40°C ambient temperature.

Low leakage current of 1.25mA for safety compliance. Measures 85.3mm length, 46.2mm height, and 32.5mm depth. Capacitance of 19.9nF and inductance of 1.1mH for effective filtering. Meets UL1283 safety standard approvals.

Ideal for computing, medical equipment, home appliances, and audio/video devices.

Choose TE Connectivity Corcom SB filters for dependable EMI/RFI suppression in demanding industrial, laboratory, HVAC, manufacturing, agricultural, and commercial environments. Explore related Power Line Filters and EMI Filters in EnvMart's extensive electronics components catalog.
