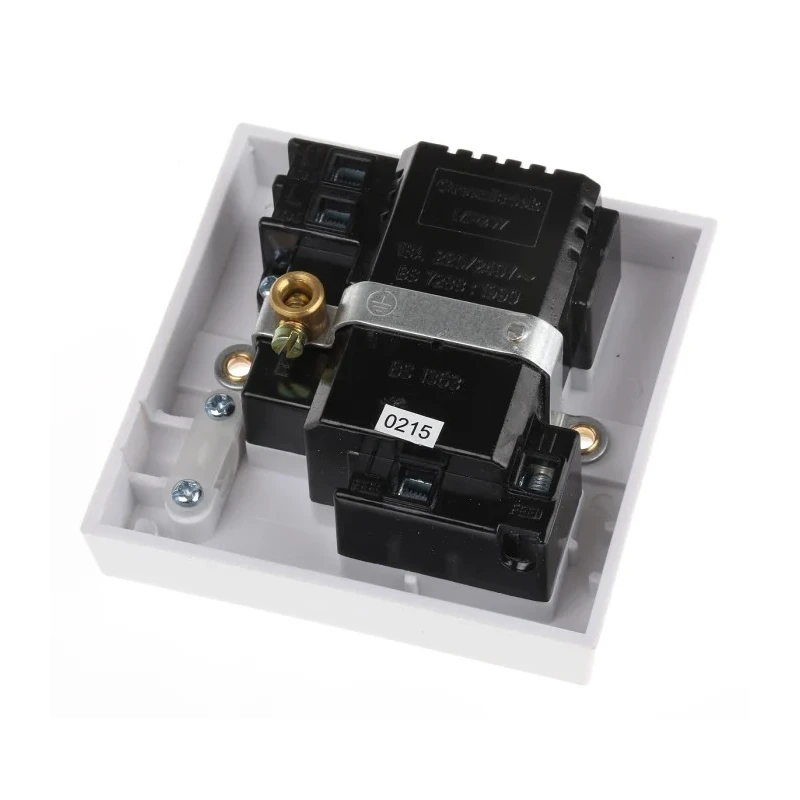

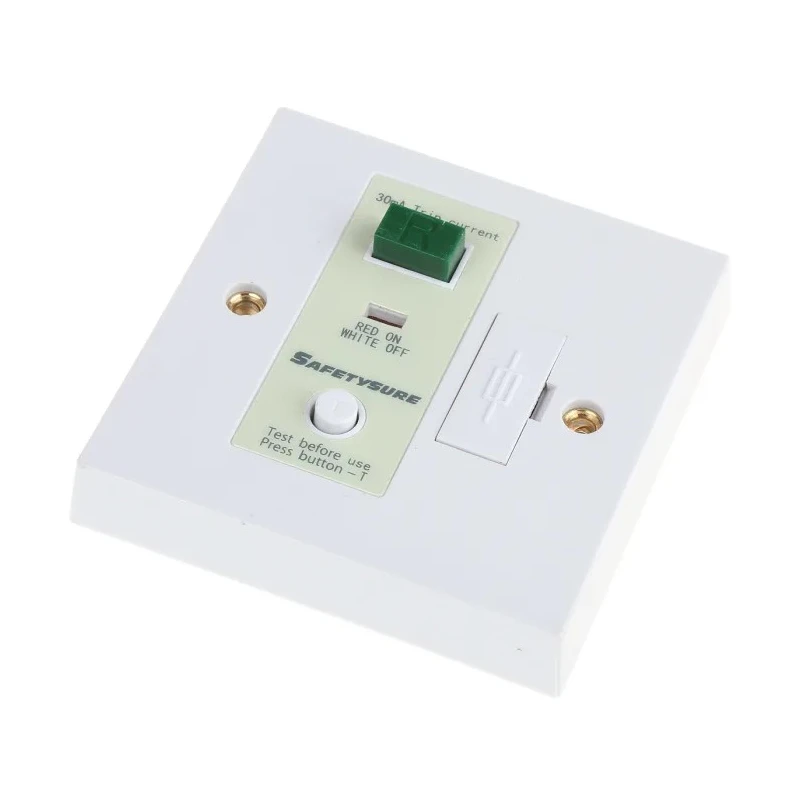

RS PRO 13A Flush Mounted Fused Spur with Passive RCD 230V AC BS7288 BS7288

RS PRO BS7288 is a 13 amp flush mounted fused spur with passive residual current device rating at 230 volts AC, designed to provide enhanced electrical protection and safety. This unit is ideal for installation in homes and commercial properties to protect appliances such as washing machines and dishwashers that require an independent fused connection.

The fused spur is manufactured for flush mounting directly into walls, providing a neat finish and ease of detection. It includes a mechanical latching mechanism which removes the need for resetting after power interruptions, contributing to user convenience and safety.

Equipped with a test button and a color-coded display, it allows easy and reliable verification of its operational status. The device complies with BS7288 and BS1363 fuse standards, ensuring compliance with UK safety regulations.

With dimensions of 86.5 mm height, 86.5 mm width, and 46 mm depth, it fits standard wall boxes and requires a minimum box depth of 46 mm. The unit features two poles, an earth terminal, and a trip current of 30 mA with a trip speed of 40 ms, providing rapid disconnection in the event of an electrical hazard.

The white colored fused spur integrates seamlessly into residential interiors and supports passive RCD functionality, ensuring safety without complex reset mechanisms. It is manufactured in China under the RS PRO brand, reflecting trusted quality.

This fused spur finds applications in industrial, commercial, and residential electrical installations where safety and compliance are critical. It is especially suitable for use with electrical appliances requiring dedicated fused connections to prevent overload and electrical faults.

Flush mount style for direct wall installation. 13 amp current rating for domestic appliance protection. Passive RCD design for automatic safety without resets. Mechanical latch maintains position during power loss. Test button and color-coded display for easy safety checks.

Conforms to BS7288 and BS1363 fuse standards. Dimensions of 86.5 mm height, width and 46 mm depth. Suitable for applications requiring 230V AC connection. Explore more electrical protection and distribution products under RS PRO and in the Fused Spur category at EnvMart.
