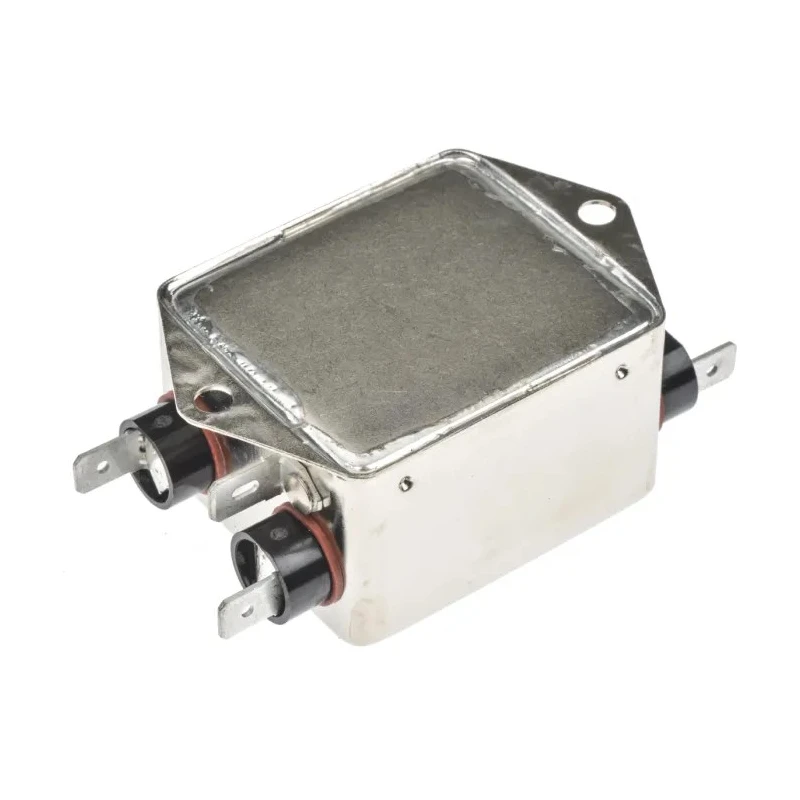

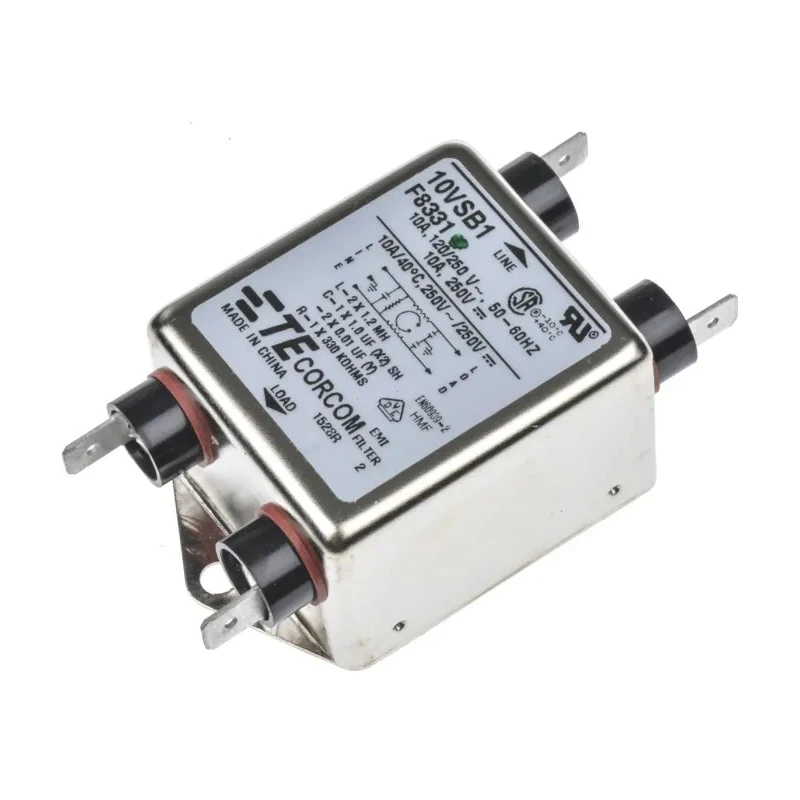

TE Connectivity Corcom SB High Performance Flange RFI Filter 10A 250V AC 50Hz/60Hz Fast-On 1-1609034-5

TE Connectivity 1-1609034-5 Corcom SB series flange RFI filter is a high performance EMI suppression device rated for a maximum current of 10A and maximum operating voltage of 250V AC, operating at 50Hz and 60Hz frequencies. This fast-on terminated single phase RFI filter is designed to provide superior wide band radio frequency interference suppression and EMI protection in various industrial, commercial, and residential electrical systems.

The compact flange mounting design, with dimensions 85.3mm (L) x 46.2mm (H) x 32.5mm (D), allows convenient integration into equipment requiring space-efficient EMI filtering solutions. The filter features a single stage construction ensuring effective noise attenuation, with a capacitance of 19.9nF and inductance of 1.1mH to meet demanding filtering requirements. Its low leakage current of 1.25mA supports safe operation with sensitive electronic applications.

Operating reliably within a temperature range from -10°C to 40°C, the Corcom SB series filters are suitable for diverse use cases including computing equipment, home appliances, medical machines, gaming devices, audio/video systems, and telecommunications hardware. The product is UL1283 recognized, signifying compliance with stringent safety and performance benchmarks.

This RFI filter is part of the acclaimed Corcom SB series, which delivers enhanced filtering performance compared to earlier models. Its flange mount and fast-on terminals simplify installation and maintenance in single phase power line filtering applications.

Compact and efficient wide band RFI suppression device. Designed for single phase power lines with 10A max current capability. Flange mount and fast-on termination style for easy fitting. Low leakage current supports sensitive equipment operations.

UL1283 safety approved for EMI/RFI Filtering applications. Robust performance across industrial, HVAC, medical, and consumer systems. Operates efficiently in temperatures from -10°C to 40°C. Corcom SB series with enhanced filtration versus B series filters.

For professionals and engineers seeking reliable EMI/RFI power line filters, TE Connectivity 's Corcom SB 1-1609034-5 model represents a trusted choice combining compact form factor, certified safety, and effective interference suppression. Explore EnvMart for additional electronic components and TE Connectivity products to complete your design and manufacturing needs.
