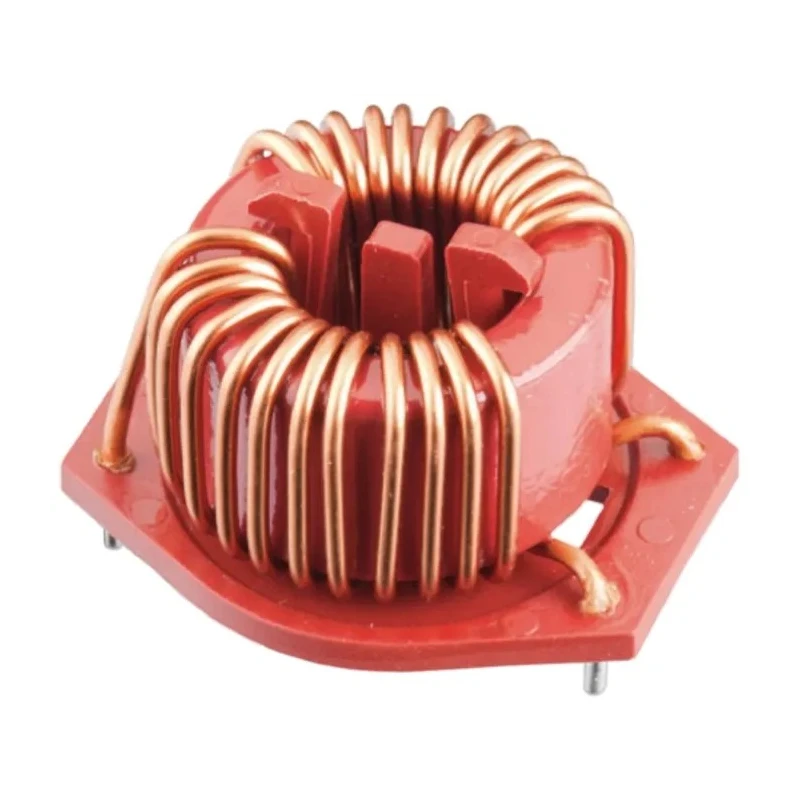

Wurth Elektronik Surface Mount Common Mode Choke WE-CMBH , Ferrite Core, 2.2 mH ±30% Inductance, 6 A Current 744834622

Wurth Elektronik 744834622 Surface Mount Common Mode Choke (WE-CMBH series) is a moulded passive component featuring a ferrite core designed for effective EMI suppression and noise filtering in power electronics systems. This choke offers an inductance of 2.2 mH with ±30% tolerance and supports maximum DC current of 6 A, allowing it to handle substantial current loads while maintaining performance.

The WE-CMBH series is characterized by its horizontal design and unshielded construction which provides low capacitance winding style to deliver excellent broadband screening and suppression at low frequency ranges. It is commonly used in applications such as power line in- and output filters, radio interference suppression in motors, and general common mode noise reduction.

The component comes in a surface mount package with dimensions 32.5 mm length, 22 mm height, and 28 mm depth, featuring 4 pins for easy PCB mounting and integration. Its operating temperature range from -40°C up to +125°C makes it suitable for harsh industrial environments. The choke is RoHS and REACH compliant, adhering to IEC 61249-2-21 standards, ensuring environmental safety and quality consistency.

Manufactured in China and packaged in trays, the WE-CMBH 744834622 is optimized for automated insertion processes, supporting manufacturing efficiency. It is an essential component for designers and engineers tasked with managing electromagnetic interference and ensuring power quality in electronic circuits.

Features a ferrite core with 2.2 mH inductance and a tolerance of ±30%. Supports a maximum DC current of 6 A ensuring robustness in demanding environments. Constructed with a moulded design for durability and reliable performance.

Operates within a temperature range of -40°C to +125°C suitable for industrial applications. Compact surface mount package dimensions of 32.5 mm length, 22 mm height, and 28 mm depth. Complies with RoHS, REACH, and IEC 61249-2-21 standards to ensure environmental and quality conformity.

Features 4 pins with unshielded construction providing broadband screening capabilities. Ideal for power line input/output filtering and common mode noise suppression in motors. Manufactured in China with packaging supplied in trays for assembly efficiency.

This product is suitable for a wide range of industrial, manufacturing, and electronic applications, including power electronics, noise suppression in motors, and EMI filtering in power lines. For more surface mount inductors and electronic components, browse the Electronics & Electricals category on EnvMart.
